Classic Pontoon Console | 3D Builder Package

Carbon Fiber Package Includes:

• Console Base
• Vinyl-wrapped access panel
• Carbon Fiber Deluxe Comfort Wheel
• Carbon Fiber Accent Panel

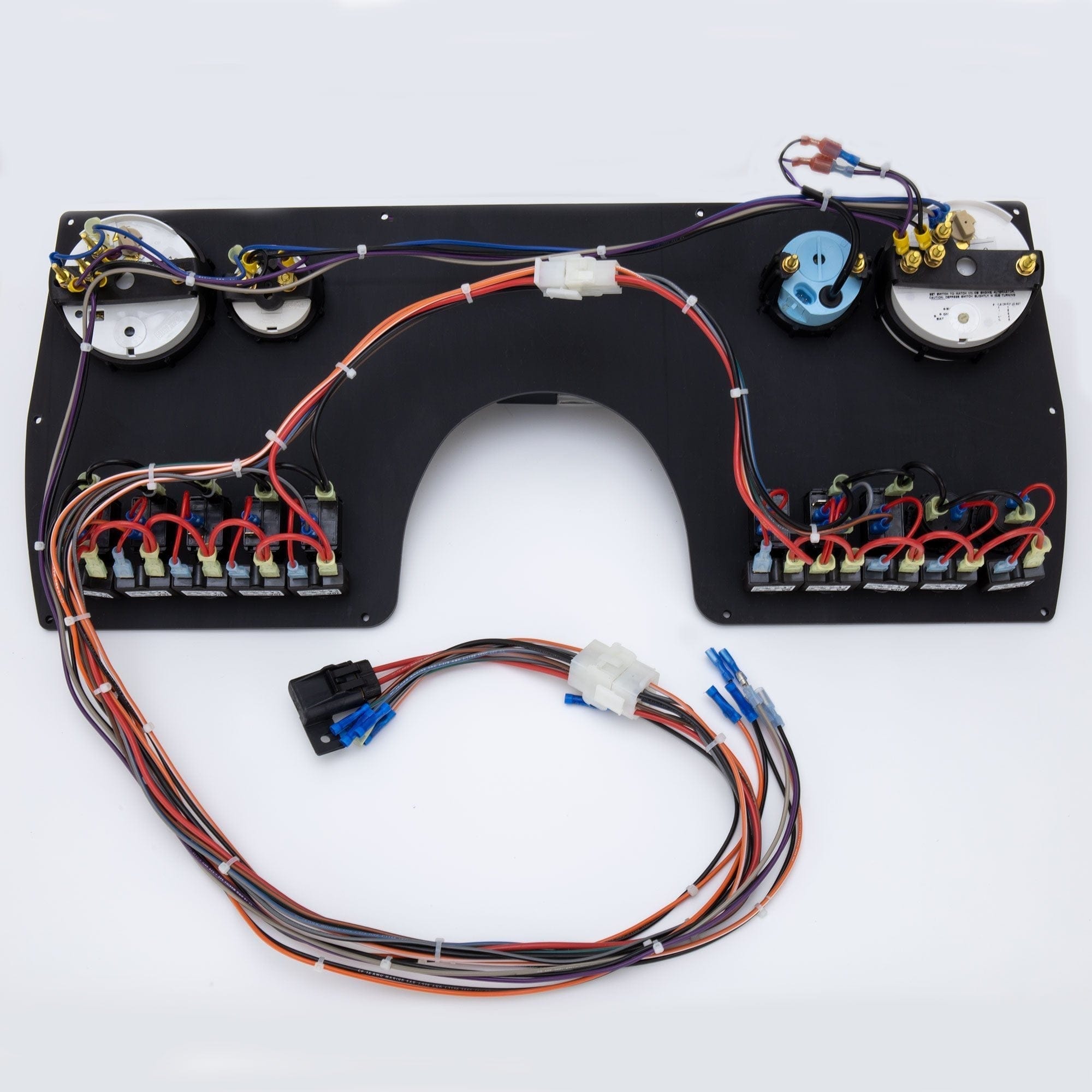

• Fully wired 8 switch panel with two USB ports and individual circuit breaker
• Fully wired Tachometer, GPS speedo, Depth Sounder, and Volt Meter
• Cut out template for easy install

Burl Wood Package Includes:

• Console Base
• Vinyl-wrapped access panel
• Burl Wood Deluxe Comfort Wheel
• Burl Wood Accent Panel
• Fully wired 8 switch panel with two USB ports and individual circuit breaker
• Fully wired Tachometer, GPS speedo, Depth Sounder, and Volt Meter
• Cut out template for easy install

Black Steering Wheel Package Includes:

• Console Base
• Vinyl-wrapped access panel
• Black Steering Wheel
• No switch and gauge panel included


Want to customize your console further? Shop our Pontoon Boat Consoles Parts Collection.

Dimensions:

Console

• 27" Width
• 33" Height
• 15" Depth
• Access Panel 24" x 10"

Removable access panel under dash allows you to bolt down top after you have installed all your steering and electrical items

Instructions

1. With the screws included, mount the Pontoon Boat Console to your Pontoon Deck
2. Once the Pontoon Console is attached to the floor of the boat, take the vinyl-wrapped access panel and attach the four (4) screws to the corner of the console opening
3. This will cover up the opening to give you a finished looking Console

Gauge Panel Instructions

Download Assembly PDF
