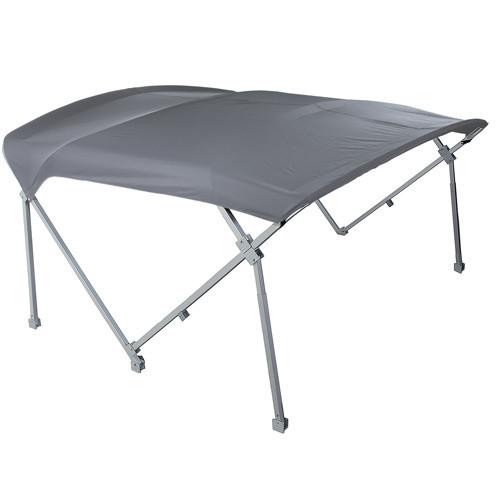

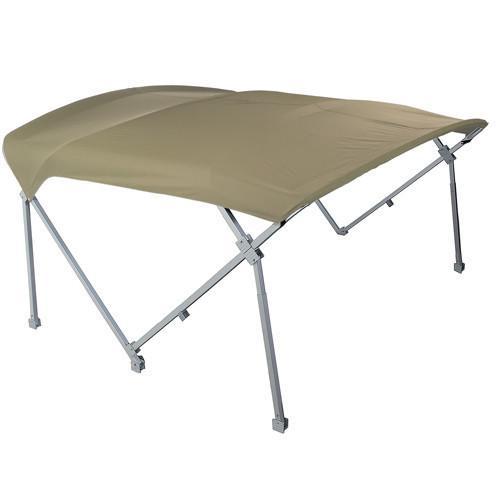

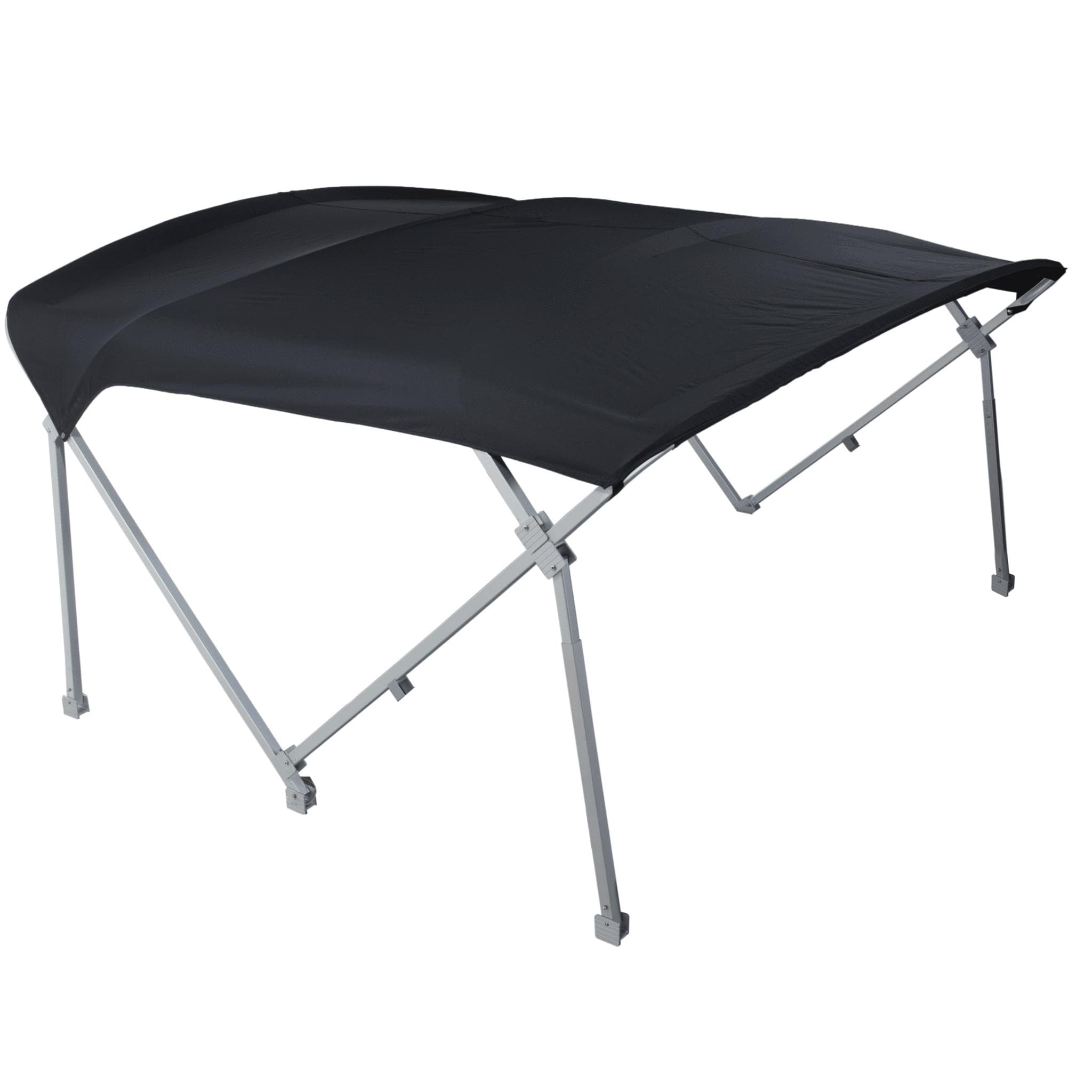

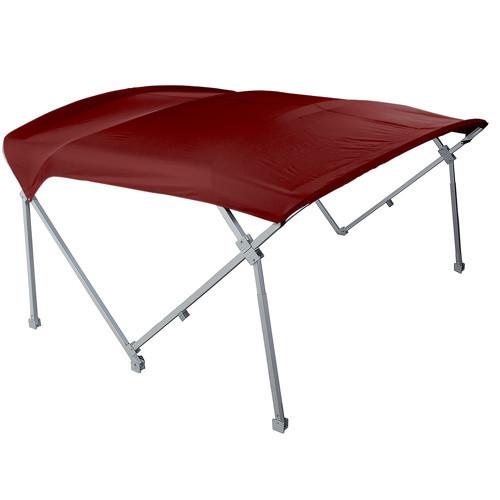

Heavy Duty Pontoon Boat Tops (8'W x 8' L Pontoon Bimini with Boot)
8' W x 8' L pontoon canopy top package complete w/ frame, fabric and boot.
8' x 8' heavy duty pontoon boat bimini top package .

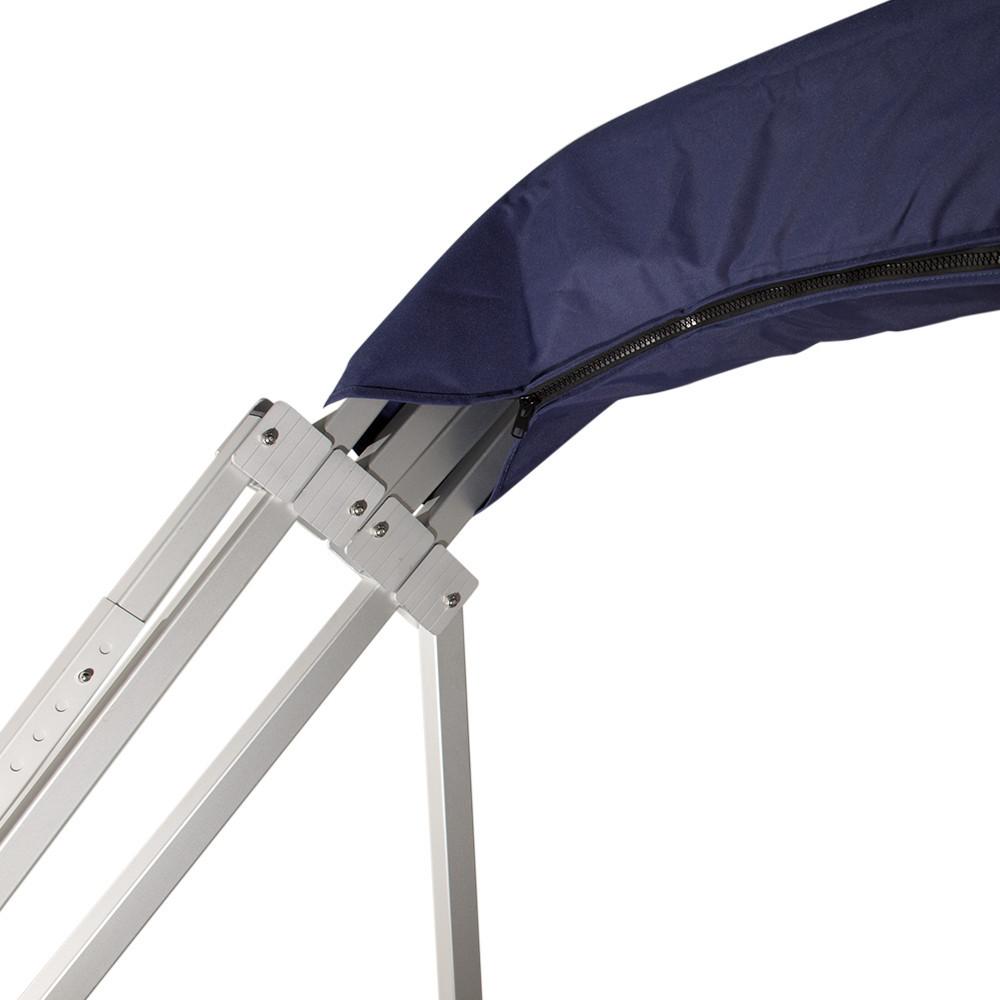

Pontoon bimini top package includes 1-1/4" framework w/ adjustable front struts, mounting hardware, wiring, zip on premium solution dyed polyester fabric and storage boot.

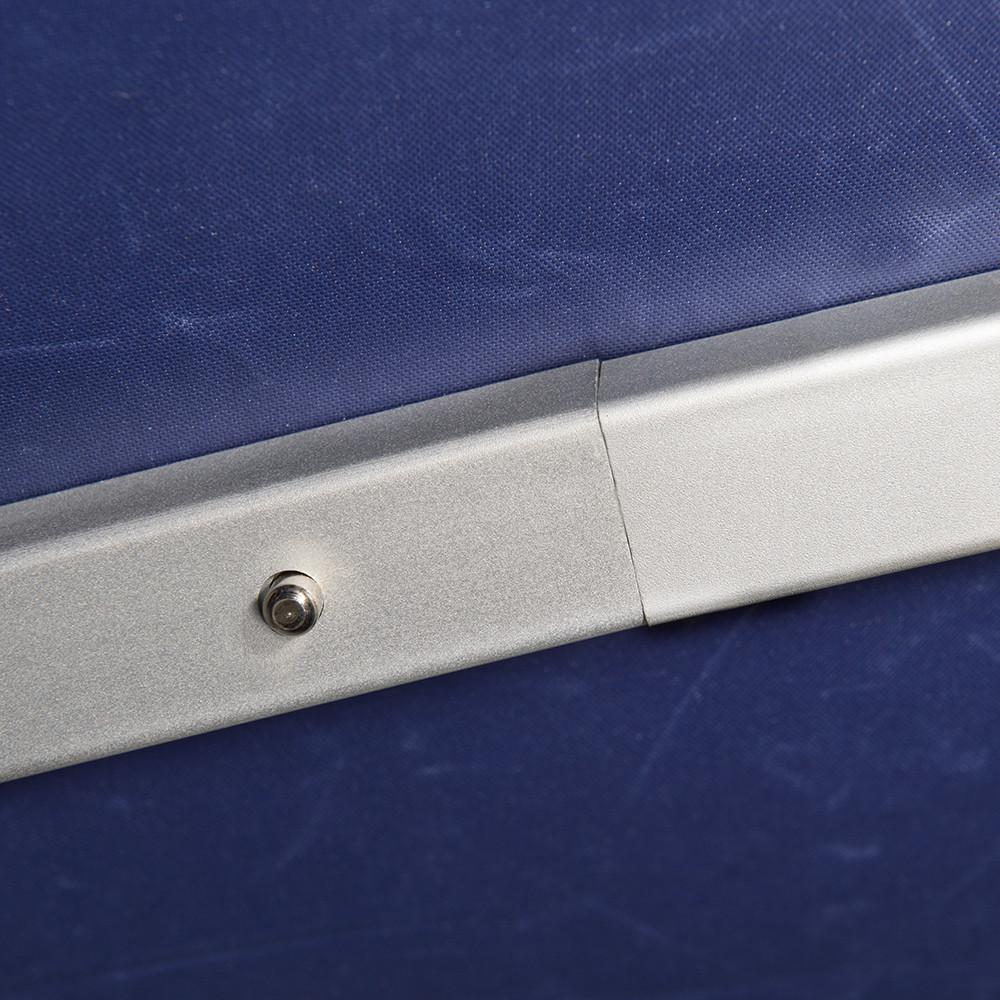

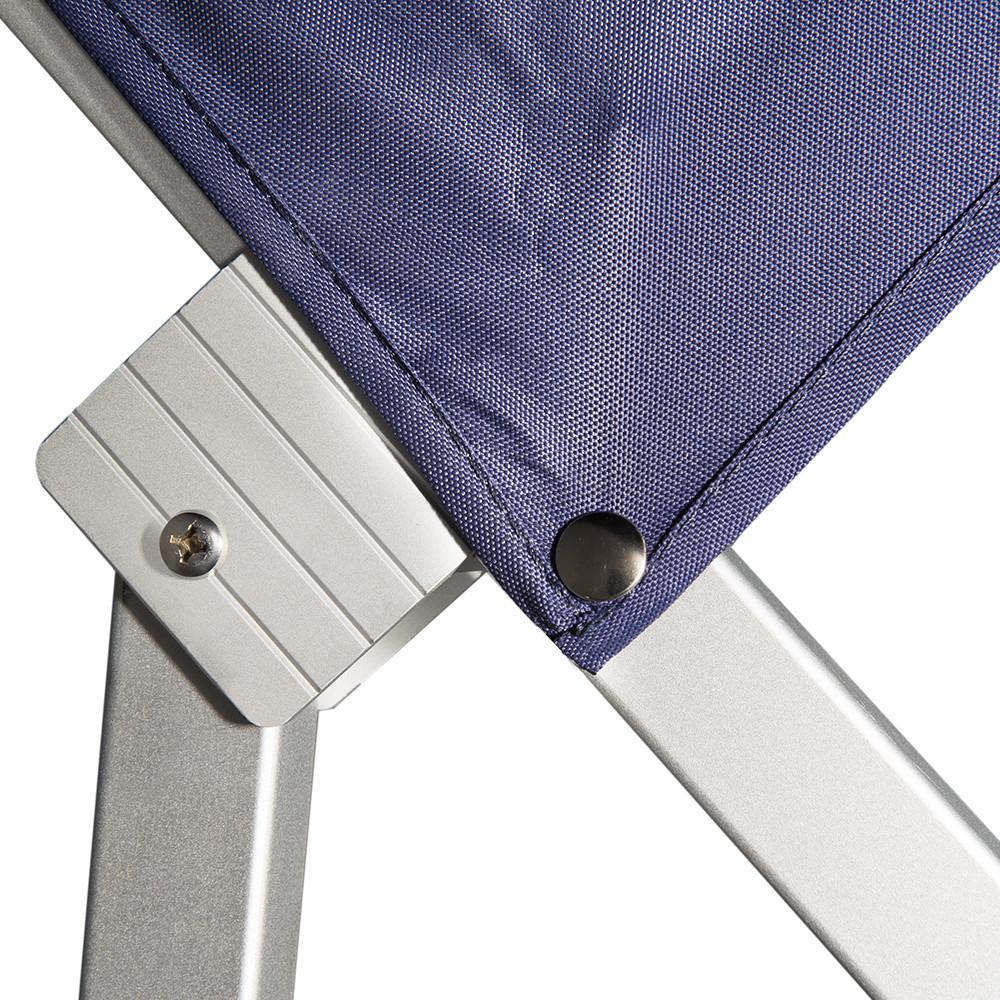

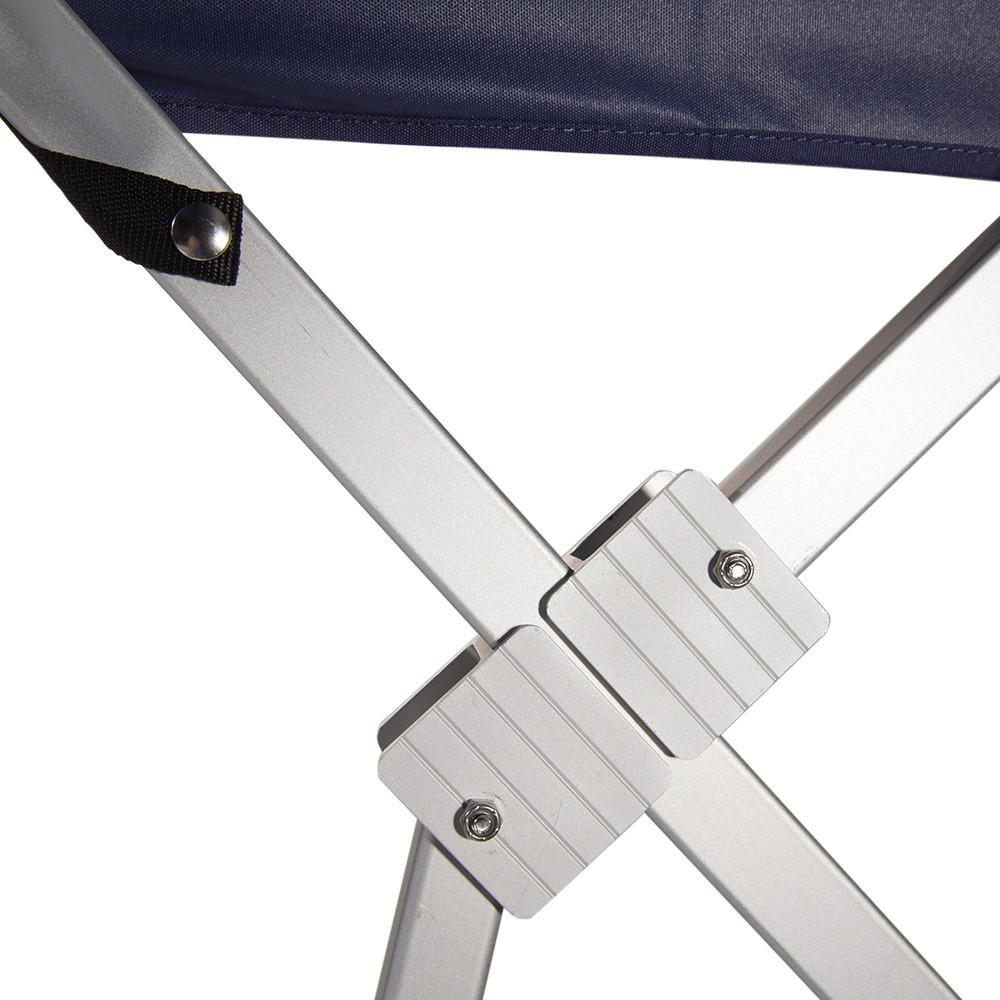

- Easy to assembly pontoon boat bimini frame snaps together with stainless steel snap buttons.

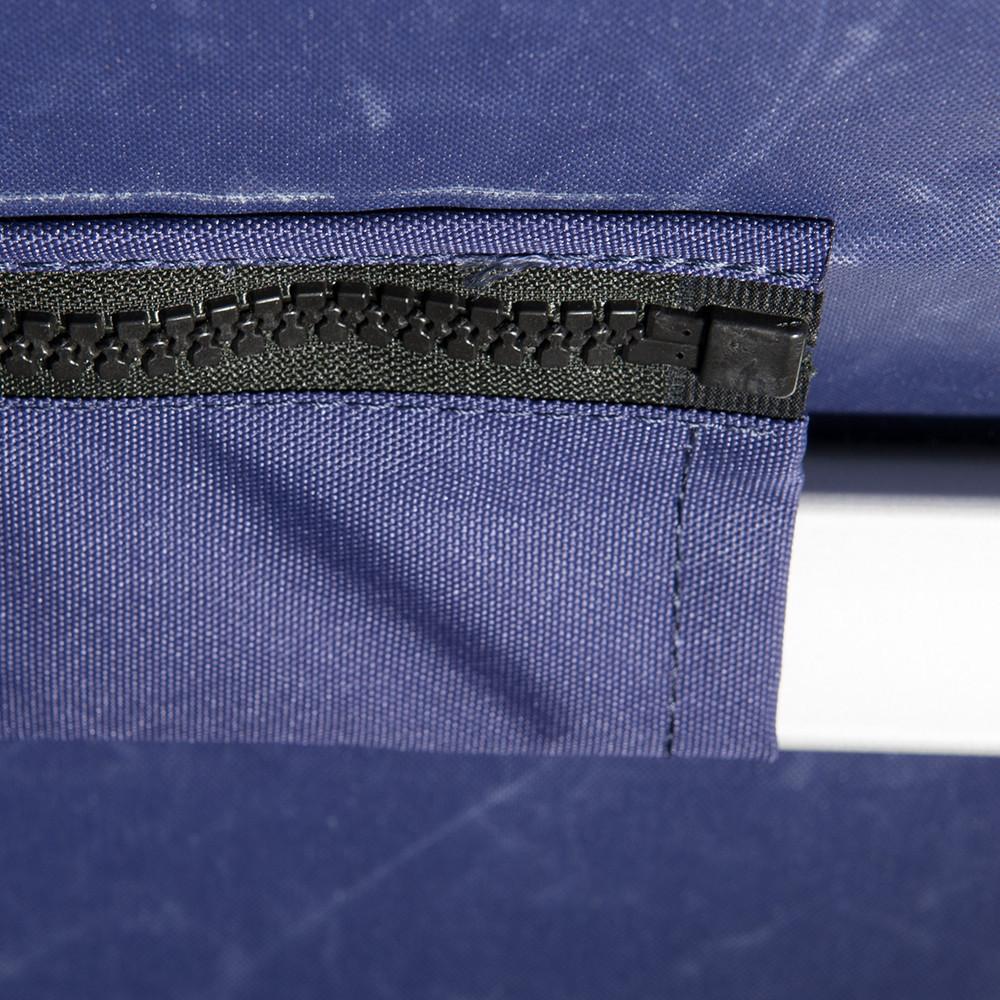

- Zippered pockets allow you to quickly install your pontoon boat canopy top fabric.

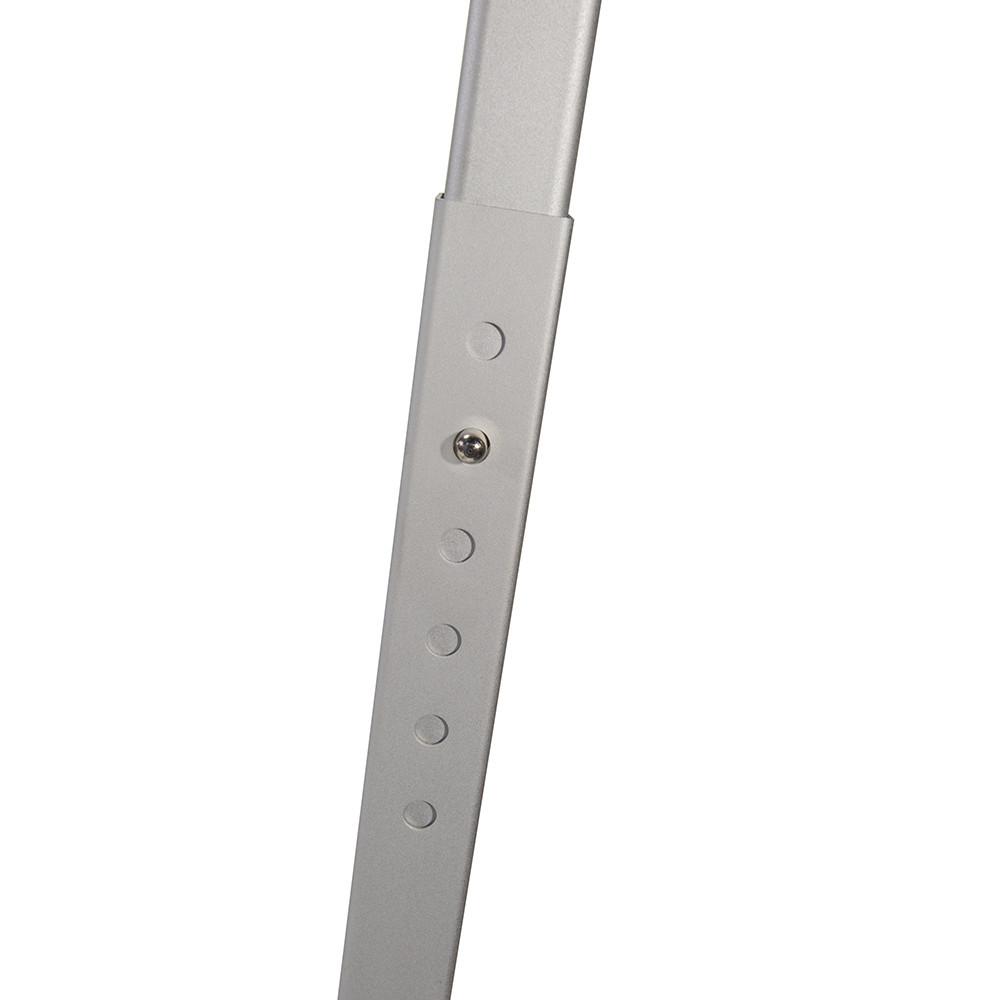

- Adjustable front struts replace straps for more secure mounting.

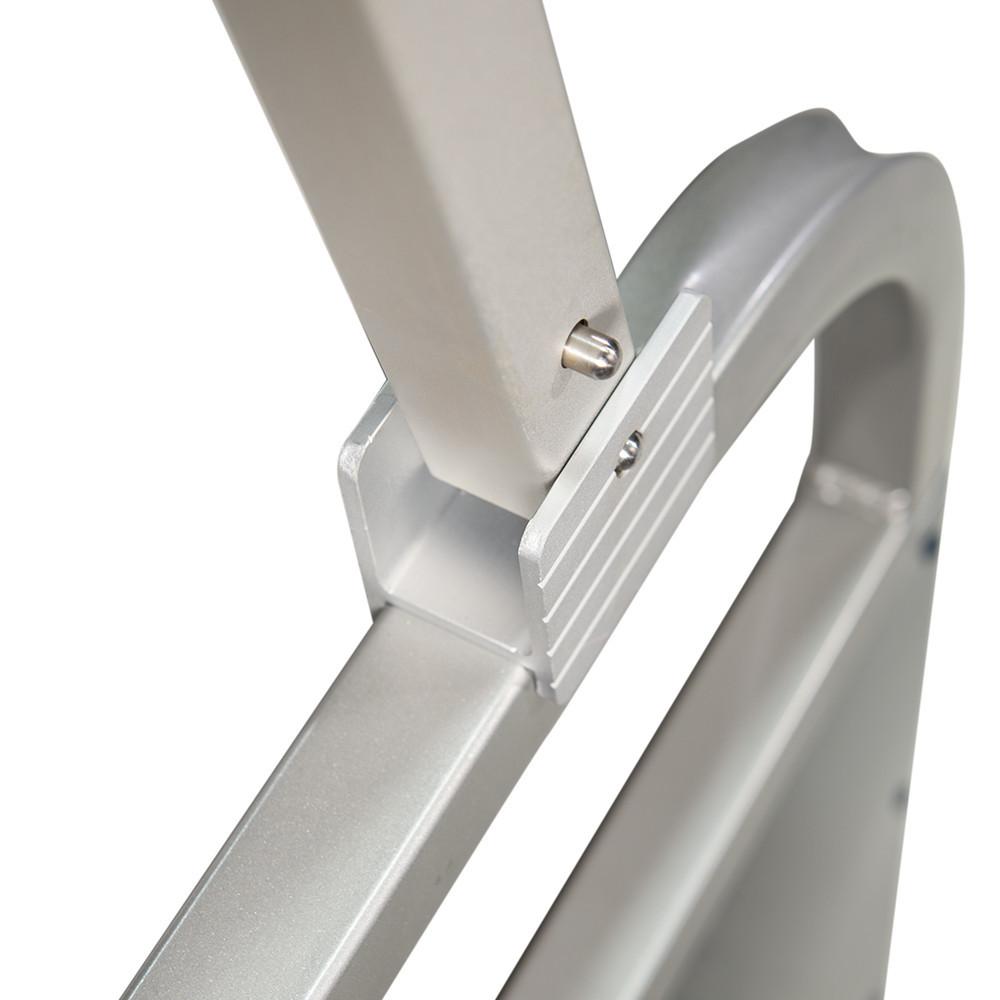

- Stainless mounting bolts are included to secure your pontoon frame's brackets to your railing.

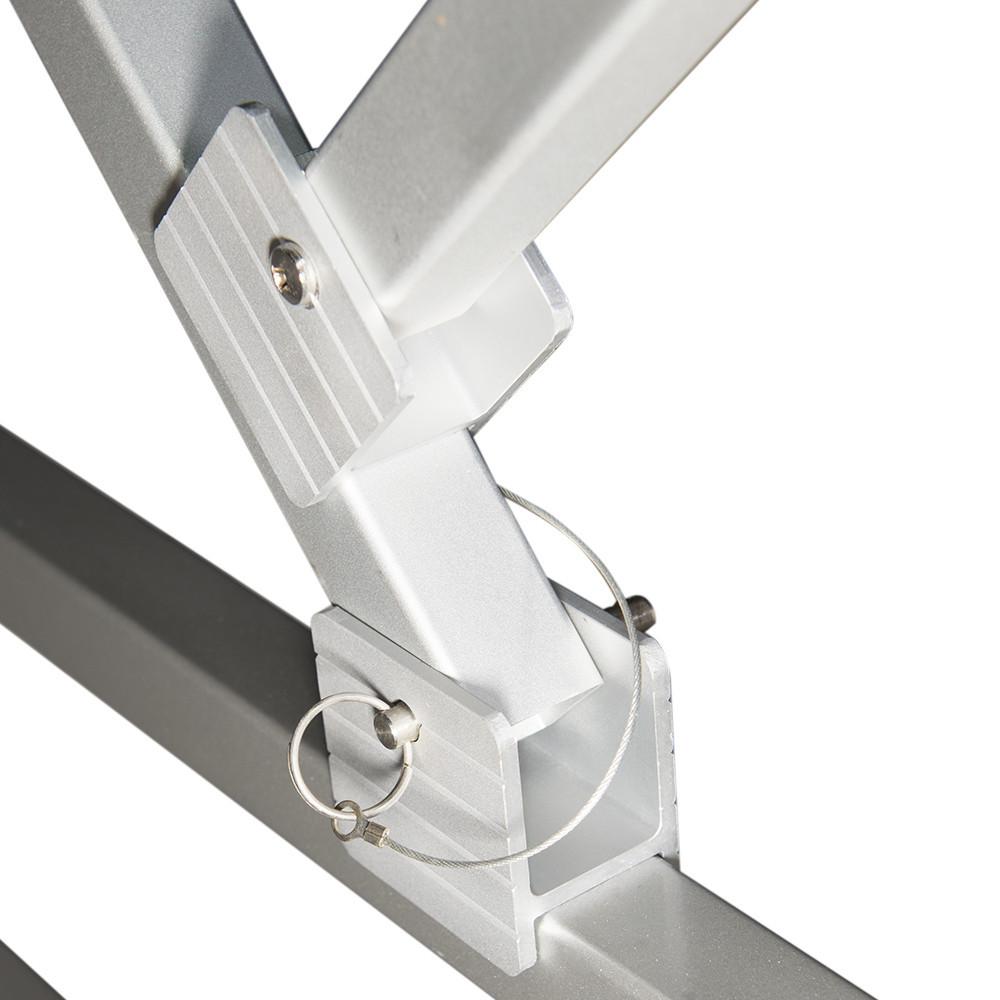

- Stainless push pins attach framework to your pontoon boat quickly and easily.
- Framework is designed to fit 8' wide pontoon boats with railing between 88" to 96" wide.
- Standing height in center of open canopy top is approximately 75".
QUESTIONS & ANSWERSAsk a Question
Do you sell a double Bimini?
No. But you can place two of the Heavy Duty Pontoon Boat Tops together as long as you have the available space that will work for you.
I have a 20ft. smokercraft 'sunsport', what size bimini top would I need?
Since our products are not Pontoon Boat specific, we require measurements that we can compare so we can find you the best fitting Pontoon BiminI Boat Top.
What is the height of the open canopy from the mounting bracker to the top of canopy
The height of the Heavy Duty Pontoon Boat Top depends on the heighth of you railing. Thr standard is 74" in height.
can this top be used on the front of a 21' 2005 Suntracker party barge?
As long as you have the available space from the measurements we put online for our Heavy Duty Pontoon Boat Top, you should be just fine. We recommend measuring to make sure it will fit your boat.
Does this top fold down flat, easily? I would have to fold down every time to get under my canopy on the lift? Do you have pictures of it folded down. can you send me the mounting instructions. Is it as wide on top as the bottom so when folded down it will set on the siderails of the pontoon. The one I have now is narrower so it set on the seat backs. The pontoon I have is 8 ft. wide.
This Heavy Duty Pontoon Boat Top does lay down flat. It will sit approximately, 6" above the rail since the frame will sit inside the mounting bracket. We use push pins to keep it in place and are very easy to take in and out.
Can this be installed on the forward section of boat with an existing canopy already on back section of boat?
As long as you have the appropriate space to install the Heavy Duty Pontoon Boat Top, you should be fine. I would make sure it will not interfere with the doors.
Price of top and framework?
The price for the Heavy Duty Pontoon Boat Tops 8' x 8' is $419.99. This includes Freee Shipping and No Sales Tax added when outside the state of Indiana.
Do you sell the heavy duty Bimini cover w/boot 8'x8' 4 bar without the frame? I just want the replacement fabric.
Yes, We offer an 8 x 8 replacemnt binimi fabric for your pontoon boat at the link below.
Pontoon replacement bimini fabirc
What length is needed of boat side rails for 8x8. Bimini?
You will need a minimum of 68" on each side on your pontoon boat to mount this pontoon bimini top.
Will the mounting hardware work on 1" square tube deck rails, or 1 1/4" only?
This pontoon frame will not work perfectly with 1' tube but with a little light modification you should be able to make it work. There will simply be a little extra room at each rail mount on your pontoon boat.
The frame on my pontoon boat is 100" from outside to outside where the current top is installed. Will this top work on my boat, and if not, do you have one that will fit a 100" frame.
This pontoon bimini top will not work for you. You will need a pontoon bimini top for an 8 1/2 boat. I have included a link to our pontoon top below.
What kind of material is it.Is there a shipping charge?
This pontoon bimini top is made of with premium solution dyed polyester fabric. We offer free shipping on all orders over $50.
Can I install this myself? Are the installation instructions available on-line for review?
Yes, most people do install these themself. You might need one other person to help you position it but it is rather simple. Feel free to email us at Support@pontoonstuff.com and we can send you over the instructions. We will get this posted online shortly as well.
do these bimini tops come light equipped

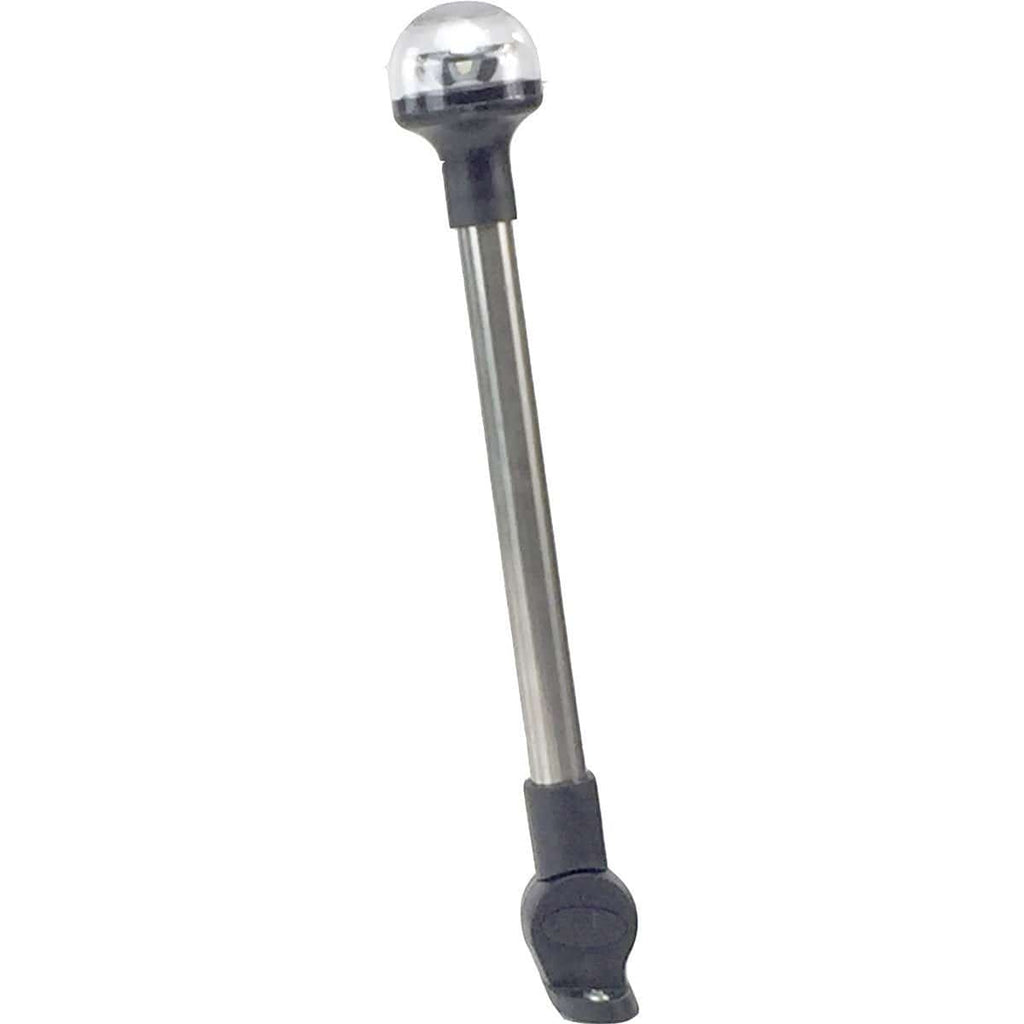

All of our pontoon bimini tops will come with the wiring hardness, holes in the framework and in the fabric and boot for your stern light. The stern light is not part of the package but our pontoon bimini tops are all ready for one to be installed easily.
My frame is 79inches wide will this frame work for me not sure if it is adjustable
Unfortunately, no. This Heavy Duty Pontoon Boat Top only works with an 8 foot wide Pontoon.
will the frame completely lay down for winter storage. Also can I use 2 tops ? 1 for the front and ! for the back .We have a 24' pontoon. Thanks James
Depending on if the measurements allow you to use 2 Tops. Yes the Frame will lay flush with the railing once taken down.
What weight is your fabric
The weight of the Heavy Duty Fabric is 10 pounds.
Do you export to Melbourne / Australia?
Unfortunately, we only ship to the 48 connected states in the United States.
The top of my hand rails are 100 & 3/4 inch wide with 1 -1/4 inch rails, do you have a bimini top that goes this wide and does your frames come painted with black
Our frames only come the Aluminum color. This is the Bimini Top that will fit the width you are looking for https://www.pontoonstuff.com/collections/pontoon-boat-bimini-tops/products/heavy-duty-pontoon-bimini-tops-86-w-x-10-l-pontoon-boat-tops
Can a stern light be mounted to the rear of this top? Wonder if there is an access hole to the frame?
Yes, there is a designated spot for the Stern Light to go. Also a cut out in the fabric.
On your video you show square tube with 4 button spring clips. Do you sell those clips? I just had one break after 12 years.
No unfortunately, we do not sell those parts separately.
What type of warranty is on the frame and fabric? What brand of fabric do you use and does it fade quickly?
We use our own brand which would be DeckMate. Our Warranty Policy is as listed on the link I have attached. https://www.pontoonstuff.com/pages/warranty
how do you measure on the width?
You will need to measure how wide your railing is to determine the width needed.
my beam on my tritoon is 101", frame center rail to center rail wide. How to i find a bimini to work with this width? Thank you
You will need to purchase the 8'6" x 10' Bimini Top. I will attach a link for you. https://www.pontoonstuff.com/collections/pontoon-boat-bimini-tops/products/heavy-duty-pontoon-bimini-tops-86-w-x-10-l-pontoon-boat-tops
My boats railings are a few inches less than 8 feet wide. I will measure again for exact width but will this top work for all widths between 88" - 96"?
Yes. As long as your inches fall between those given, you will not have any issues.
My railing is 100 1/2 inches wide do you have anything that fits that
We do. We have an 8'6" by 10' Top and Frame that will fit your width. https://www.pontoonstuff.com/collections/pontoon-boat-bimini-tops/products/heavy-duty-pontoon-bimini-tops-86-w-x-10-l-pontoon-boat-tops
Do you have an option to zip two Bimini tops together to cover 16’?
No unfortunately, we do not offer tops that will zip together.
I measured my pontoon boat rails center to center 99 1/2 ". Will this top fit?
No, you would need a 8'6" x 10 Top. Here is the link that will take you straight to it. https://www.pontoonstuff.com/collections/pontoon-boat-bimini-tops/products/heavy-duty-pontoon-bimini-tops-86-w-x-10-l-pontoon-boat-tops
Hi, my railing is 98" outside to outside. How does your company determine the measurements? Inside to inside or outside to outside?
Outside to outside. Those measurements fit inside of the measurements that work with our 8 x 8 Bimini Top and Frame
Does this top have the ability to lay flat down for travel?
Yes. You will need to detach them from the front mounting brackets to get it lay down flat.
You indicate that the kit includes wiring. What is the wiring for?
The wiring for this top is to connect any stern lights you may have so that it can receive power.
I have a 2006 19 foot Gillgetter pontoon with a 4 bow frame that is 82" wide. Do you sell a replacement top that will fit it?
Unfortuantely, we do not carry a top that will fit that width.
where do I find the dimension for the unit

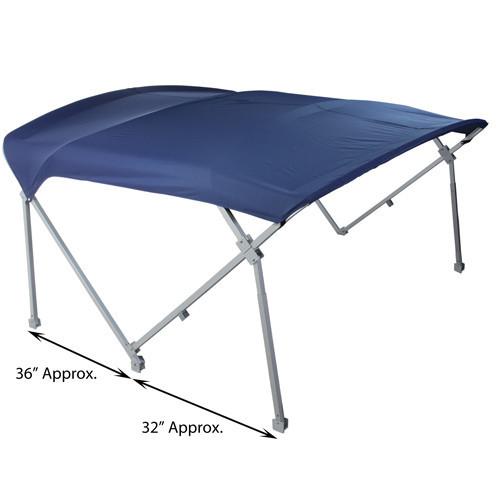

You will be able to find them in the featured pictures of the measurements.
My top measure 102 wide and 96 Long it has a dome light on the second bow from the front and its square tube do you have a top that will fit?
We do have a Bimini Top that will fit the measurements that you need.
Do u make a heavy duty model 1 1/4” frame 8.5’ w x 8’ Long
Unfortuantely, we do not make that size.
Does it come prewired for a light on top?
No, you will need to put the wire that comes with the hardware throughout the frame.
what is the material used for the bimini top canvas in the "Heavy Duty Pontoon Package".? What is canvas warranty?
It is a Solution dyed polyester fabric. It comes with a 5 year warranty
I have a sun tracker party barge. the outside of the rails is 100". Would the 8' x 8' work on that. I do not have enough length for the 8' x 10' top. What are the measurements of the frame footprint? You referenced a picture with measurements, but I don't see where the picture is.
This frame only fits railing between 88- 96". Unfortunately, 100" is too wide for this top.
Does top come with zipper sewn on all 4 sides to install walls if you were to make it into an enclosure later
No. This Bimini Top does not include the zipper sides to add anything to it.
My current bimini top is 102” wide,would this 8x8 fit or do you make a top that is wider?
You would need to go with the 8'6" wide framework.
My boat is a 2004 sylvan Mirage. It is 96 in wide. The railings length (back to front) is 69 inches. Will this one work? Or is it too long?
This Pontoon Boat Bimini Top should fit your application. Please match the measurements in the featured pictures that show the mounting measruements.
I have a 1989 smoker craft with the rail just slightly under 1in wide, do I have to go with the economy or can I order the heavy duty and will work, I see all about 1-1/4 rail for the heavy duty and I only have just under 1in
Unfortunately, these Pontoon Bimini Brackets are designed for 1 1/4" railing.
hardware to adjust to 1.5 inch rail???
Unfortunately, no. This Heavy Duty Pontoon Bimini only come with the 1 1/4" mounting Brackets.
DO YOU HAVE A 1 INCH FRAME?
The only Bimini Top that we offer with 1 inch frame is going to be our Economy Bimini Top.
My pontoon fencing is 1 1/2" will this bimini mount to my railing?
No these Brackets for the Heavy Duty Pontoon Boat Top are made to fit a 1 1/4" railing the brackets would not fit a 1 1/2" railing.
What is the height of the frame work for the heavy duty canopy? Thank you John
Thr frame work is going to be 54" From the brackets to the highest point of the frame. Of course this is added to your railing height to find the standing height of your Pontoon.
I notice on your 1 inch frame tops, someone asked about speed/wind speed. I am curious about the heavy duty frame support at speed?
The Heavy Duty Frame, we recommend putting down the top whenever moving. But I believe the updated speed is going to be a max of 20mph
