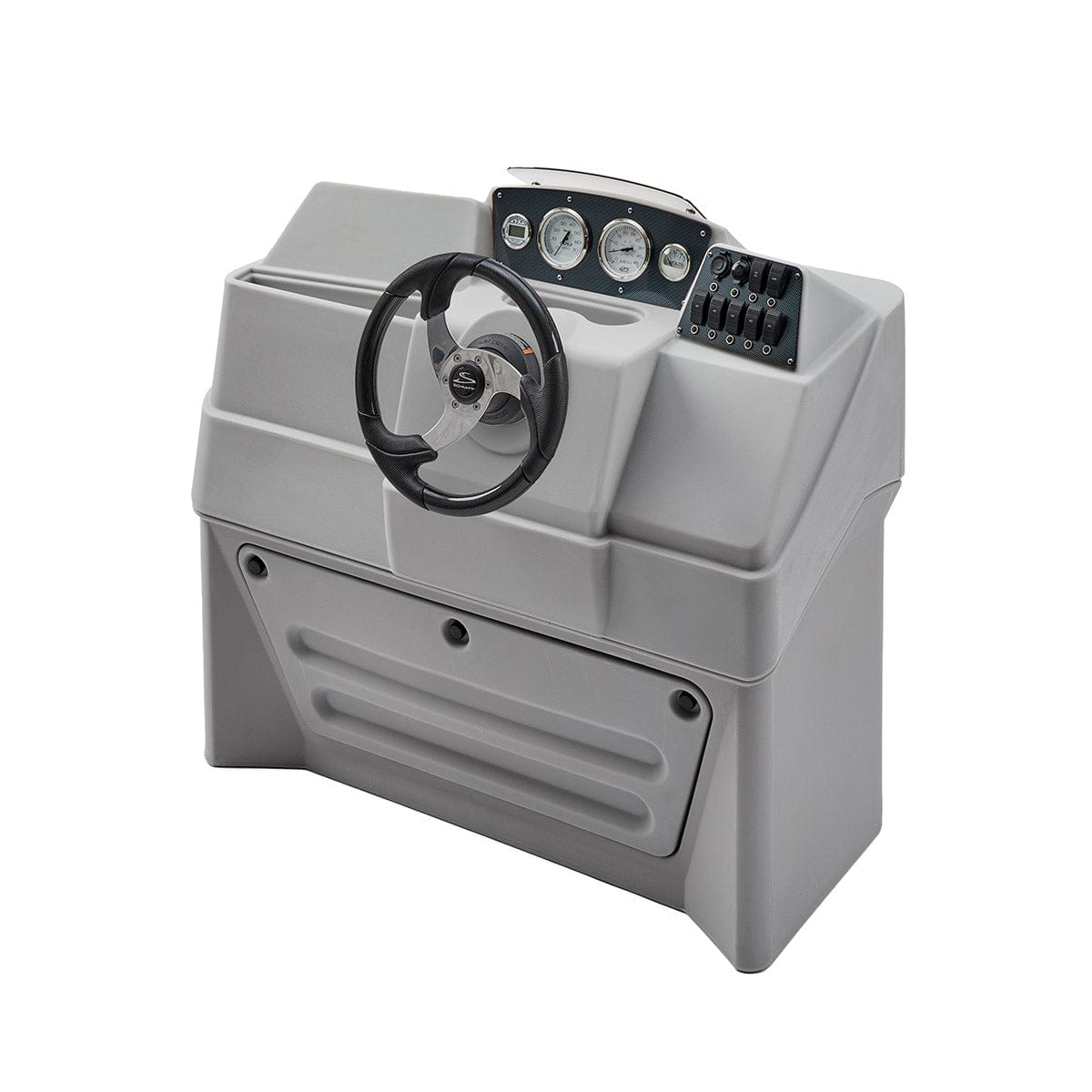

DeckMate Classic Large Helm Console #color_gray & invisible

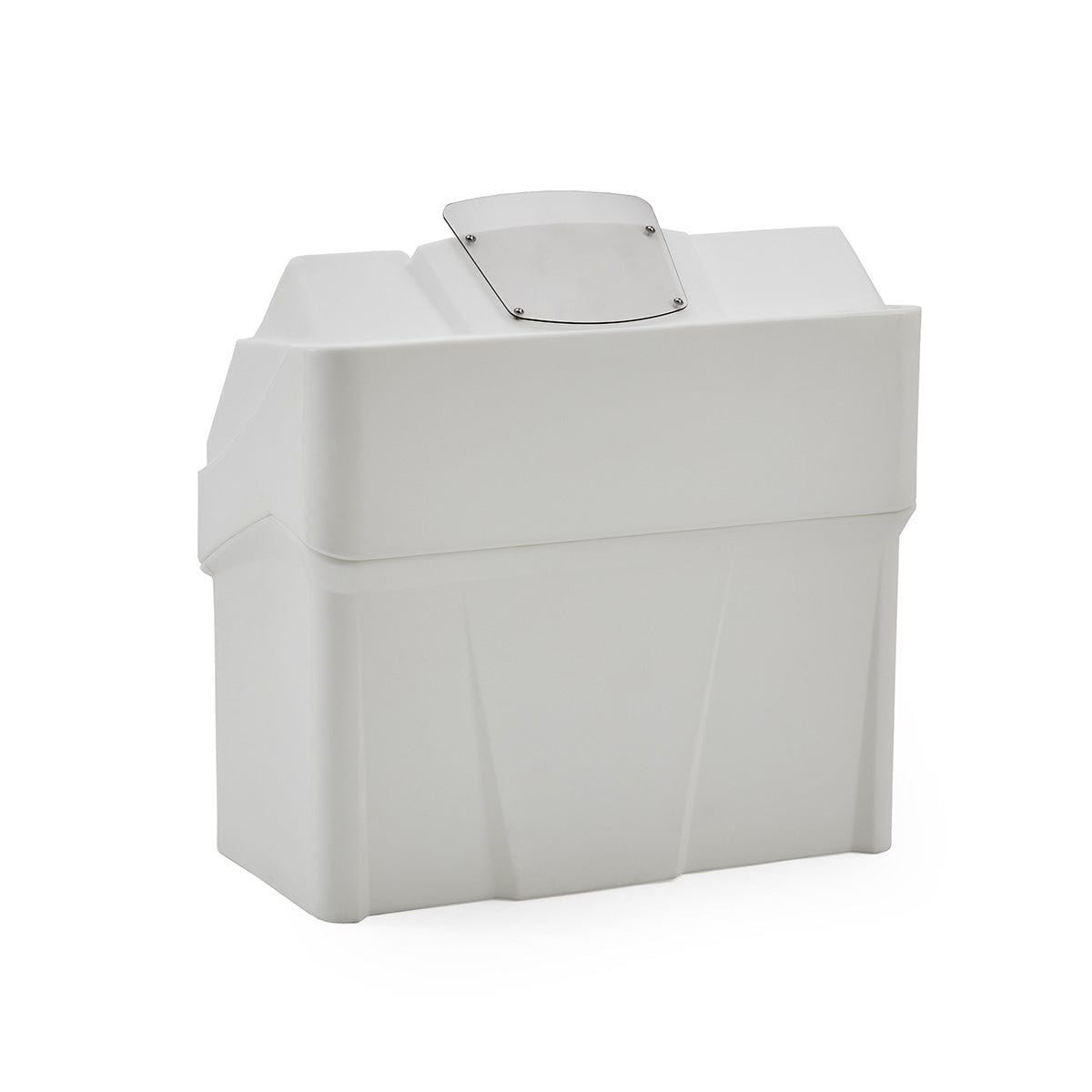

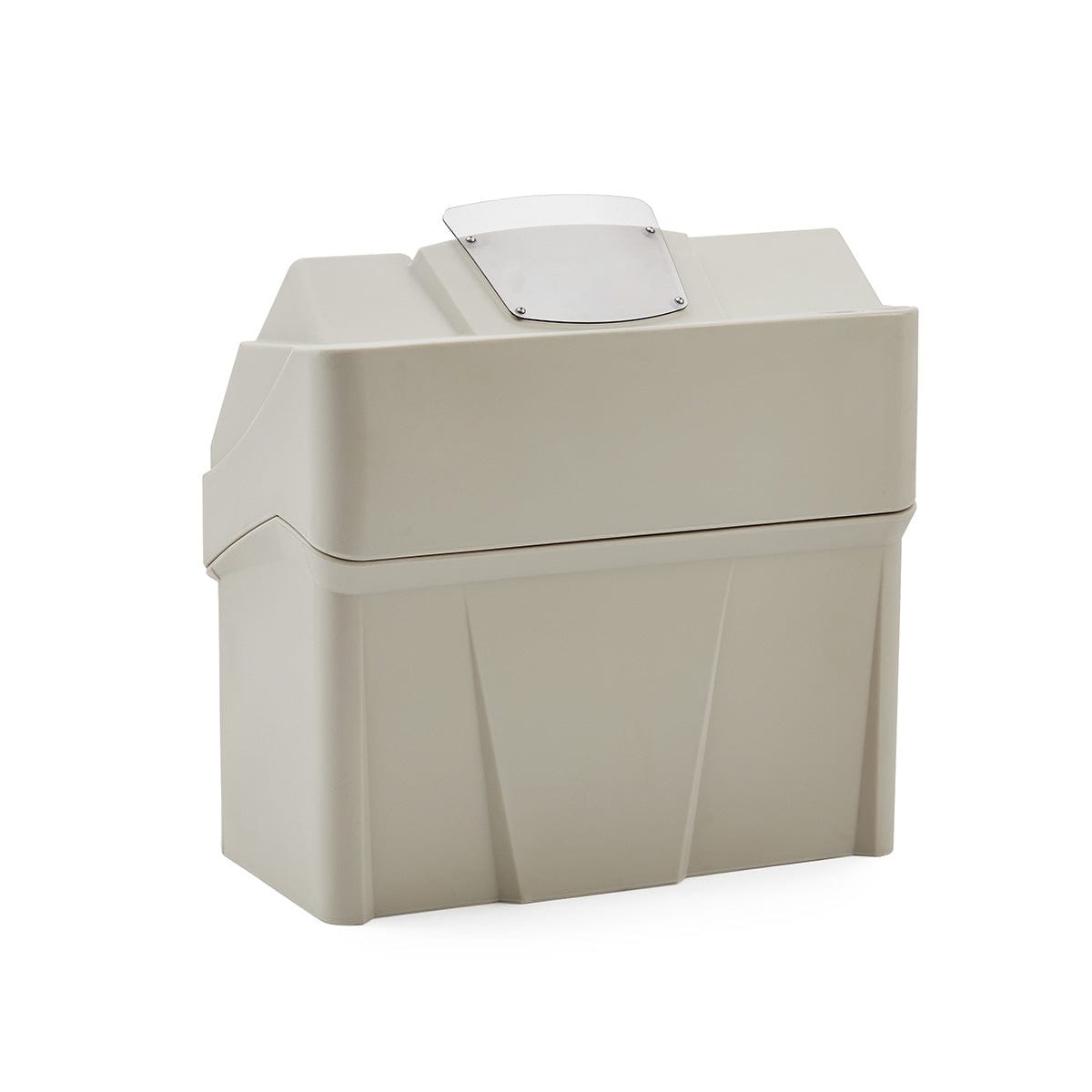

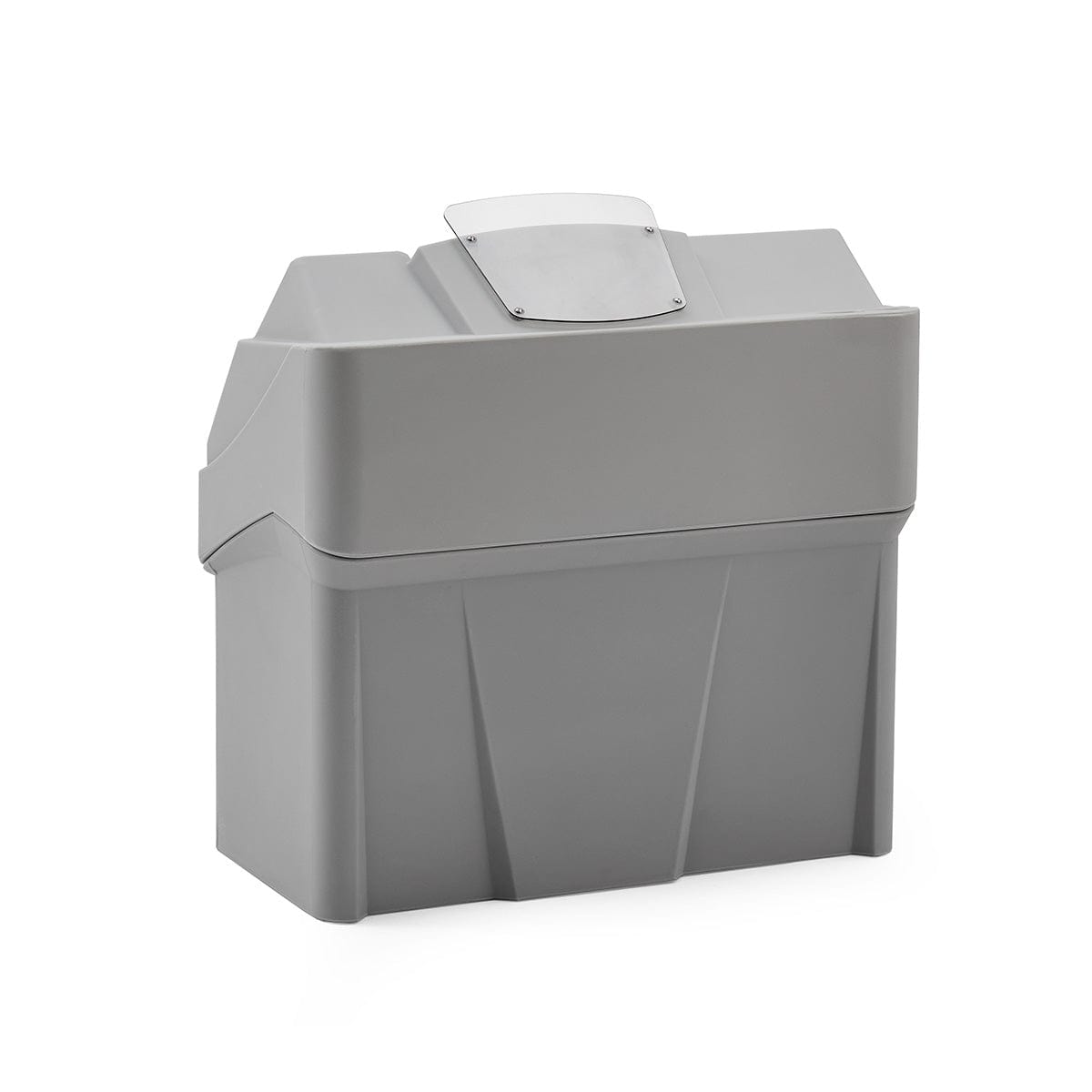

DeckMate Classic Large Helm Console back #color_gray

DeckMate Pontoon Console carbon panel gauges #wheel & panel color_carbon fiber

DeckMate Pontoon Console carbon panel switches #wheel & panel color_carbon fiber

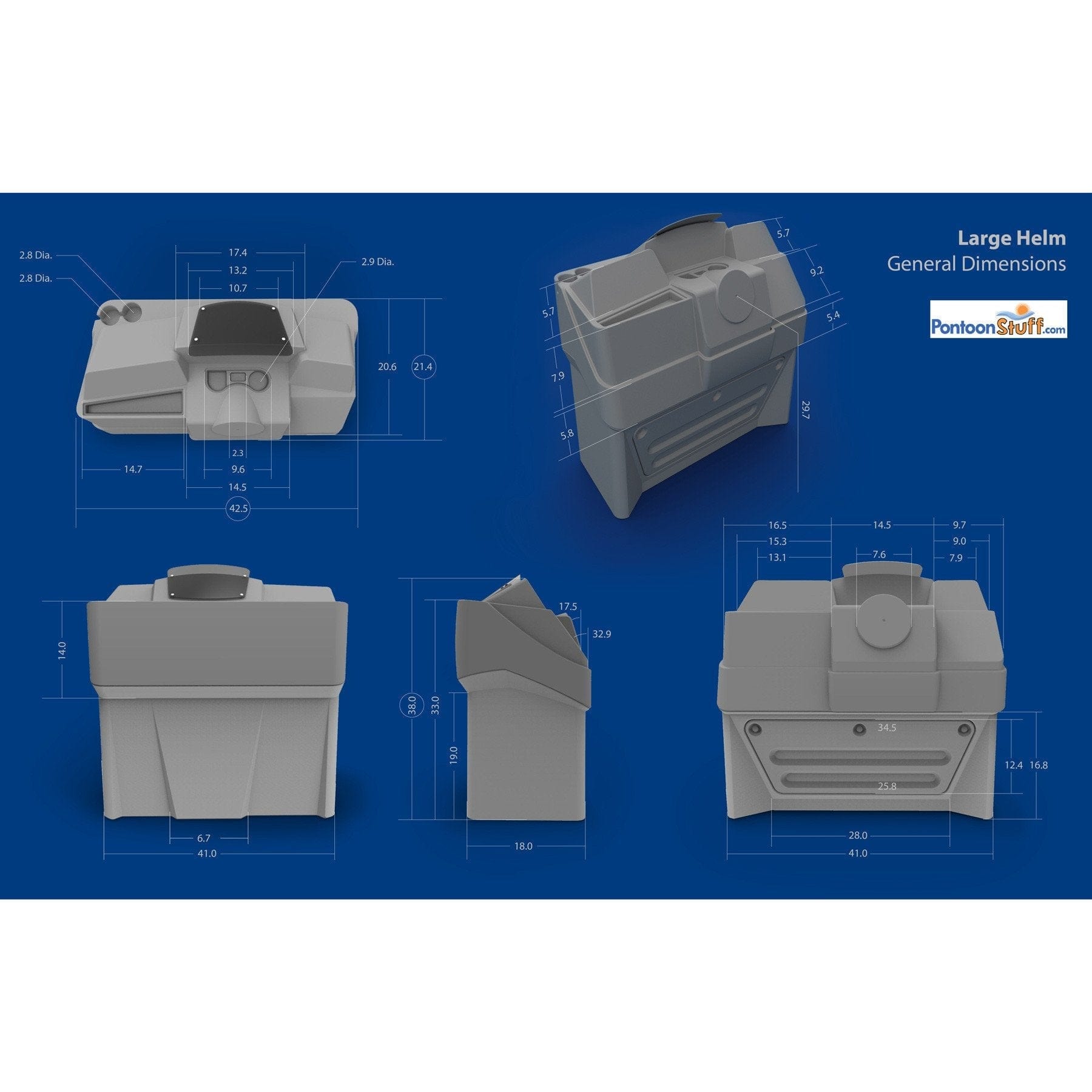

DeckMate Large Console General Dimensions

DeckMate® Pontoon Consoles | 3D Builder

Classic Large Pontoon Console | 3D Builder Package

SKU: KMST5-GRAY-CF

$1,339.99

Color: Gray

Wheel & Panel Color: Carbon Fiber

Quantity:

Wiring harness NOT included. Gauge and switch panels are not pre-installed.

Classic Large Pontoon Console | 3D Builder Package

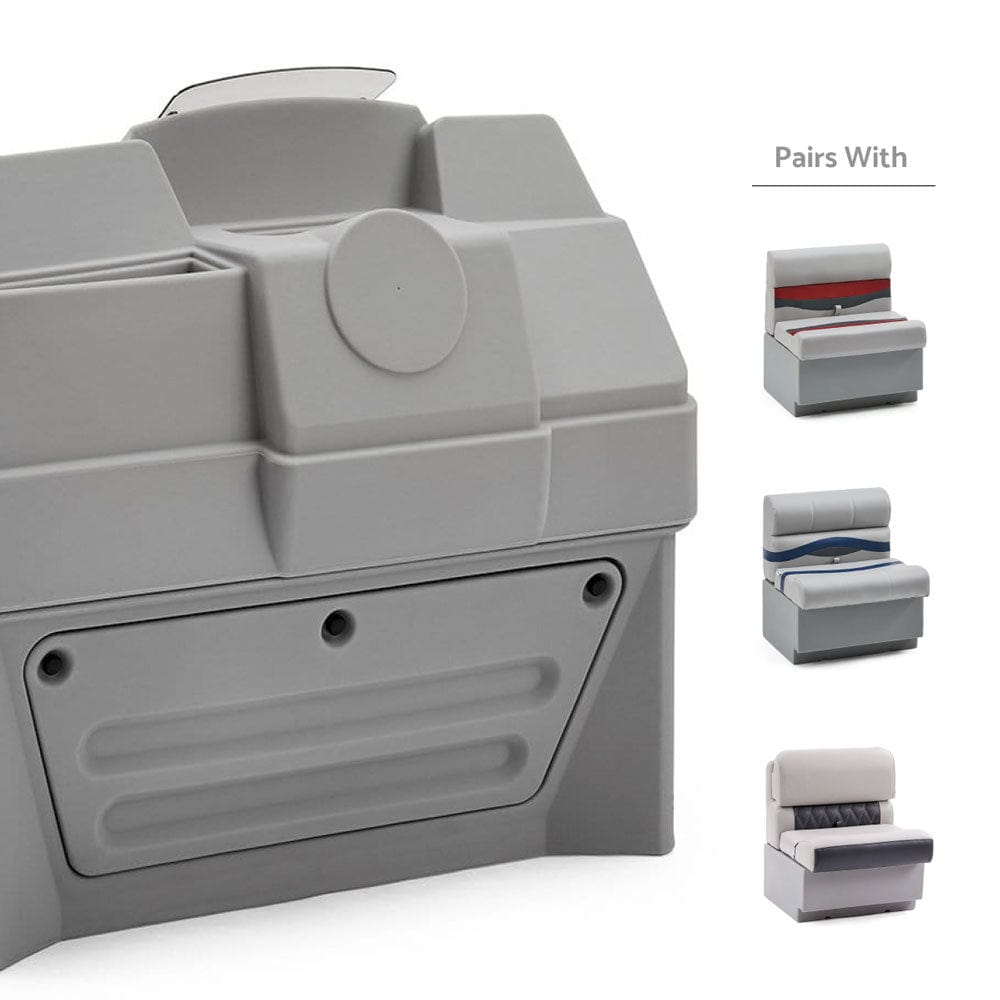

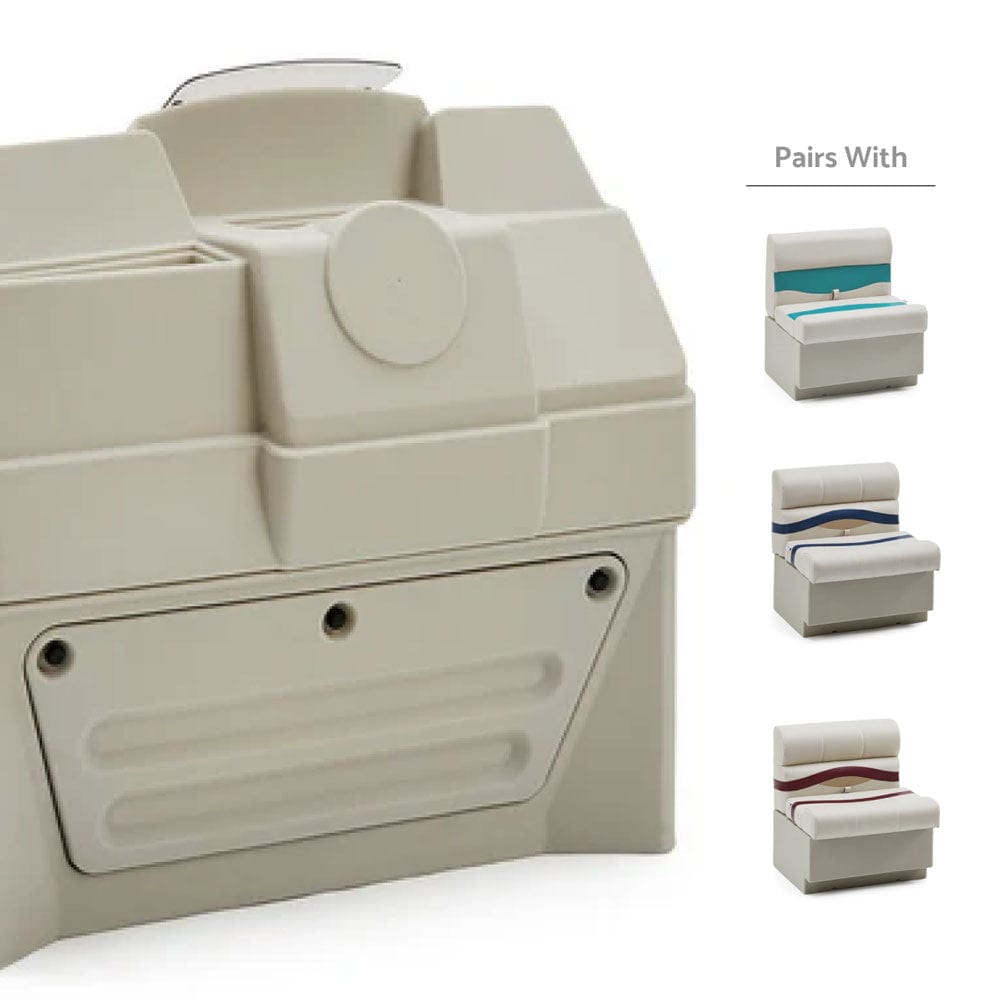

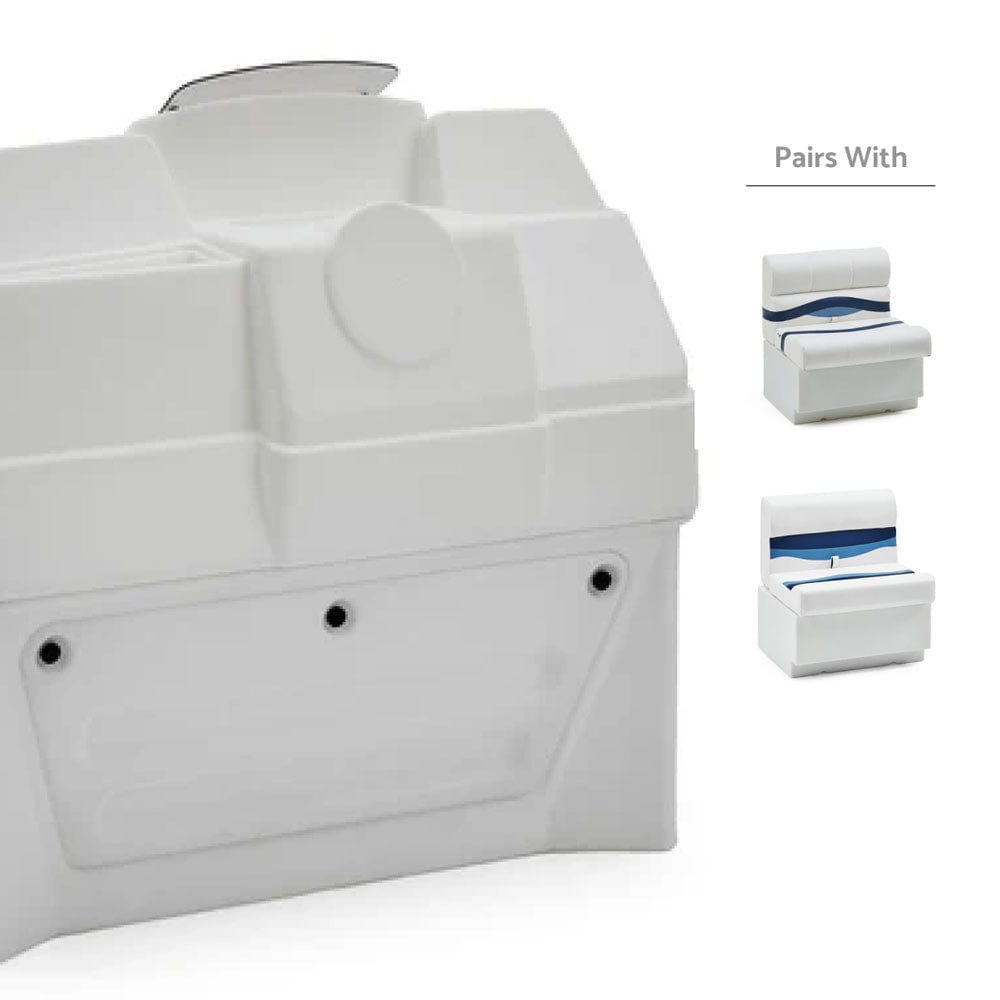

Upgrade your pontoon boat console. Match our Classic DeckMate® seats perfectly and personalize your helm with our Helm Package options.

Factory-Grade Electronic & Steering Parts
No wood! All of our pontoon furniture frames are plastic. We use rotationally molded plastic bases.
High-grade stainless steel hardware and staples are used on our pontoon consoles, along with t-nuts, which are inserted into the plastic bases to secure each pontoon seat cushion.

Features

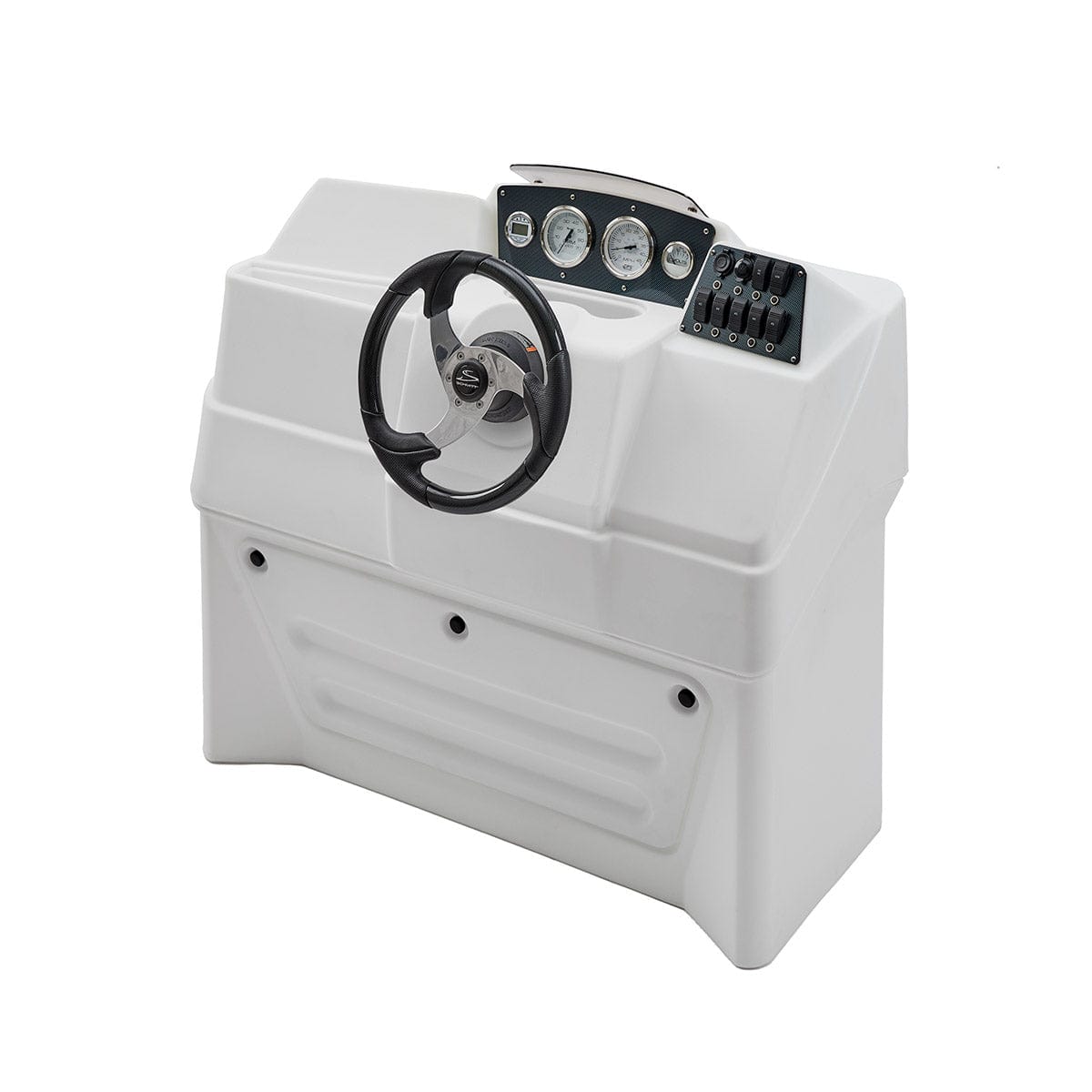

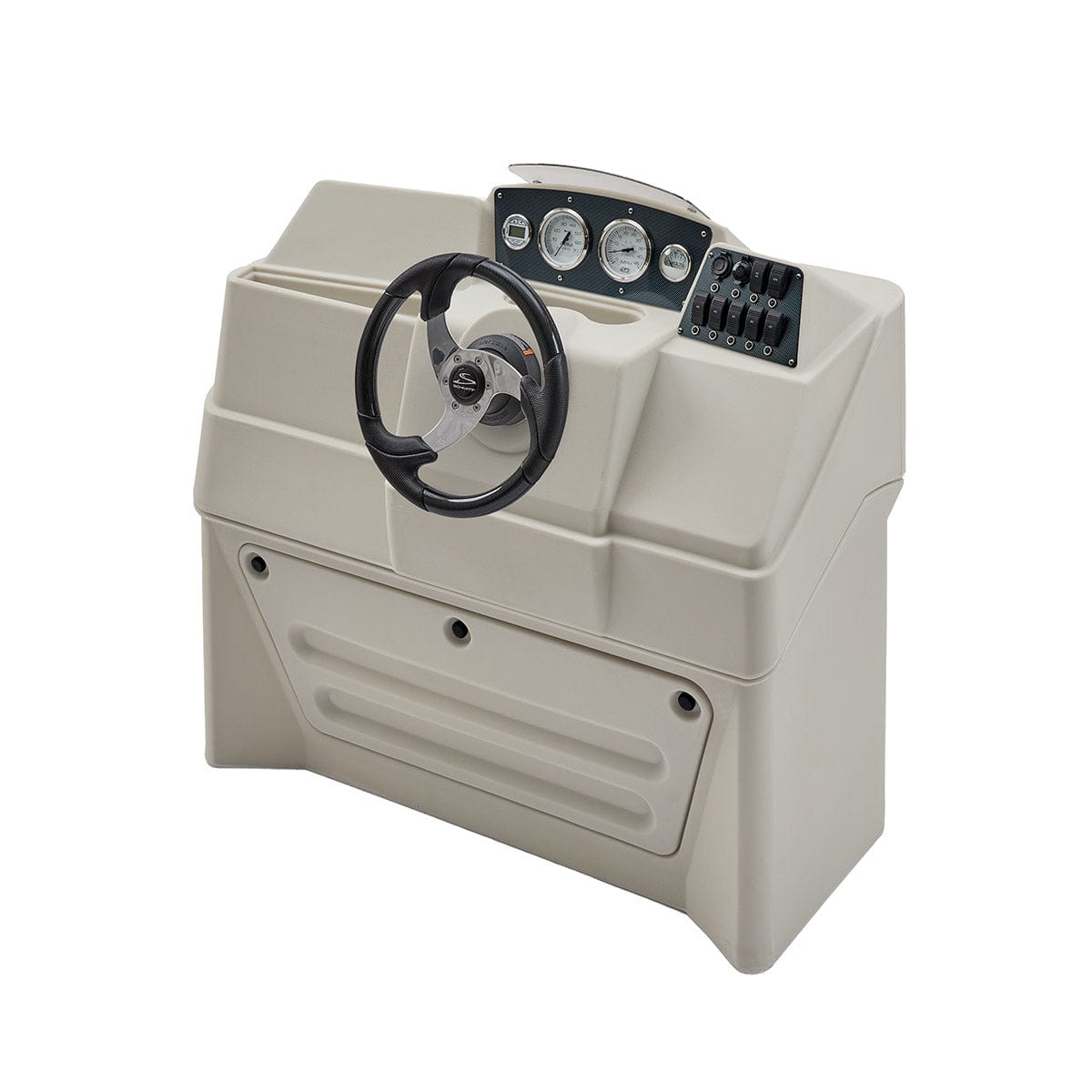

Carbon Fiber Package Includes:

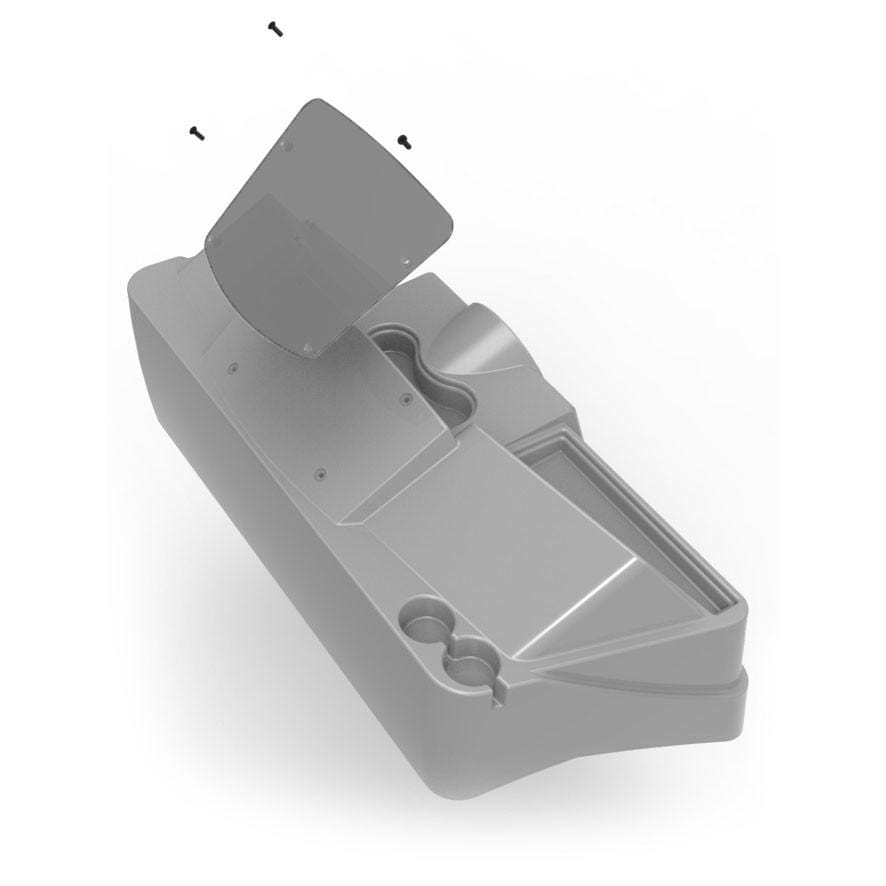

Large Console Base & Windshield
Carbon Fiber Accent Panels
Carbon Fiber Deluxe Comfort Wheel

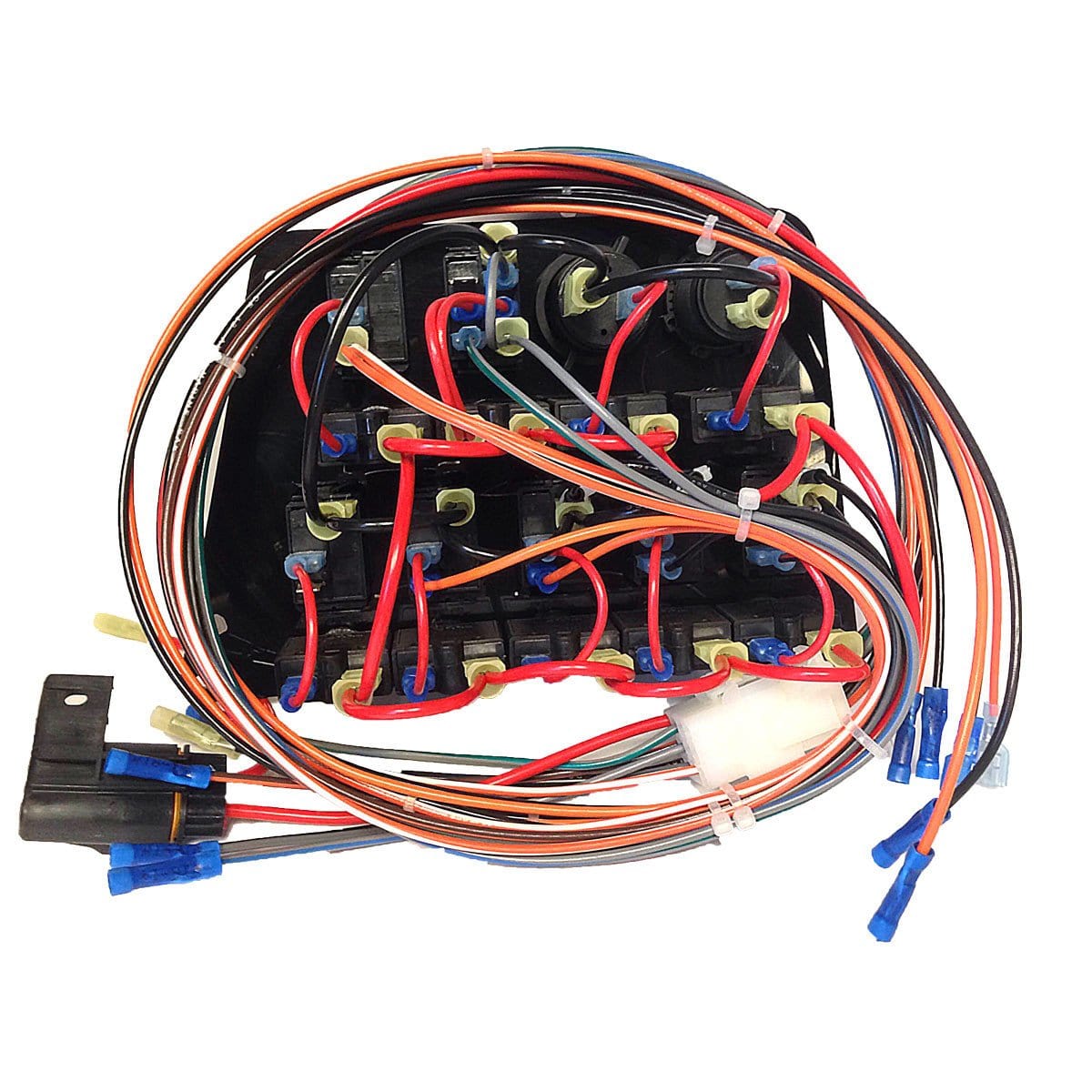

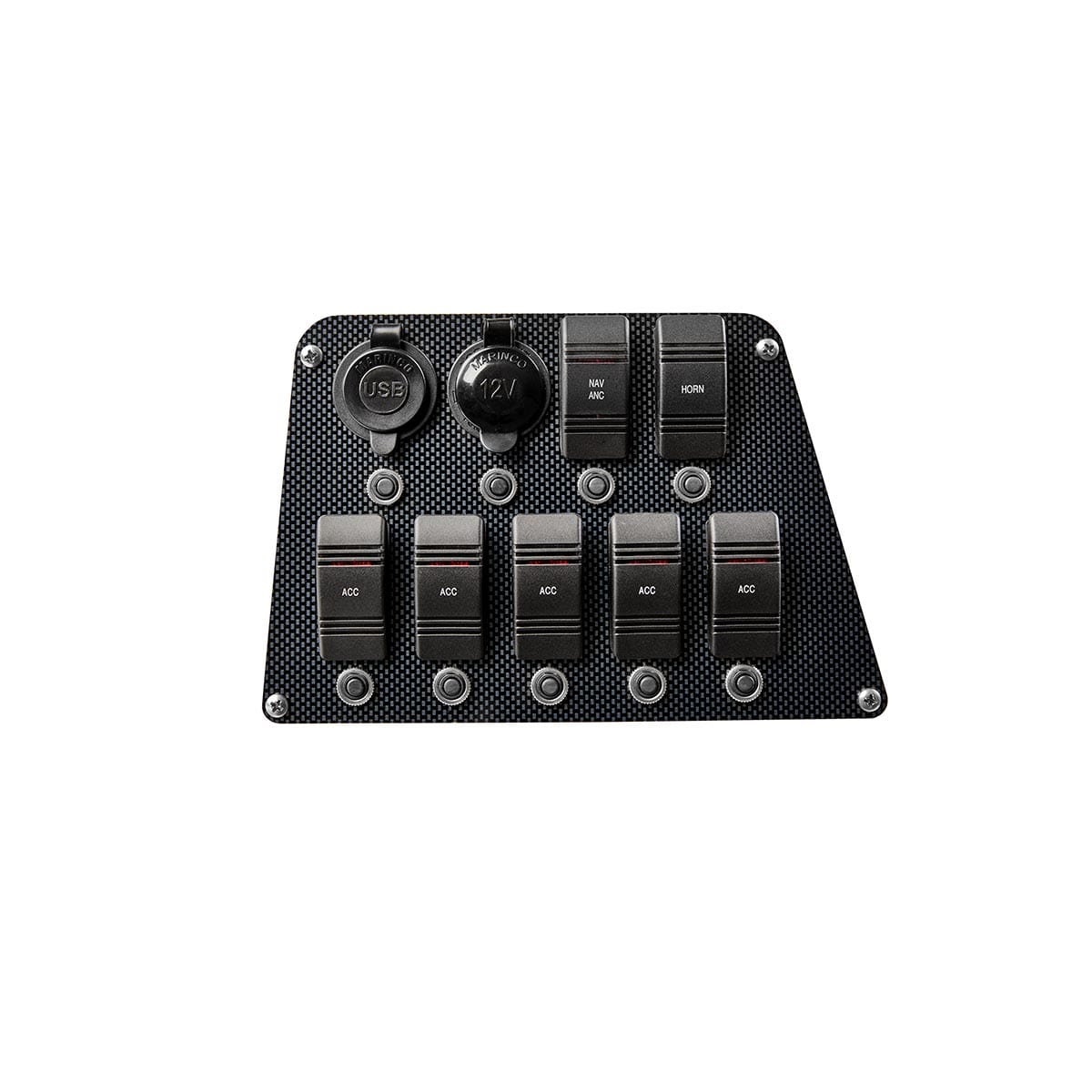

Fully Wired Switch & USB Panel

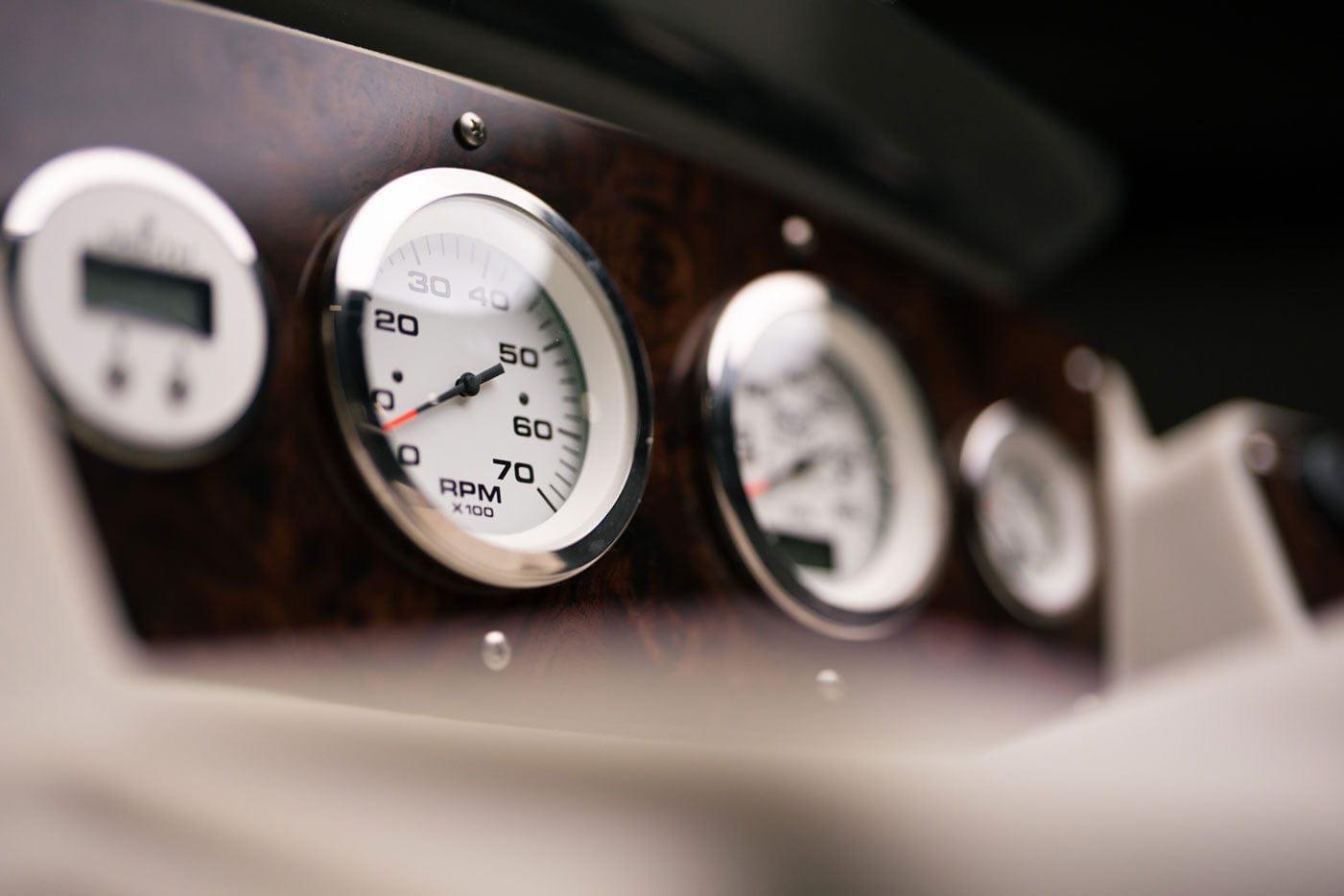

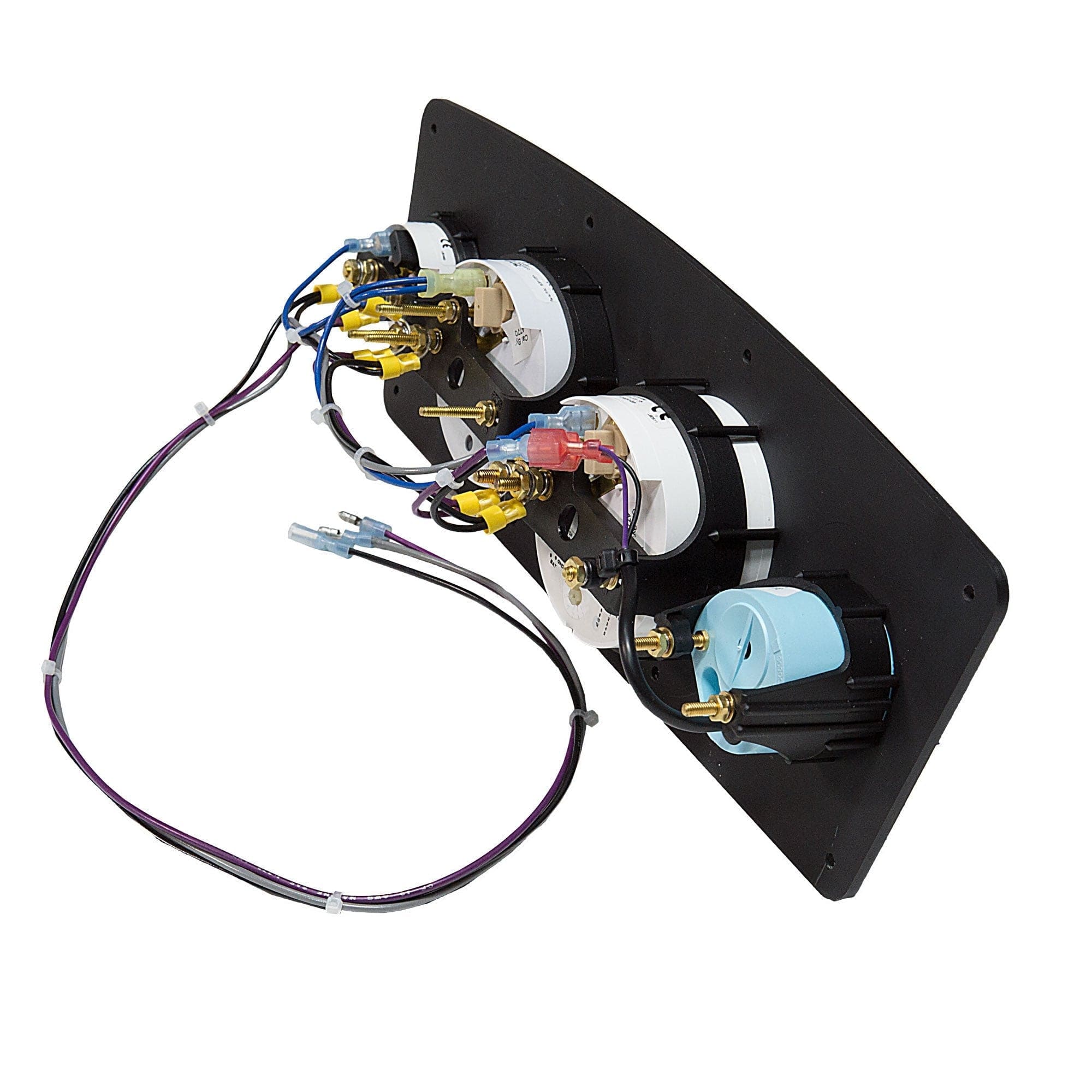

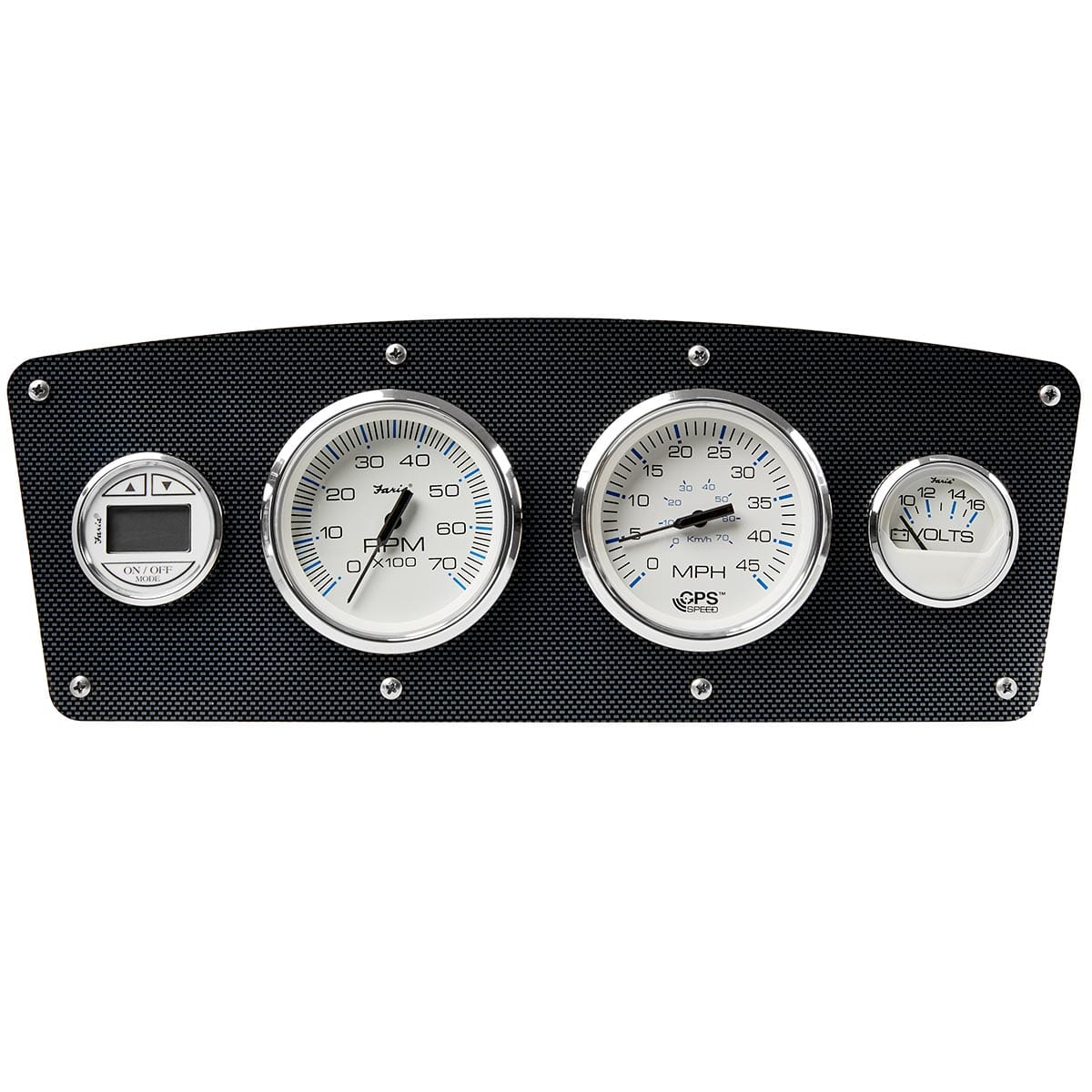

Fully Wired Gauge Panel - Tach | Speedo | Depth Sounder | Volt Meter

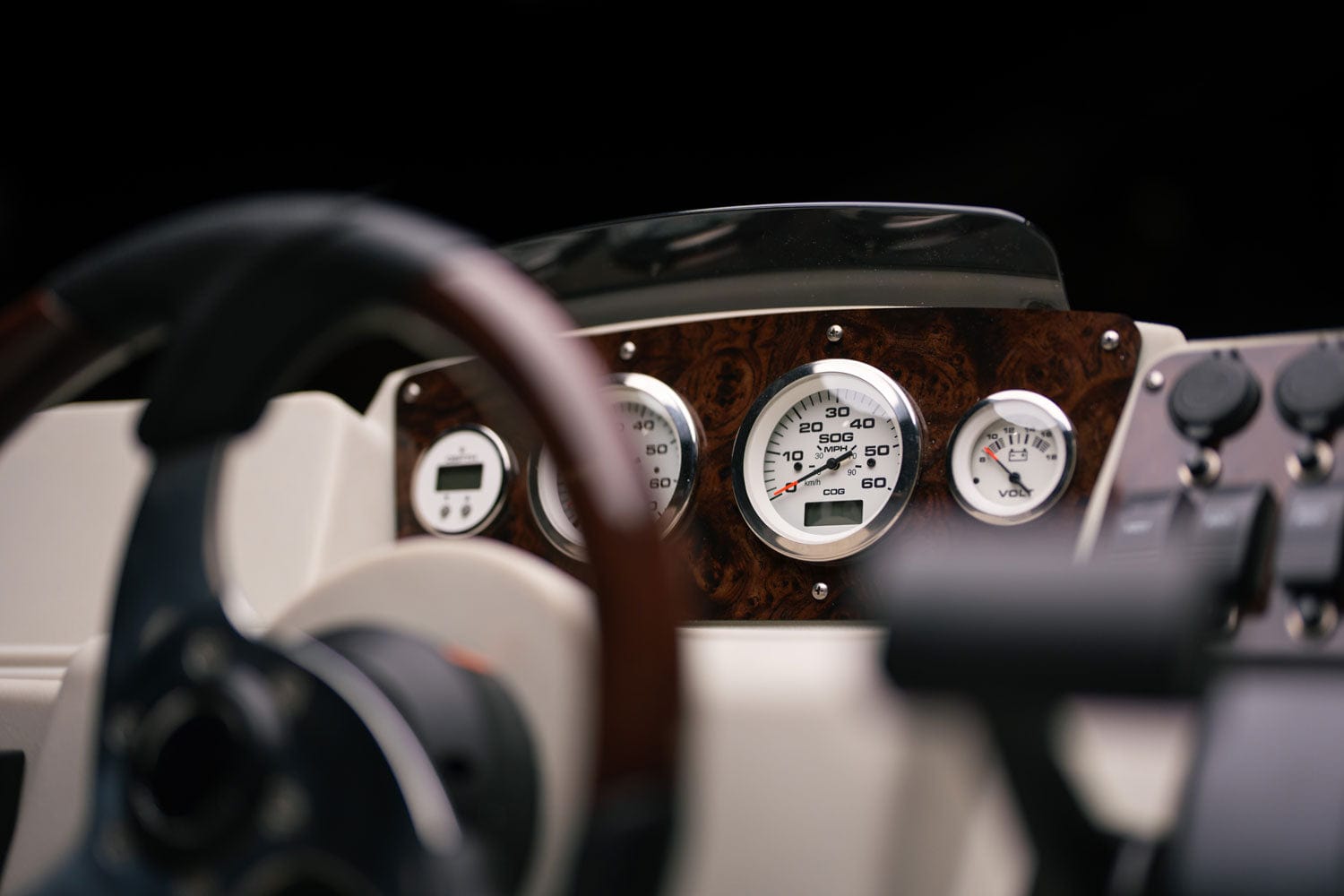

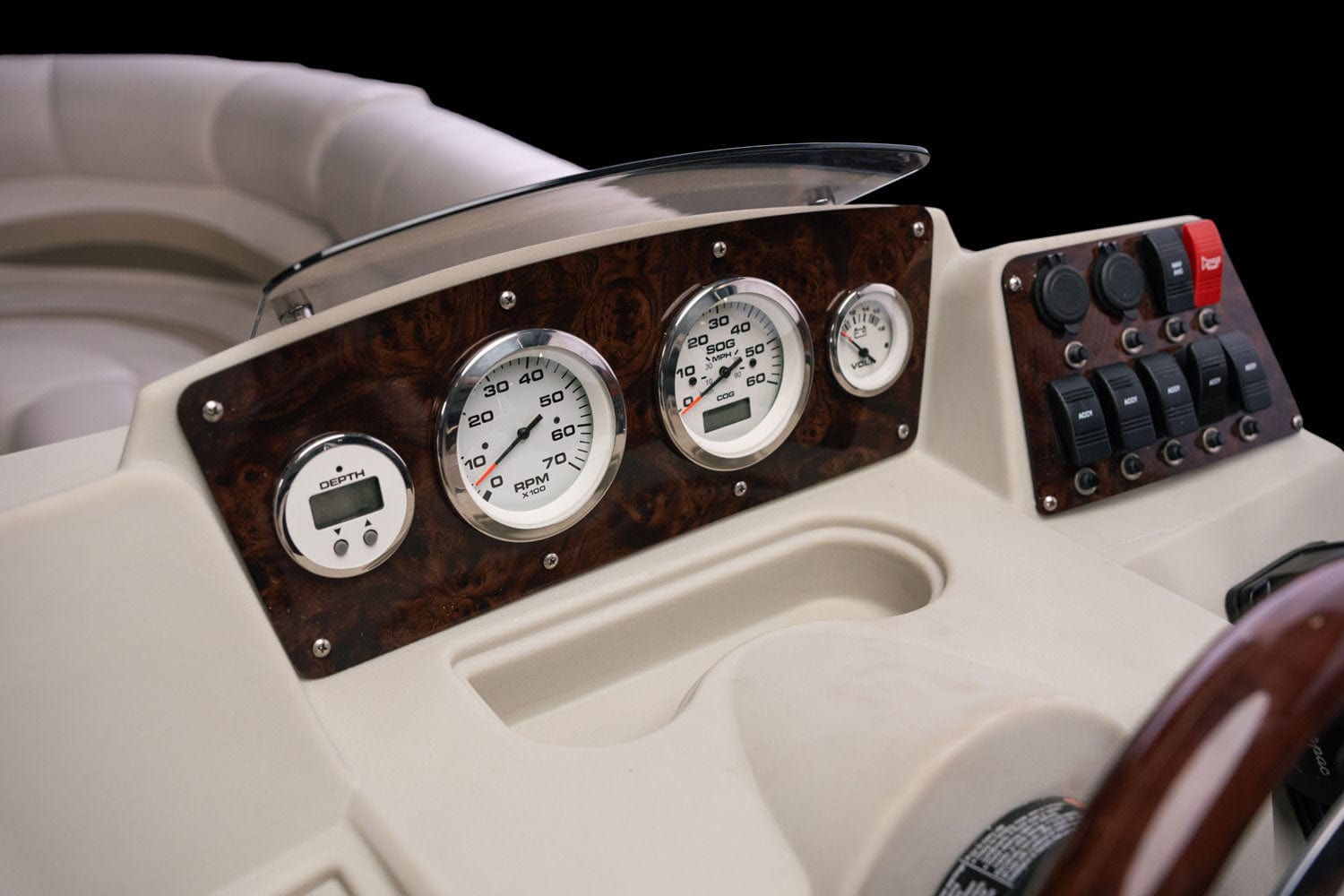

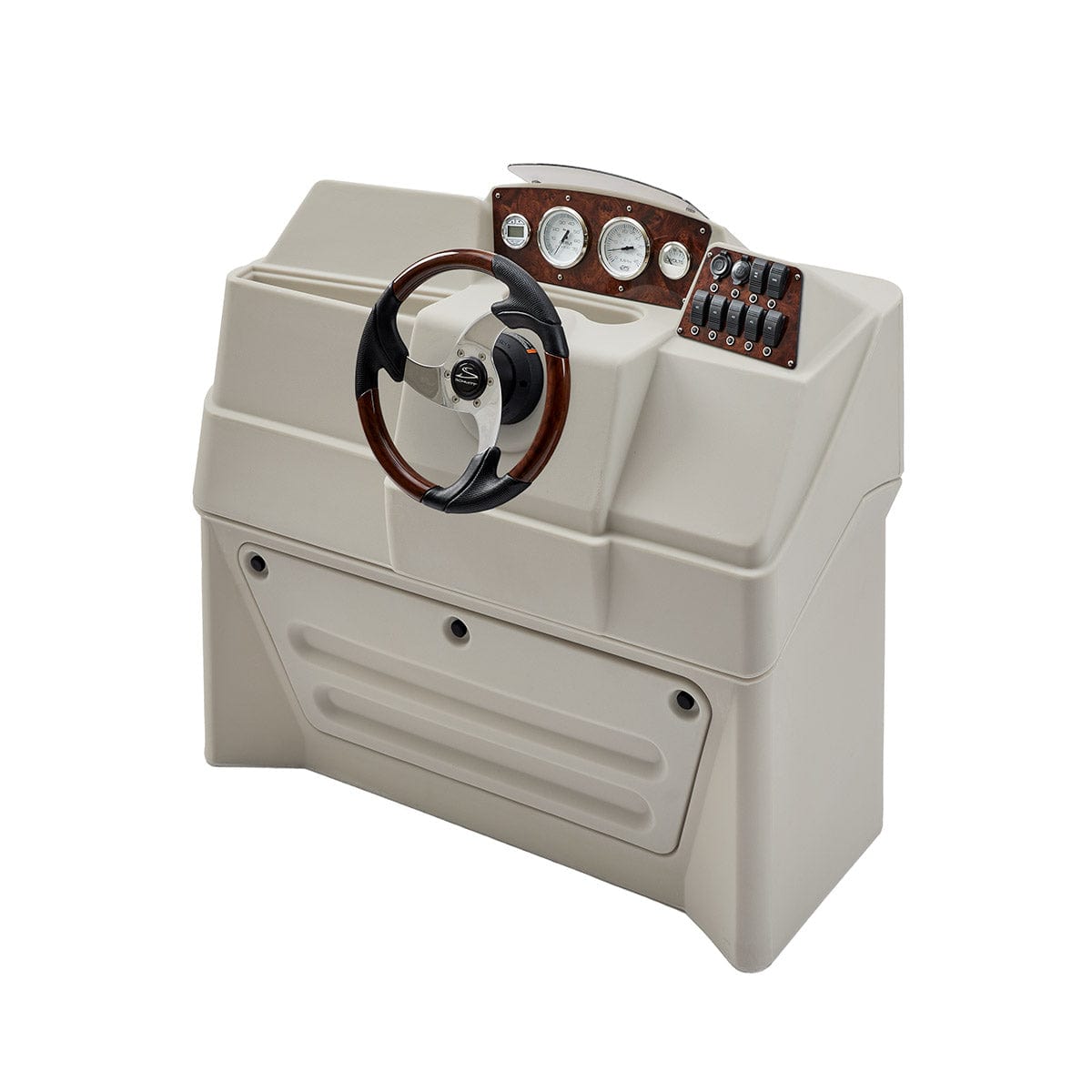

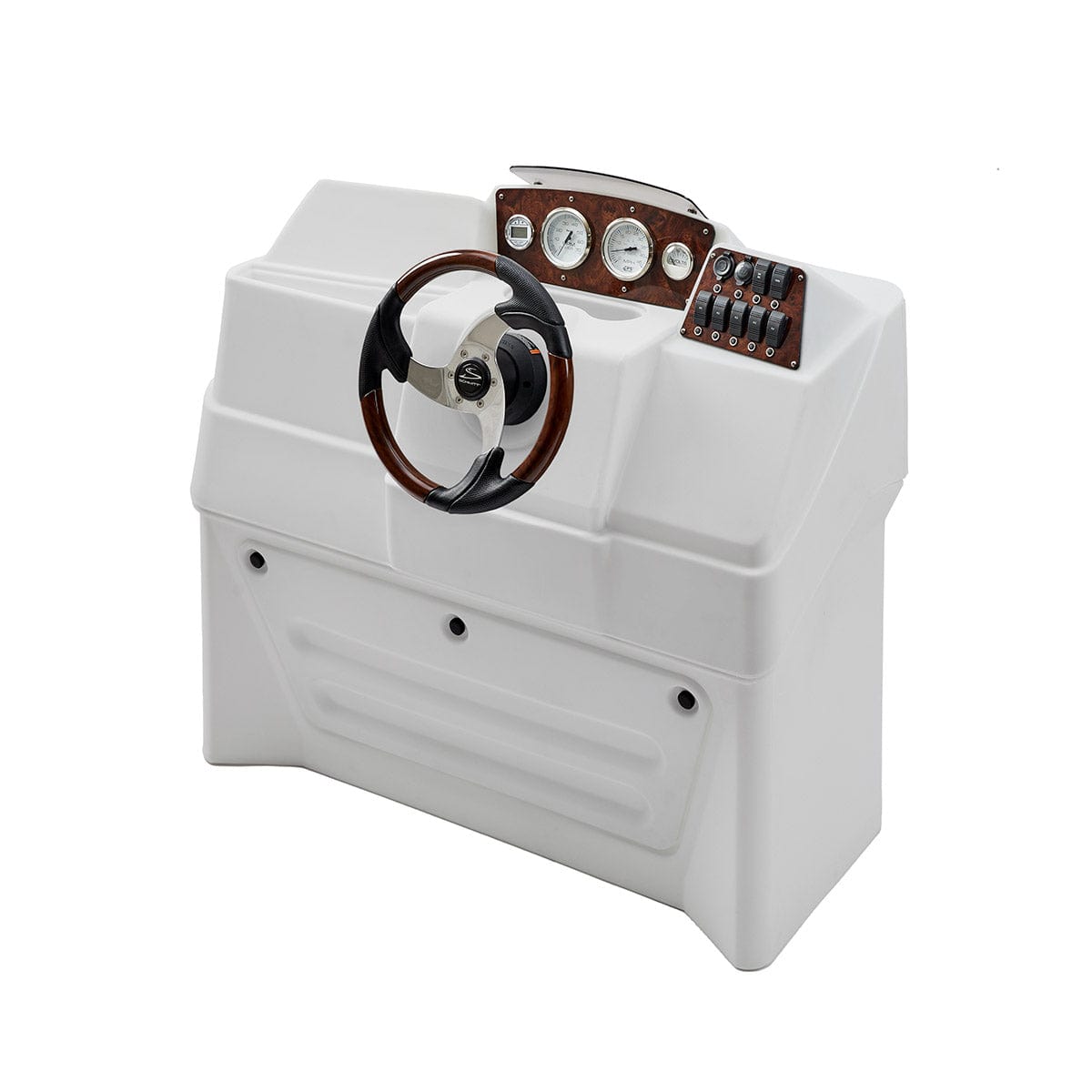

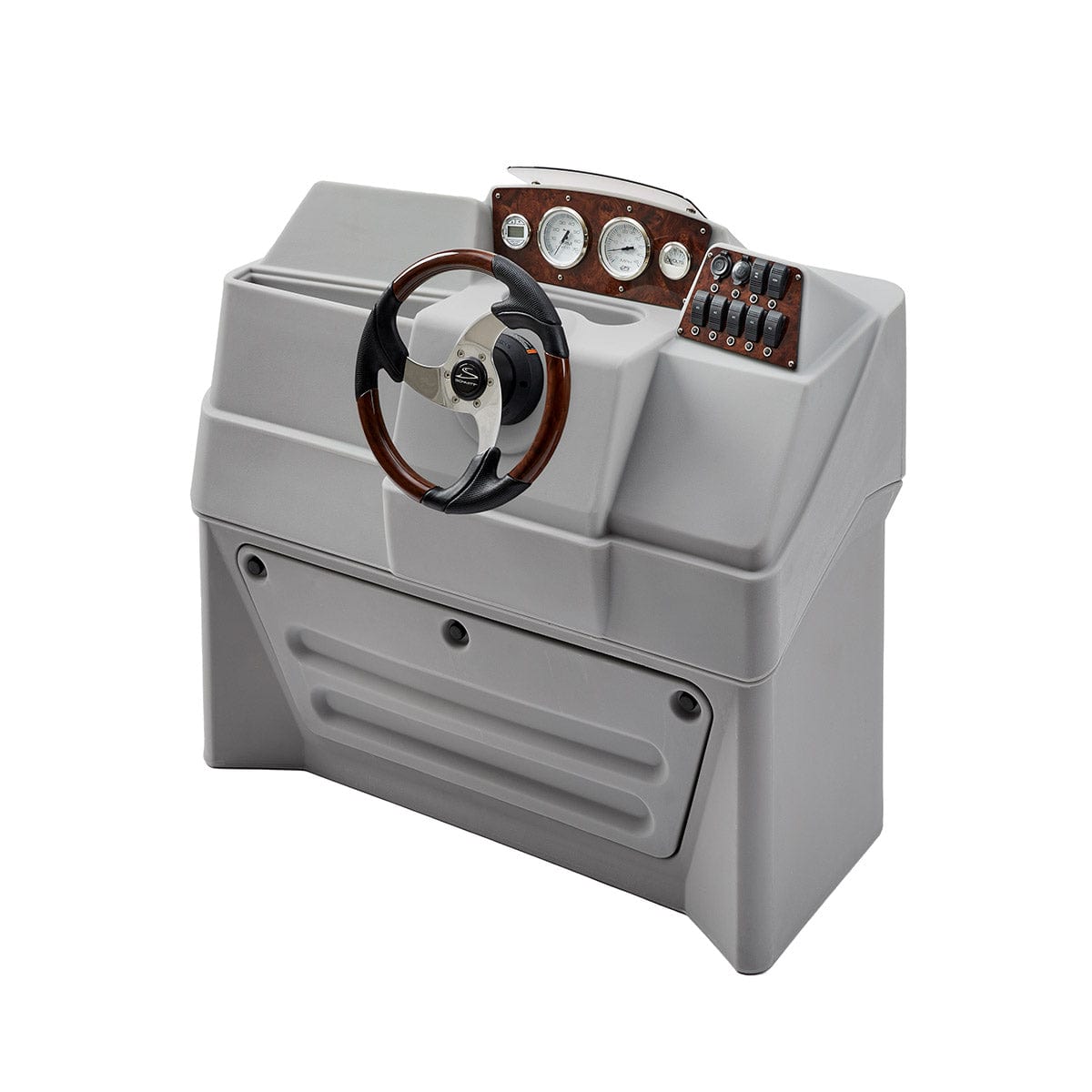

Burl Wood Package Includes:

Large Console Base & Windshield
Burl Wood Accent Panels
Burl Wood Deluxe Comfort Wheel

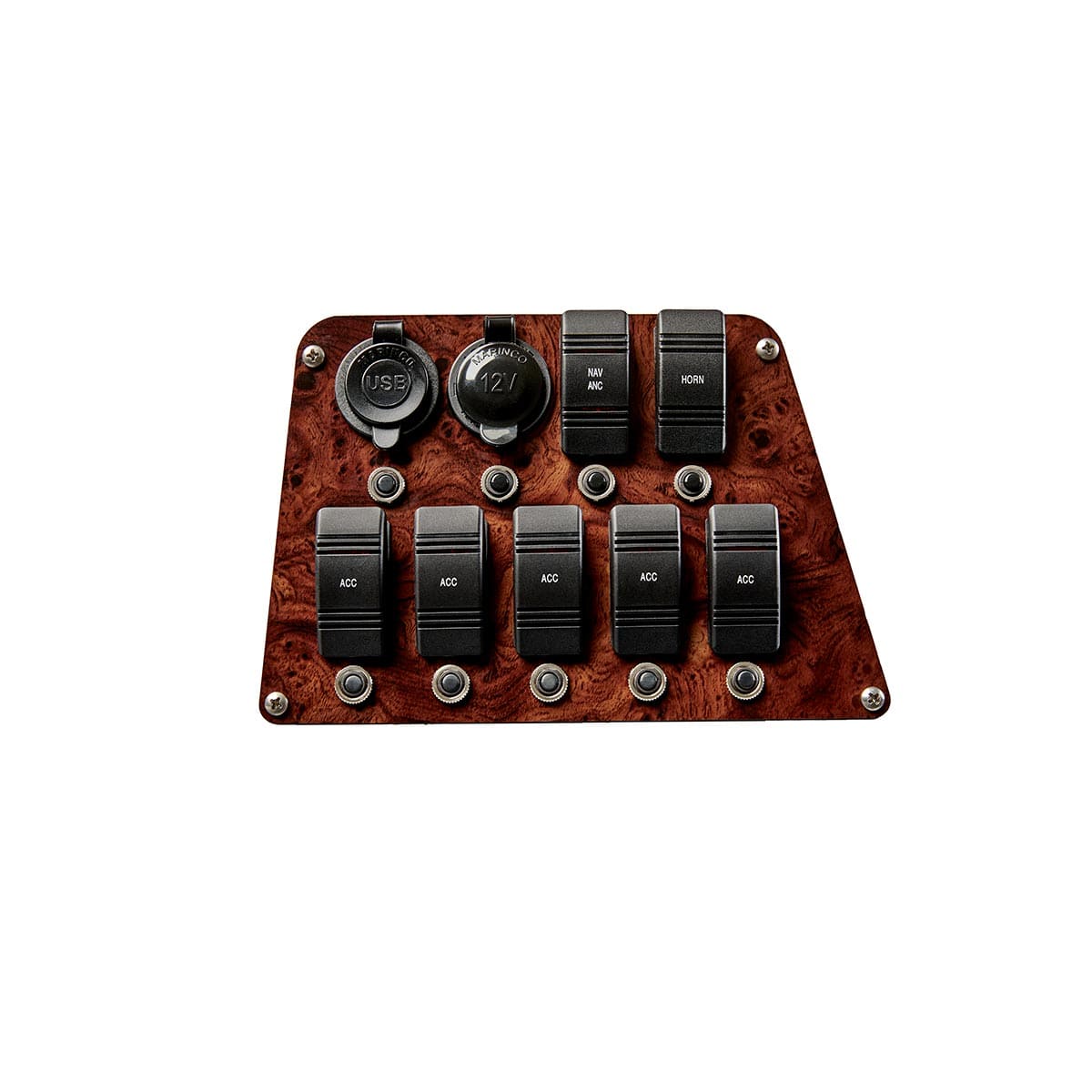

Fully Wired Switch & USB Panel

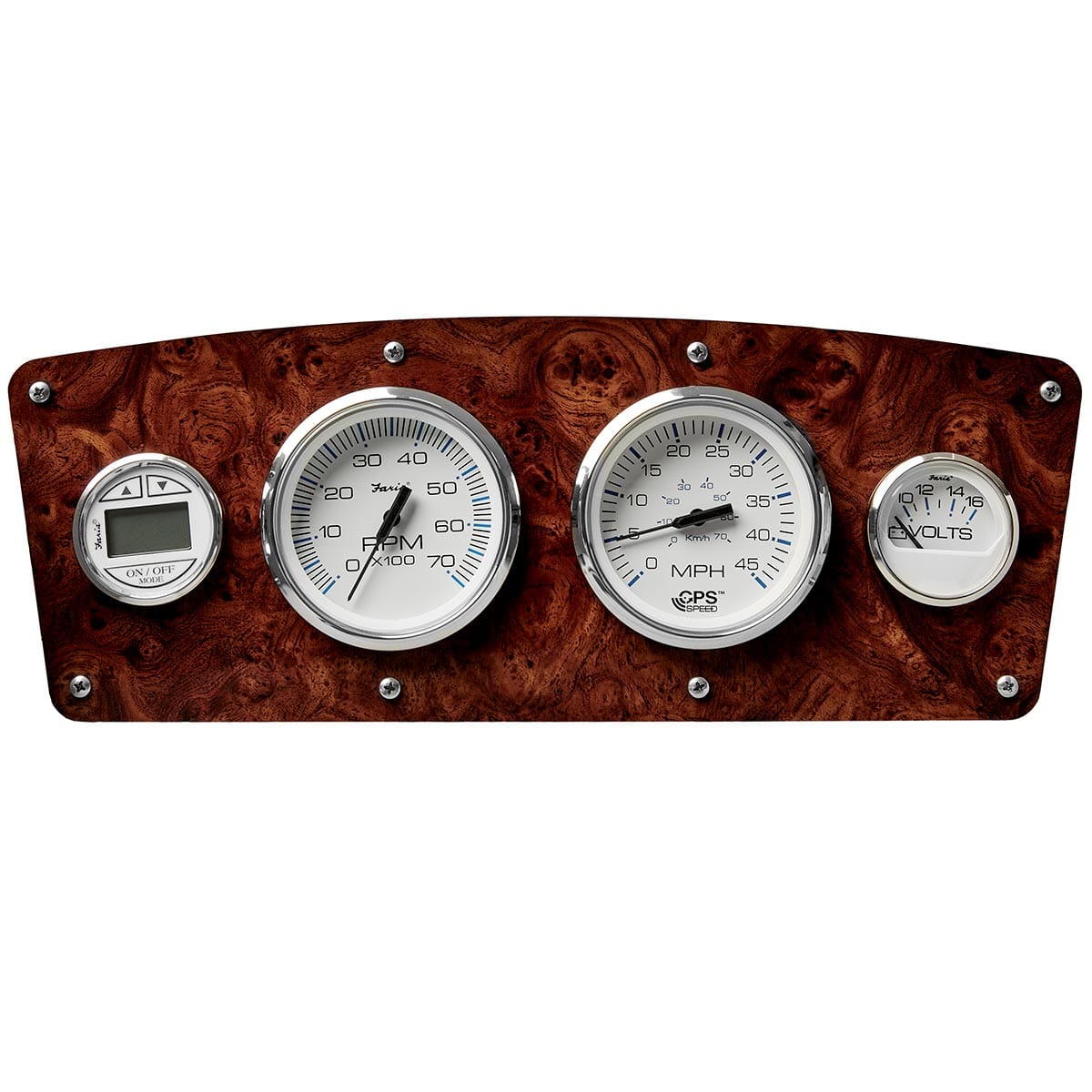

Fully Wired Gauge Panel - Tach | Speedo | Depth Sounder | Volt Meter

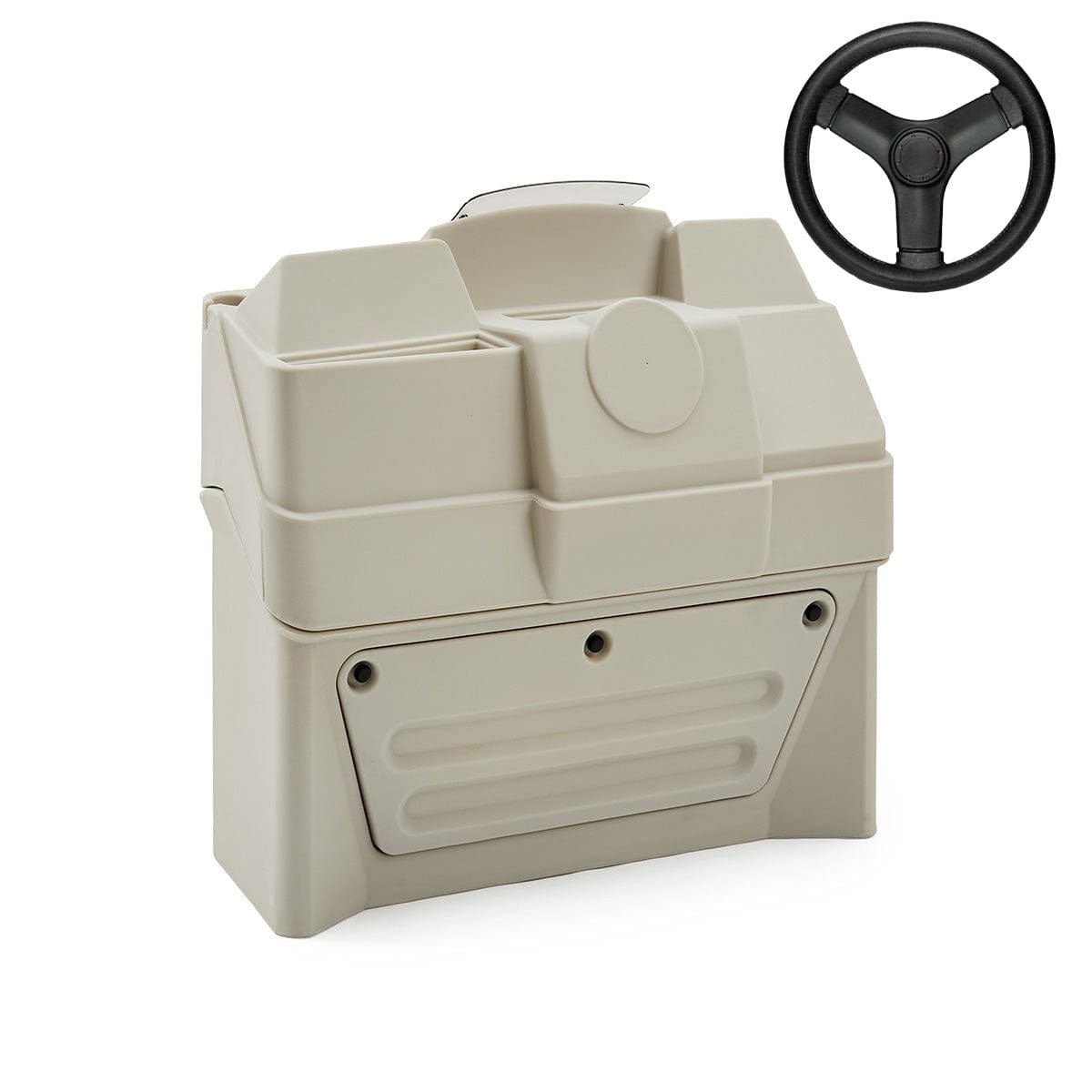

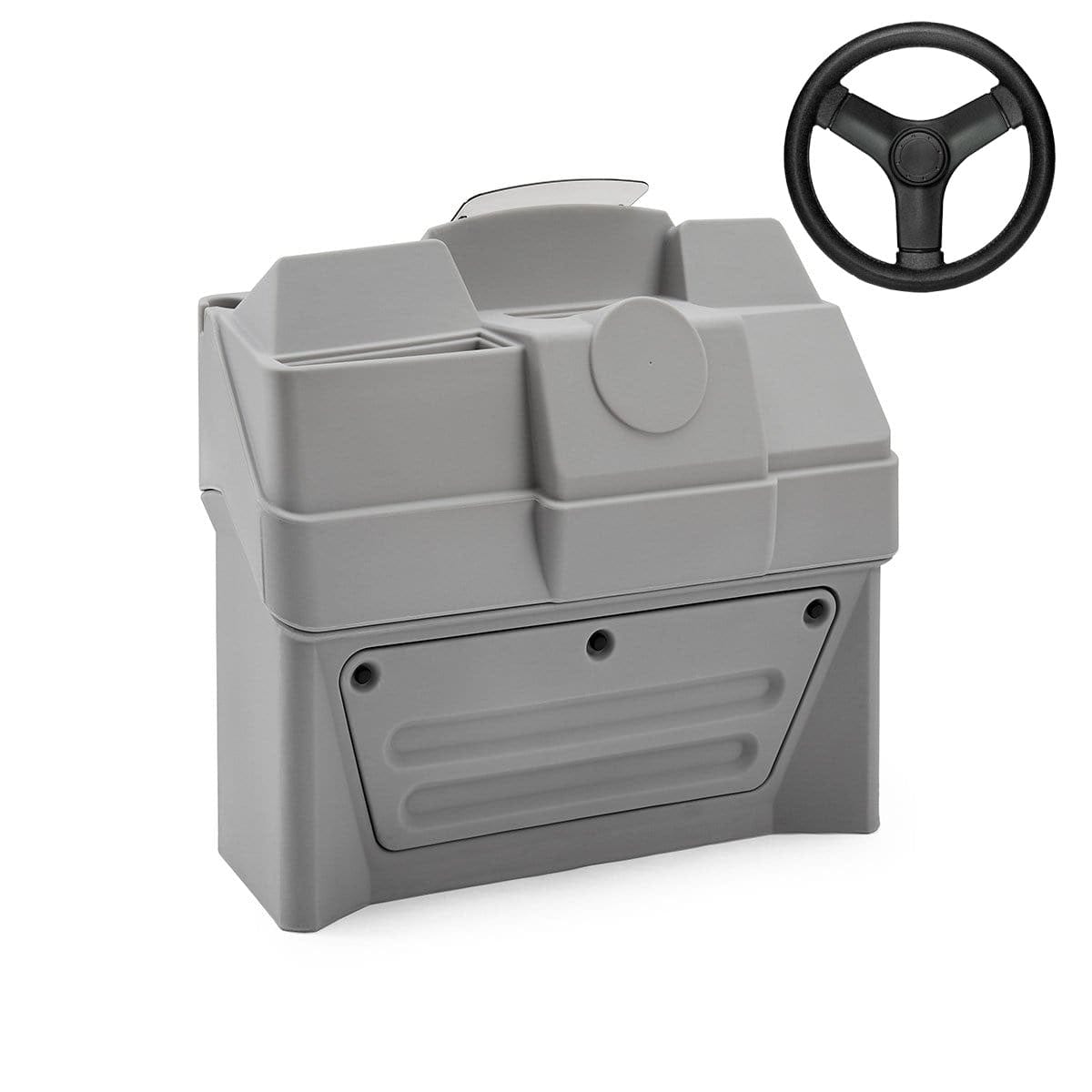

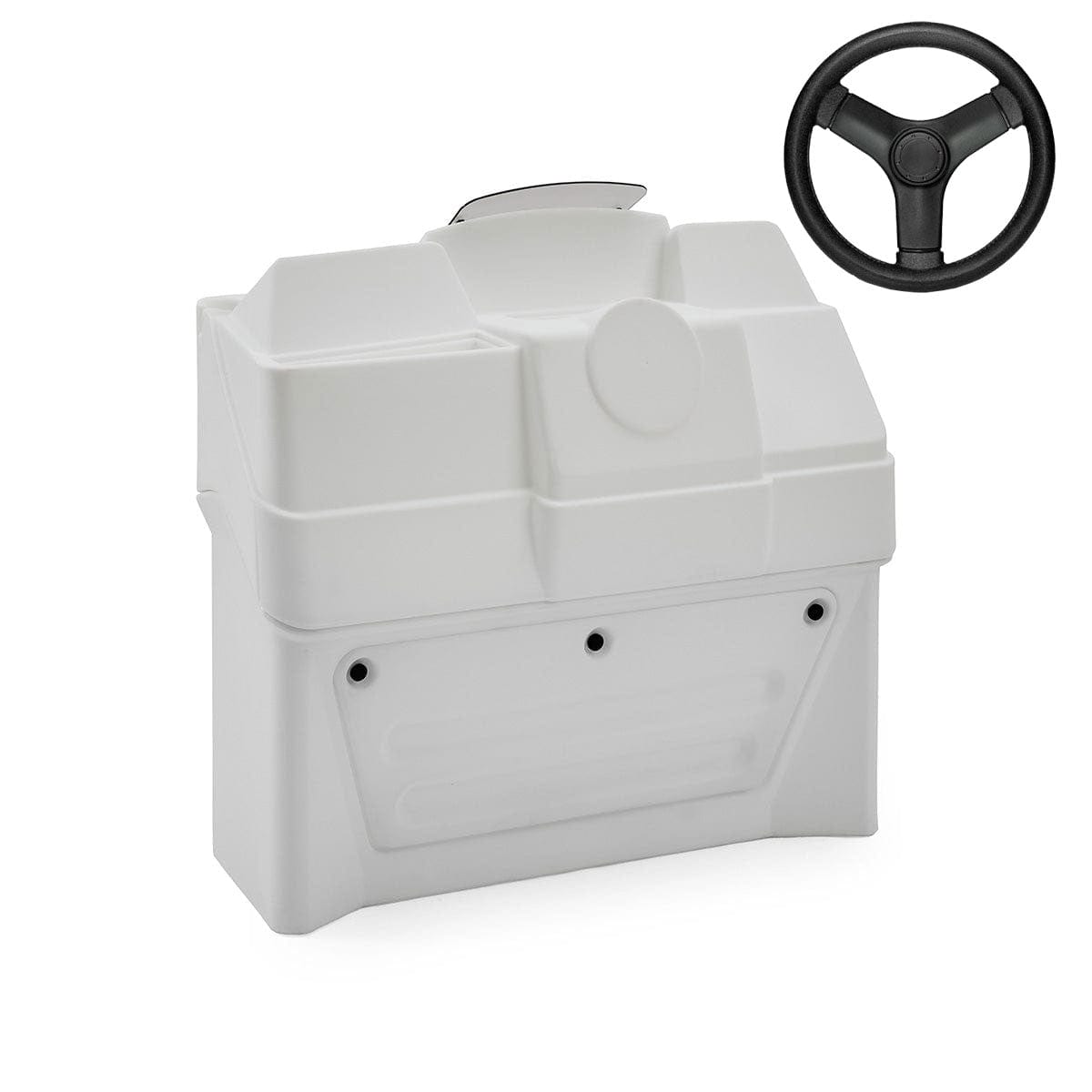

Black Steering Wheel Package Includes:

Large Console Base & Windshield
Black Steering Wheel
No switch or gauge panels included

Want to customize your console further? Shop our Pontoon Boat Consoles Parts Collection.

Specs

Dimensions:

Console

41" Width
38" Height
21" Depth

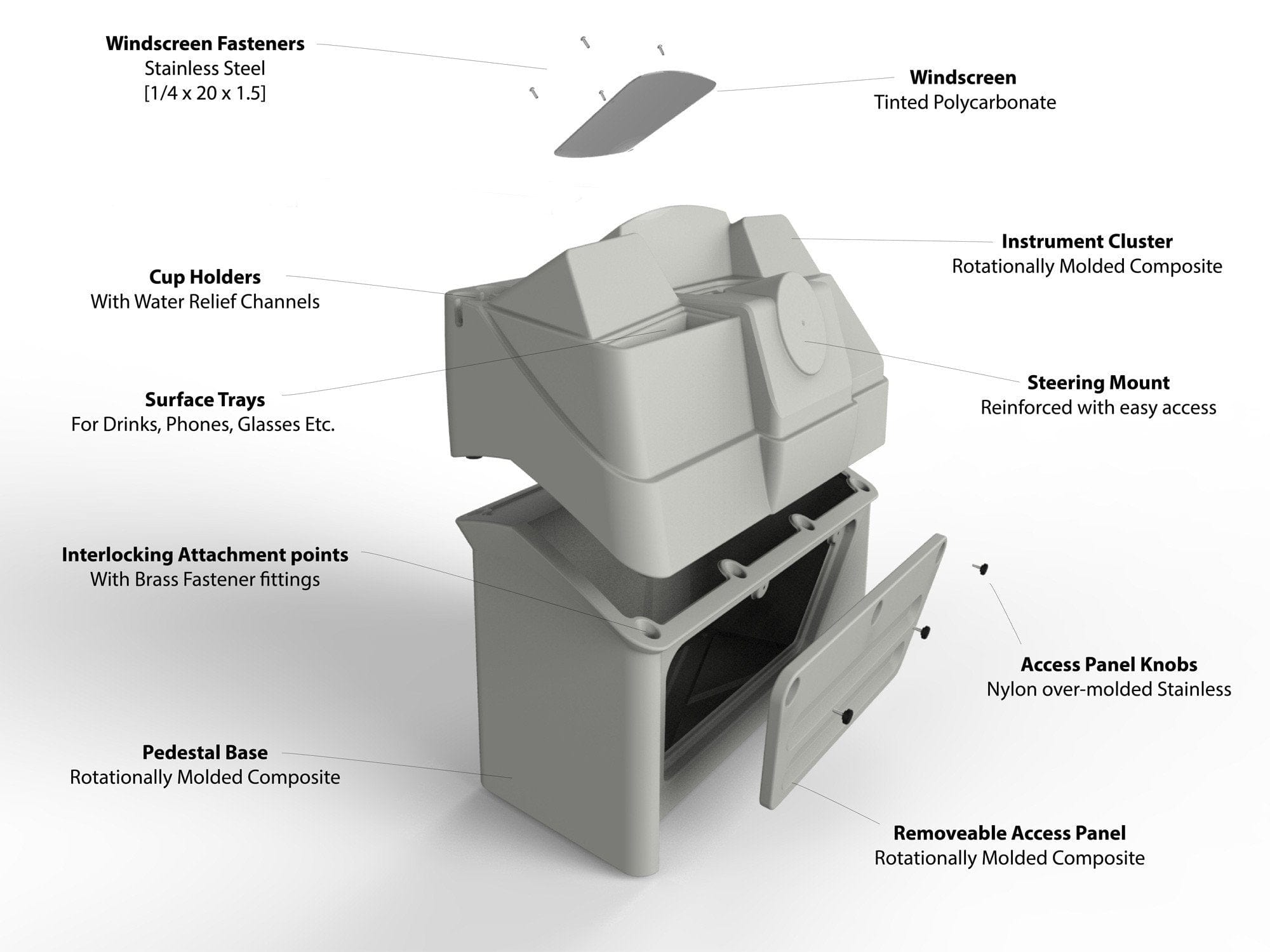

Removable access panel under dash allows you to bolt down top after you have installed all your steering and electrical items

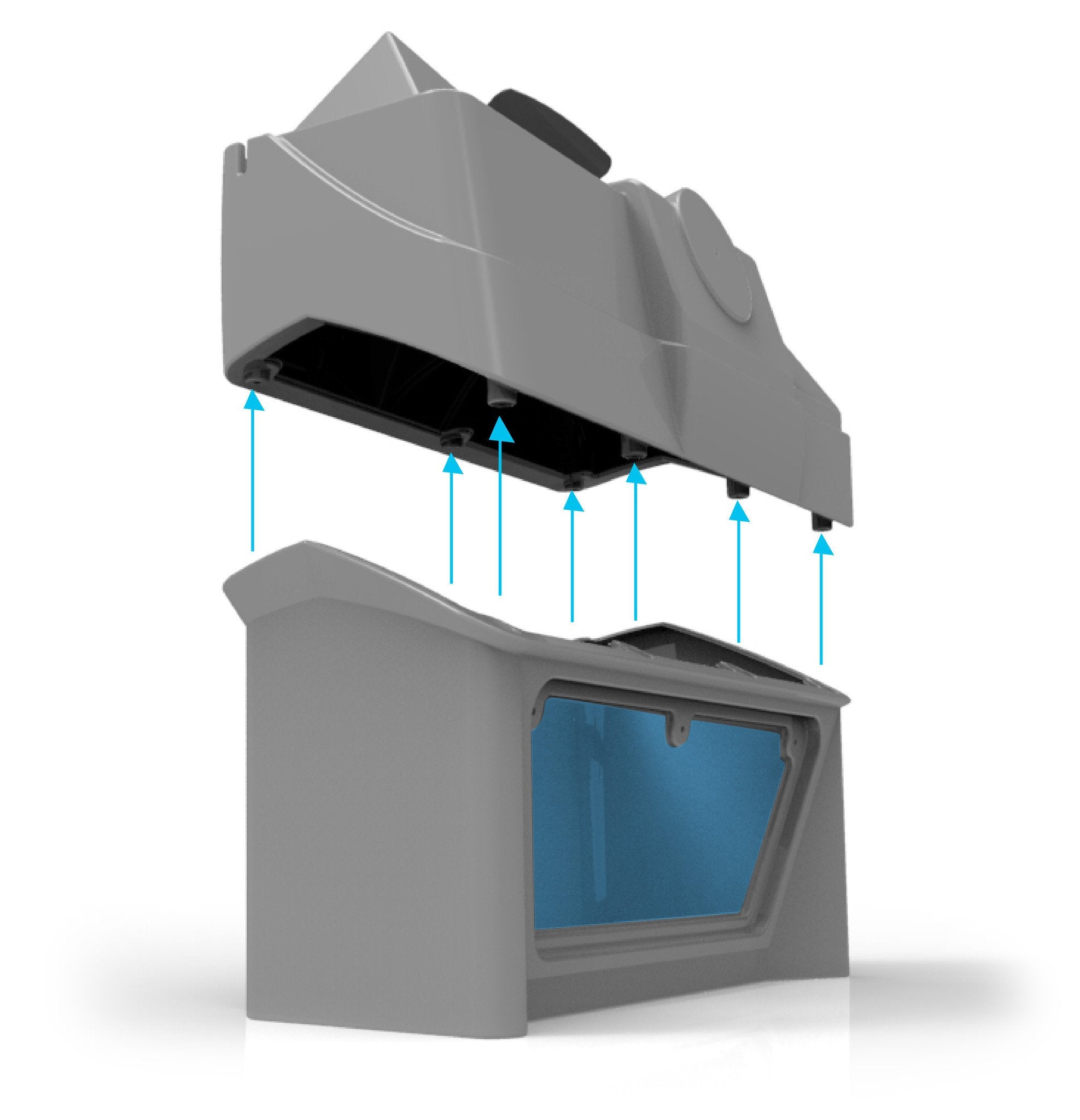

Instructions

Take the 1/4-20 Stud Bolts and insert them in the T-Nut inserts located on the underside of the Large Helm Top. NOTE: Make sure you do not twist the stud bolts more than 2 - 3 full rotations.
Place the top of the console on the base where the indent fits into the slots.
From the inside of the console, use the four (4) washers and four (4) wing nuts given to fasten the Large Helm Top to the Large Helm Base.
Once the Helm Top and the Helm Base are tightened, place the access door on with the three (3) Black Knobs to secure the door to the base.

Gauge Panel Instructions

Download Assembly PDF

DeckMate® Pontoon Consoles | 3D Builder Classic Large Pontoon Console | 3D Builder Package

$1,339.99

Detail Image of Beige Luxury Pontoon Boat Seat Stitching and Deckmate Tag

6 Year Warranty

Yes, we said 6 years! We fully stand behind the quality of our Deckmate™ products and want them to stand the test of time and water. Reference our warranty list.
