Pontoon Deck Kit w/ 24oz Pontoon Carpet
PontoonStuff® created the idea of Re-Deck Carpet Kits to make your project easier!
Important: We can only ship these decking kits to a commercial address with a fork lift. Your plywood kit will ship with FedEx Freight on a 4' W x 8' L pallet and the plywood will be secured with metal banding, please allow up to 48 hours for shipping. You will receive a total of 3 separate shipments when you order our Re-Deck Kit. Your hardware and glue will arrive first followed by your decking and carpet in two different shipments.
Note: Carpet is sent directly from the manufacturer and may take up to 48 hours to ship. It will arrive separately from your hardware and glue, which we will ship to you within 24hrs.
We will not ship glue if the temperature is under 32 degrees. We will ship once there is a break int he weather and we are able to do so.
Everything To Replace Your Deck & Flooring!
Pontoon boat deck kits come with the proper type of treated marine grade plywood, marine carpet and all the parts and accessories that will make your deck replacement project easy. PontoonStuff® created the idea of carpet and flooring kits so that you would have the right supplies for your restoration project. We supply you with the same plywood, hardware and carpet used on new pontoon boats.

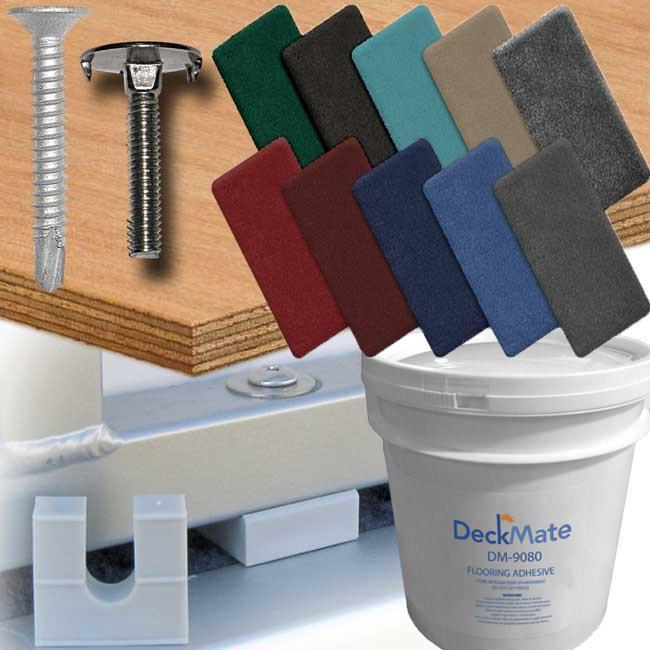

What's In The 24 oz Pontoon Decking Kit?

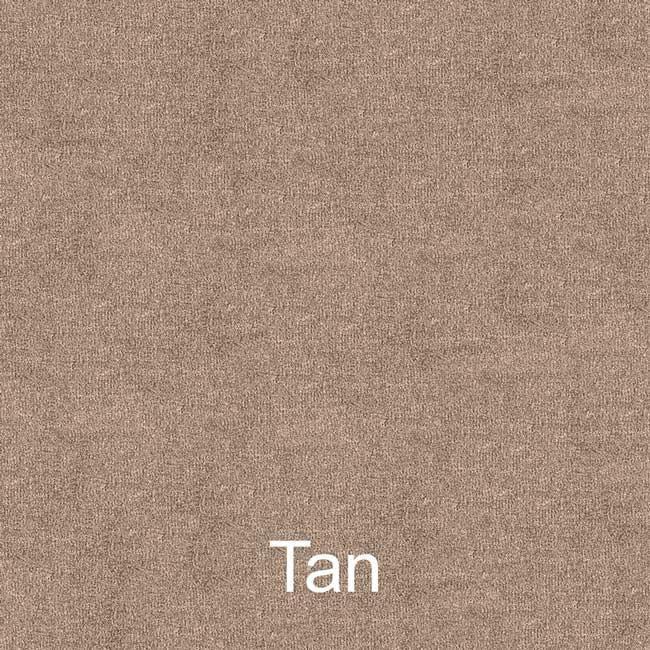

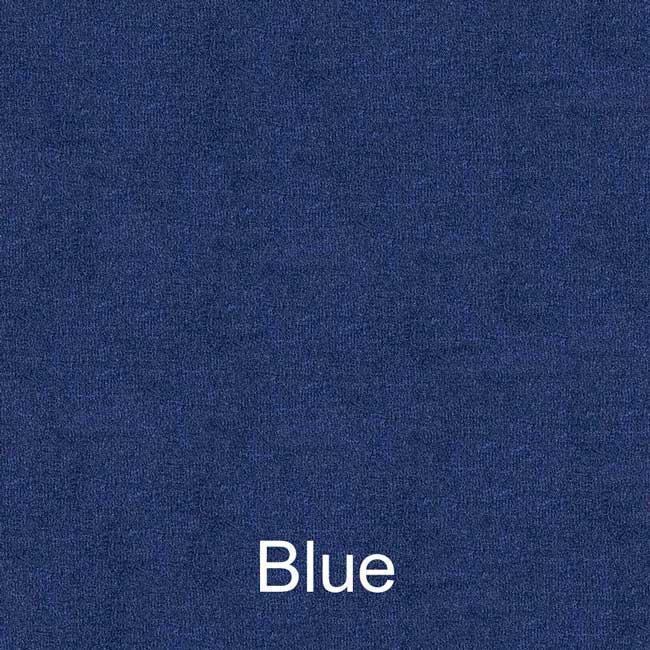

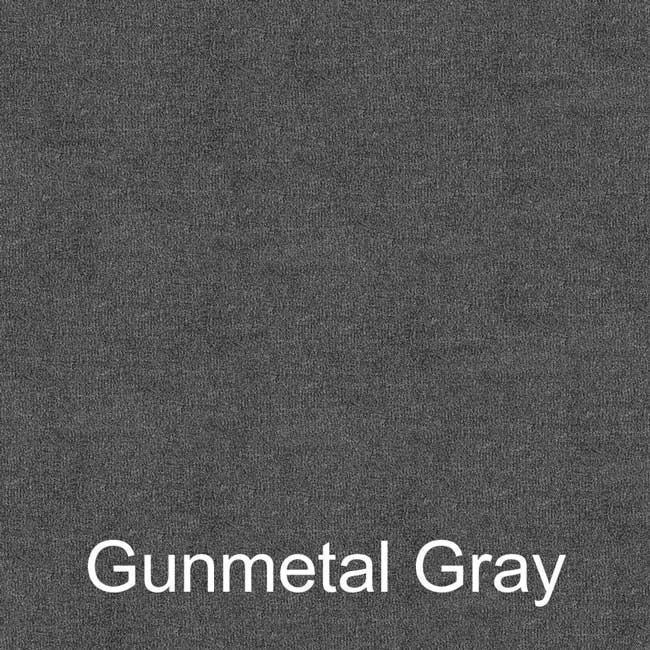

- Super premium, 24oz cut pile marine grade carpeting (select your size above).
- 4-7 sheets of CCA treated, marine grade plywood depending on your deck size.

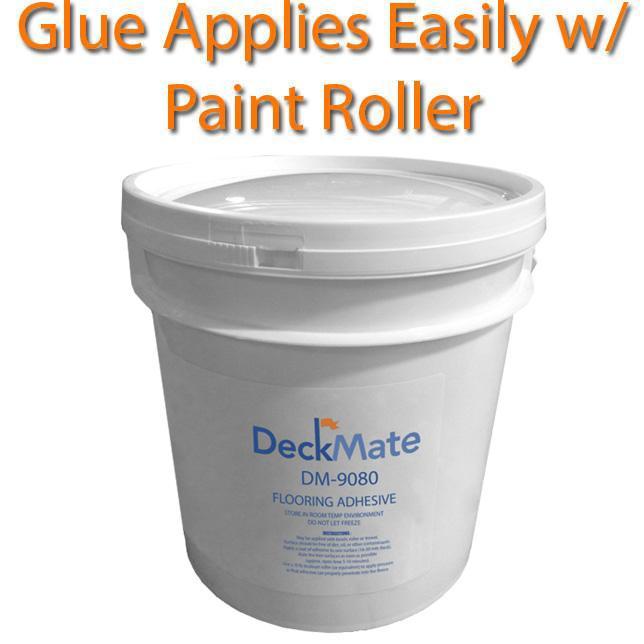

- 2-3 gallons of carpet glue (16'-24' kits include 2 gallons, 28' kits include 3 gallons).

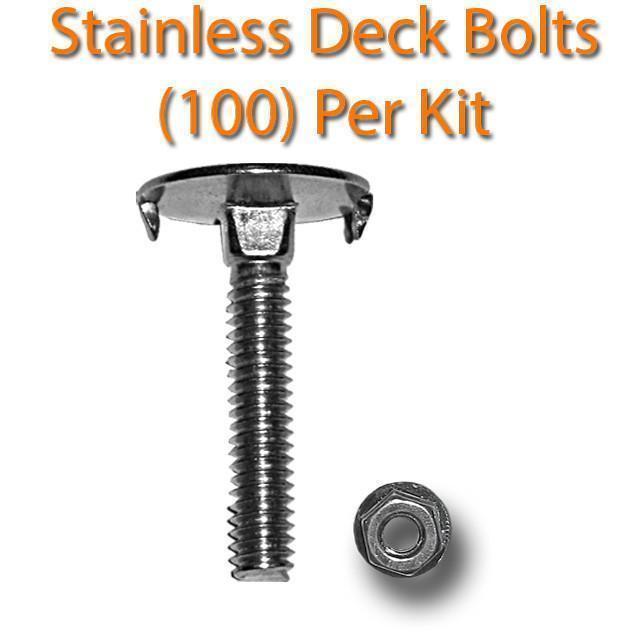

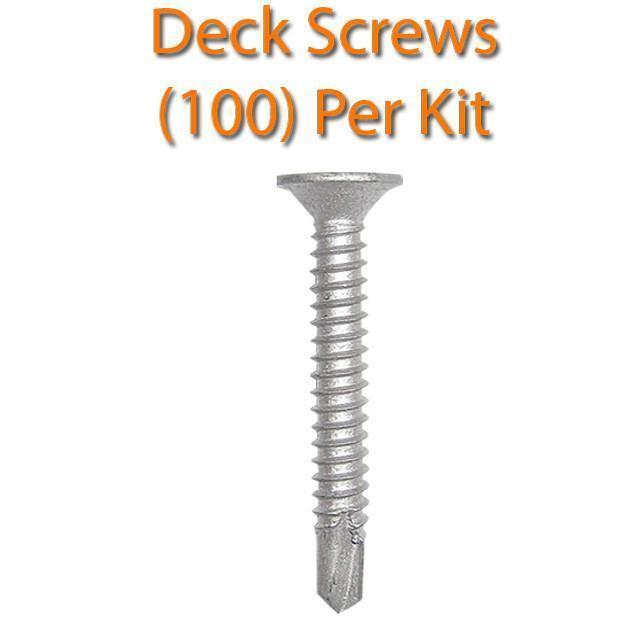

- (100) deck fasteners, choose from self-tapping screws or stainless bolts.

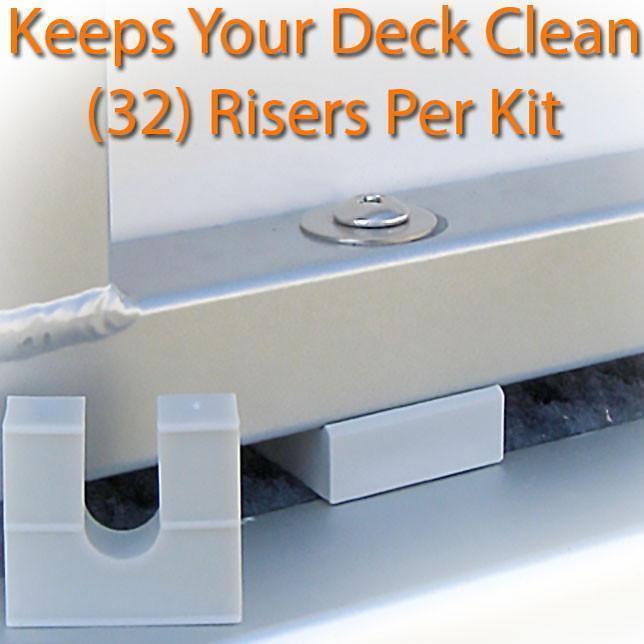

- (32) pontoon fence risers lift your railing off the carpet (no dirt around your rails).

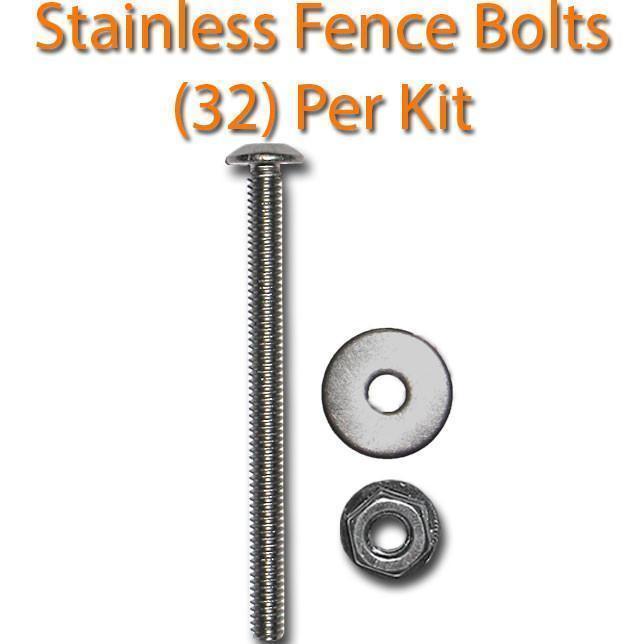

- (32) stainless pontoon fence bolts to fasten your railing back down to your flooring.

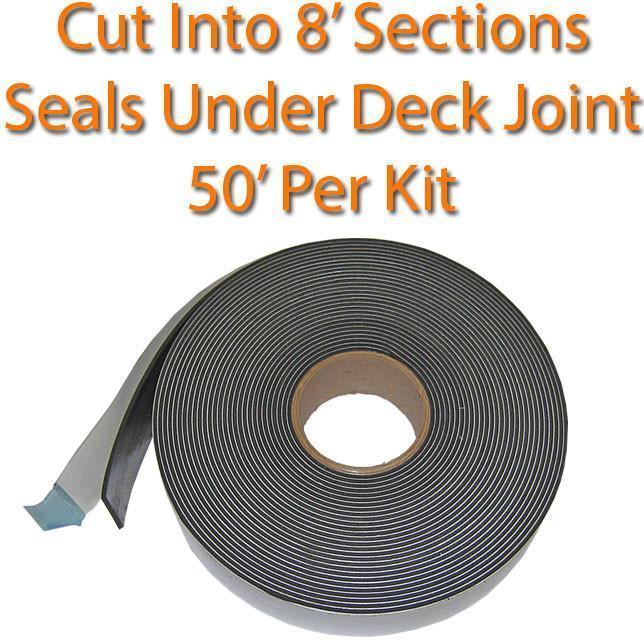

- 50' roll of deck seam tape, lay over the cross members to seal the plywood joints.
- Space your deck screws or bolts 16" apart when securing your decking.
- Apply adhesive to your deck using a medium nap paint roller.
- Use a roller or stiff broom to firmly press your new carpeting down into the glue.
- Install your fence risers under each bolt that secures your railing to the deck.
- Cut the deck seam tape into 8' sections and lay it on top of the aluminum cross members connecting your tubes. The deck seam tape seals the joints where your plywood comes together, preventing water from working its way up under your carpet.
CCA Treated Marine Grade Plywood
- Plum Creek Marine Tech PTP, the finest marine grade plywood available.
- 7-ply, CCA treated marine grade plywood is kiln dried.
- BC Marine Plywood - premium marine grade decking for use on pontoon boats.
- 40 year warranty - if your deck rots we will replace all your flooring.

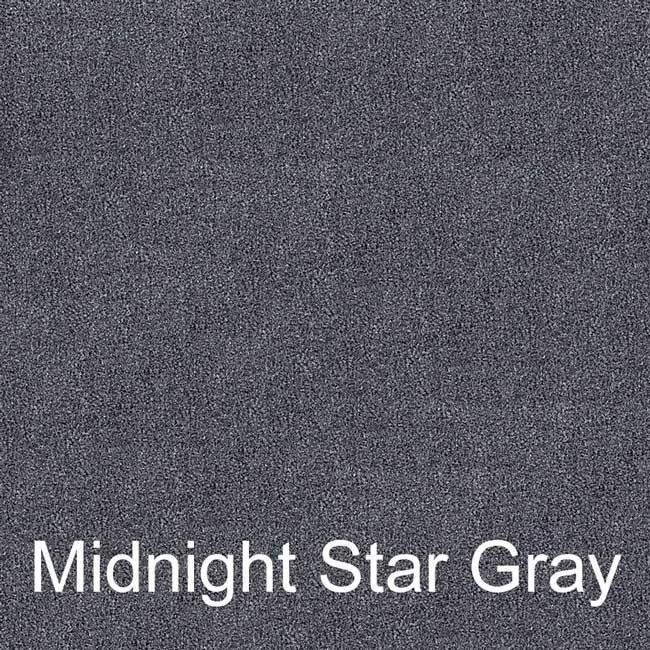

Our Finest Non-Patterned Pontoon Boat Carpet
- 24oz pontoon carpet is extremely durable and comfortable, only our 28oz is thicker.
- Carpet weight determines how dense the fibers are stitched and how plush & durable the carpet will be.
- The higher the ounce or weight of the pontoon carpet the more durable & comfortable.
- We offer (3) three styles of non-textured pontoon boat carpet, 16oz, 20oz and 24oz.
Rubber Backed Marine Carpet
- Our pontoon boat carpet has a marine rubber backing that is designed to glue down to your boat's deck
Cut Pile Marine Grade Carpet
Boat Carpet Specifications
- Fiber: 100% UV Stabilized Polypropylene
- Denier: 2600
- Primary Backing: Woven Polypropylene
- Secondary Backing: SBR Marine Latex
- All of our marine grade pontoon boat carpet is covered by a 3 year warranty.
- Marine grade plywood is warrantied for 40 years against any deterioration.
- Carpet warranty covers any fading or deterioration.
- Please remember that this style of boat carpet is designed to be glued completely to the deck of your boat.
- If you do not use the proper amount of glue the backing will not stick to the deck and will deteriorate quickly.
Care & Maintenance
Marine carpet is inherently stain resistant but you must remove the stain quickly to ensure it will come out. We recommend periodic vacuuming & cleaning with household detergents and warm water. Following these recommendations will help your boat carpet retain it's original appearance & prevent matting.
How To Replace Pontoon Boats Deck
- Check out our pontoon forum for complete pontoon restorations and learn how to replace the deck and carpet on your pontoon.
Q: How do I replace the plywood on my pontoon boat?
A: Our pontoon deck kits come with everything you need to replace the flooring on your pontoon boat. It is extremely important that you use the correct type of hardware and plywood for your rebuild. The pontoon kits we sell come with the same parts and accessories new pontoon manufacturers use when installing the decks on their pontoons. First of all you must use CCA, treated marine-grade plywood. The EPA changed the laws regulating the treatment of plywood used in residential construction and therefore the process in which most plywood is now treated. Non-CCA treated plywood has a chemical compound in it that will interact with metals causing them to deteriorate. CCA treated plywood uses chromate copper arsenate which provides superior resistance in outdoor applications against rotting and insect infestation. Our 7-ply, 3/4" marine grade plywood is made from 7 layers of Douglas Fir, uses marine adhesives and is pressed then kiln dried to prevent warping. It has a 40 year usable lifetime warranty.
Our kits come with the right type of plywood so you won't ever have to do this project again. In order to start your rebuild you are going to need to tear the pontoon boat all the way down to the aluminum frame. Everything needs to come off; the seating, railing, decking, etc. If your carpet is not easy to remove simply cut it at the seam where two sheets of plywood join, cut the heads of the bolts under the frame of the pontoon and tear the decking off. If you have screws holding the plywood down you can use a hole saw to cut around each screw then remove the plywood, go back with a grinder and remove the fasteners once the plywood is removed.
Before you lay your plywood on the aluminum stringers it is important to use our Deck Joint Tape, this all weather foam sealant seals the joints where your plywood comes together. This will seal the joints of the plywood so that water cannot penetrate from underneath the pontoon causing water lines and damaging the glue holding your carpet down. Start in the rear of the pontoon boat and lay all of the sheets of plywood across the framework. Run the plywood up the deck 8' wide by 4' so that the joints or seams are 8' across the pontoon. You will attach the decking to the aluminum cross members with either stainless self-tapping screws or deck bolts (your choice). Deck screws are easier to install and use a self tapping tip, for installation with deck bolts you will need to pre-drill the holes first. Our pontoon deck screws have teeth on the head which will hold the bolt while you fasten the nut. Once you have determined your plywood is squared up and ready to be attached to the pontoon's framework you can begin fastening down. We recommend using a fastener every 16" across the plywood. Our pontoon kits come with 100 bolts or screws so you will have enough. Remember that when you fasten the railing back down you want to try to fasten the railing bolts down through the aluminum tube of the railing, through the plywood and down through a cross-member for added strength. Once your deck is down, install your pontoon carpet, see below.
Once your carpet is installed you can install your pontoon railing. Our pontoon deck kits come with risers that you place under your fencing at every bolt that holds the railing down. These fence risers will lift your railing up off the boat carpet to allow water to escape your deck rather than pooling in corners and causing deterioration and moss build up.
If you have any questions, call us and ask. We can walk you through whatever problems you may encounter.
Q: How do I install new carpet on my pontoon boat?
A: In order to install your boat carpet you must remove all of the old carpeting and adhesive from the deck of your pontoon. Also, it is important to fill any voids or delaminated areas on your existing deck with wood putty or fiberglass filler. If you do not remove the old carpet and glue or if you do not fill the voids in an existing deck you will feel the imperfections under the carpet and most importantly any left over adhesive may interact with the new glue, preventing it from bonding with the back of the carpet.
If your deck is clean and the surface area is ready for the new carpet then read on, if you are having difficulty removing your old carpet please see below where we discuss the problems you may run into
Before applying any glue to your deck roll your new pontoon carpet out completely over the deck of your boat so that you can inspect it. Occasionally carpet will have imperfections in it which we may miss or it can get damaged in shipping, now is the time to discover any problems. Do not glue your carpet down before you inspect it. Call us immediately if you have any problems so that we can replace the carpet for you. Once you have the carpet rolled out and it looks good, fold it in half the length of the deck. For example, if you have a 20' pontoon boat, get in the front of the boat and fold the carpet over width wise and do the same in the back leaving a 4' wide by 20' long section of your deck exposed. Your carpet will be folded on top of itself on the other side of the deck so that you can apply glue to half of the decking.
By folding the carpet this way it makes installation much easier, you can apply the glue by standing on the side of the pontoon, without needing to get on your hands and knees. Each gallon of glue will cover an 8'6" x 12' area, so if you have a 16-24' pontoon boat use one gallon per side, if you have a 25-30' pontoon you will need a total of 3 gallons of glue and will use 1-1/2 gallons per side. Take your first gallon and dump it evenly across the exposed 4' x 20' wide section of the deck and apply the glue using a medium nap paint roller. Be sure to spread glue as far into the center when the carpet is flipped to one side so you don't end up with any areas that are not covered with the glue. Once the glue is applied lay the carpet out over the entire deck and make sure it is flat and squared up. You will not have much time to work with the carpet once you lay it on the glue, so be sure it is lined up on the deck properly before you begin applying the glue.
Next you must compress the carpet into the glue. The carpet backing is not smooth and has grooves and lines in it as well; the glue will be pressed into these areas forming a bond which will hold the carpet in place once the glue hardens. Use a heavy roller, you can rent a carpet roller or use a heavy pipe to press the carpet down onto the glue. This is the most important step, if you do not press the carpet down hard enough the glue and carpet backing will not bond together causing it to come up or creating lines and bubbles in the carpet.
Q: How do I remove the old carpet? What if it doesn't come off easily or only comes off in small chunks?
A: If your pontoon boat is a 2000 model year or newer you may experience difficulty when removing the carpet. Newer pontoon boats use a heavier carpeting and a stronger glue than was used in the 70's, 80's and early 90's. Boat builders applied special marine adhesives that provide excellent adhesion and heavier backed carpeting than you see on the older model pontoons. Also, since these boats are newer the carpet and glue have not deteriorated to the point where it is easy to remove them. On most older pontoon boats the carpet will come off fairly easily with some scraping, cutting and tearing. If you find that your pontoon carpet is only coming off in small chunks and that you cannot seem to remove the old adhesive and fibers you can try renting a floor sander or simply replace the decking.
To remove the decking without taking up the carpet, if you choose to replace the flooring, here is how you do it. First, find the seams where the plywood decking meet up, take a razor knife and cut across the floor separating the carpet on each sheet of plywood. If the plywood deck is bolted down, cut the heads off the bolts under the deck and rip the decking off. If the deck is screwed down, use a hole saw and locate the screw heads, cut around each head and tear the decking off. Then use a grinder to remove the screws and plywood plugs that are left over. You may find that the cost of the plywood is worth it compared to the time and energy you will spend trying to remove carpet that won't come off.
Questions & AnswersAsk a Question
DO YOU HAVE TO SPOTFACE THE PLYWOOD WHERE THE STAINLESS STEEL BOLTS GO SO THE CARPET ISN'T RAISED?
Some customers have done this but as long as you bolt them down tight you should not need to. The bolts are designed to pull into the wood to give you an almost flush finish plus the 24oz carpet is thick enough that you will not even notice the bolts underneath.
