Wiring harness and Steering System will need to be purchased separately. If you add the gauge and switch panels, they will not be pre-installed.

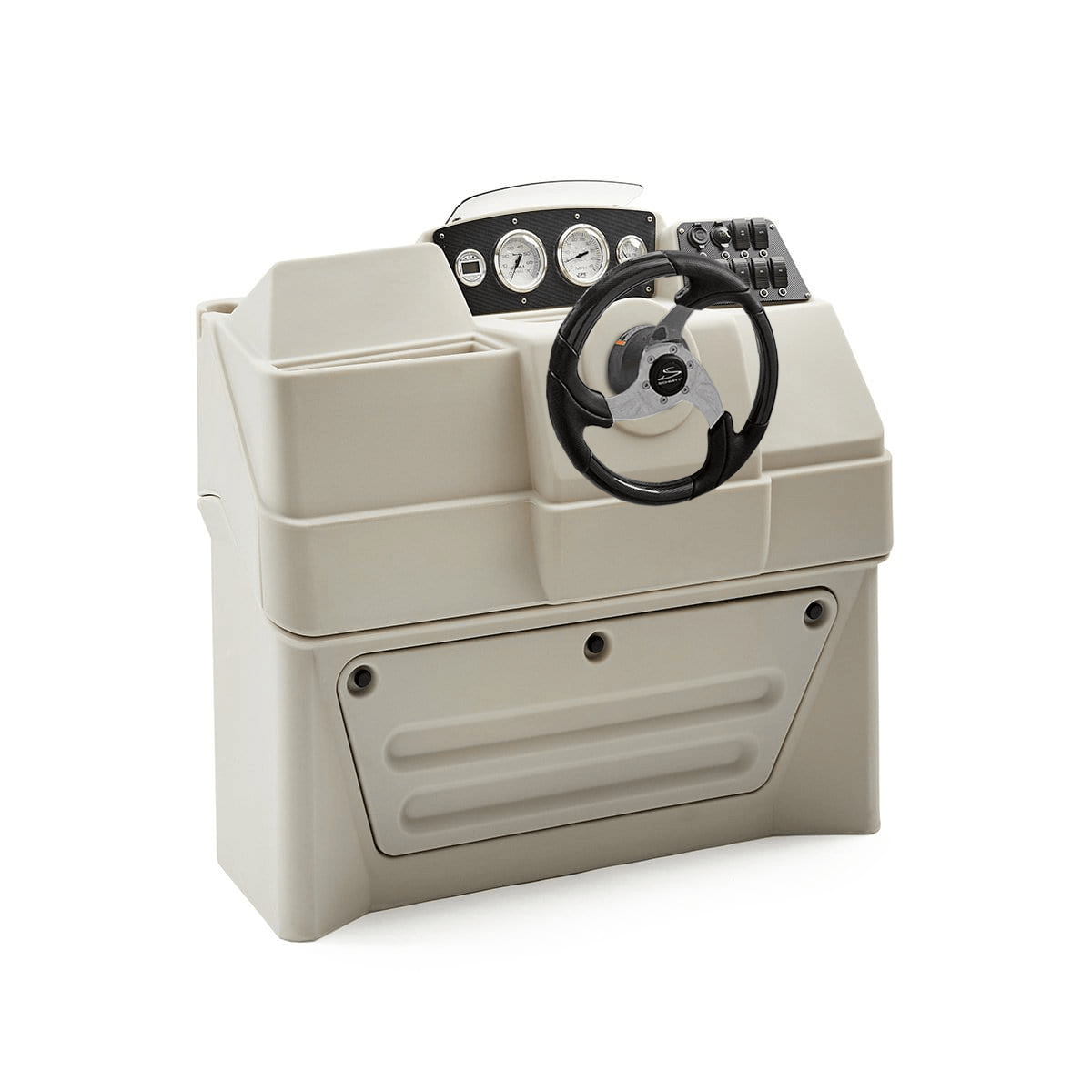

DeckMate Large Pontoon Console - Complete Helm Package

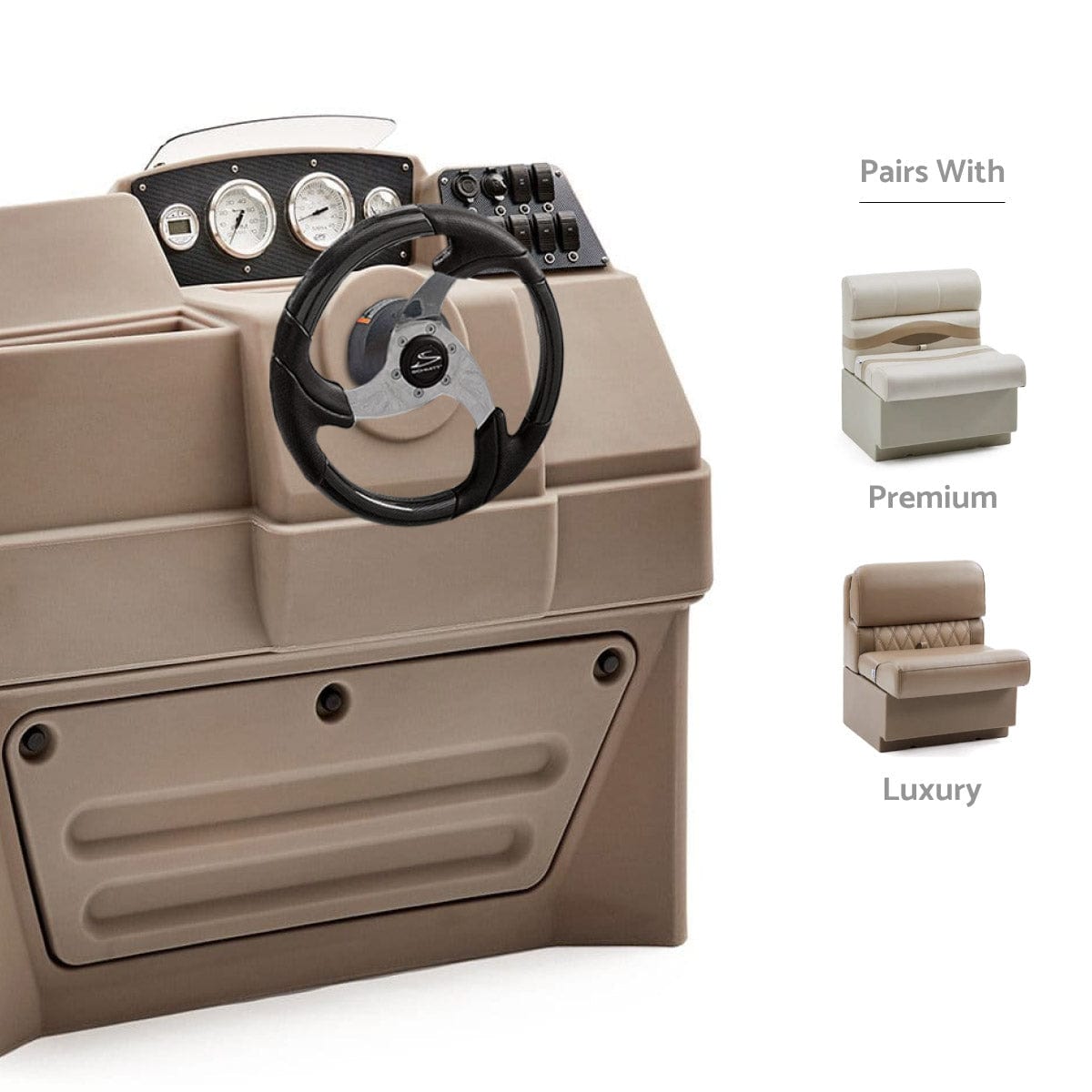

Upgrade your pontoon boat console. Match our Classic, Premium, & Luxury DeckMate® seats perfectly and personalize your helm with multiple Helm Package options.

Factory-Grade Electronic Parts
No wood! All of our pontoon furniture frames are plastic. We use rotationally molded plastic bases.
High-grade stainless steel hardware and staples are used on our pontoon consoles, along with t-nuts, which are inserted into the plastic bases to secure each pontoon seat cushion.

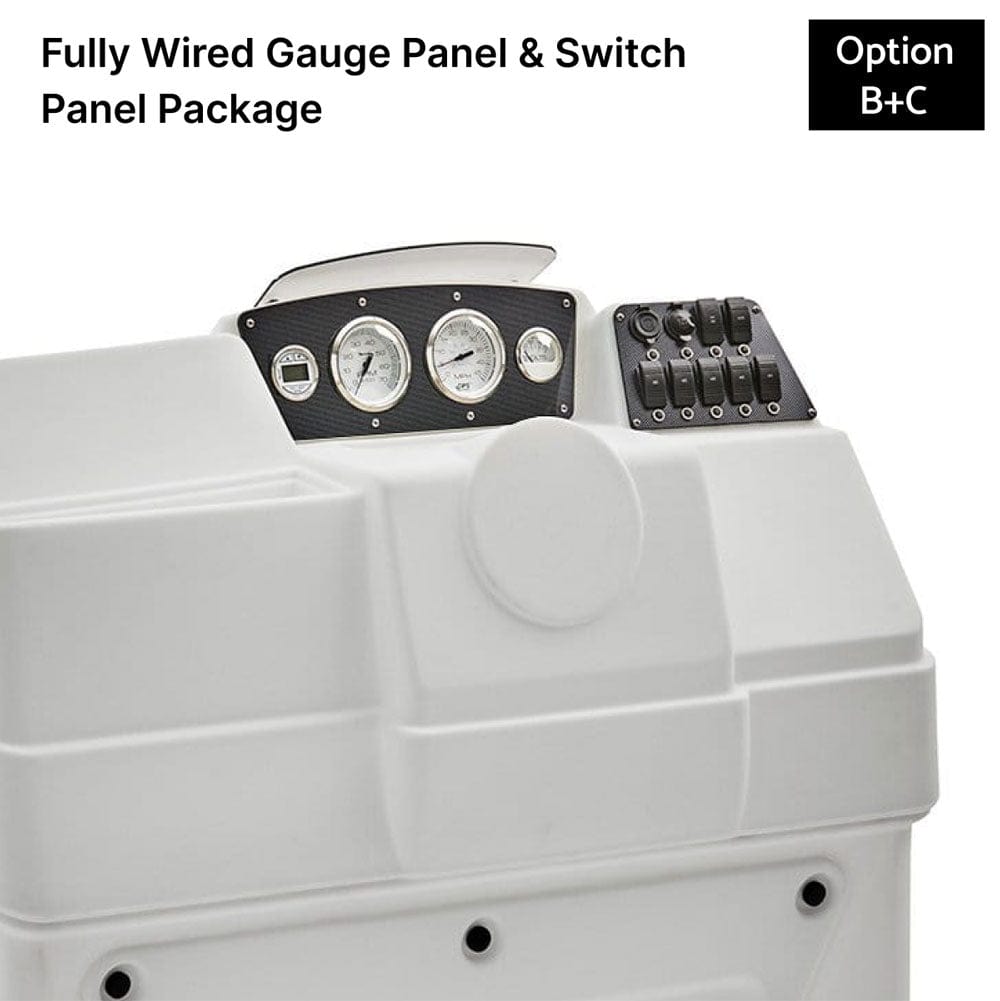

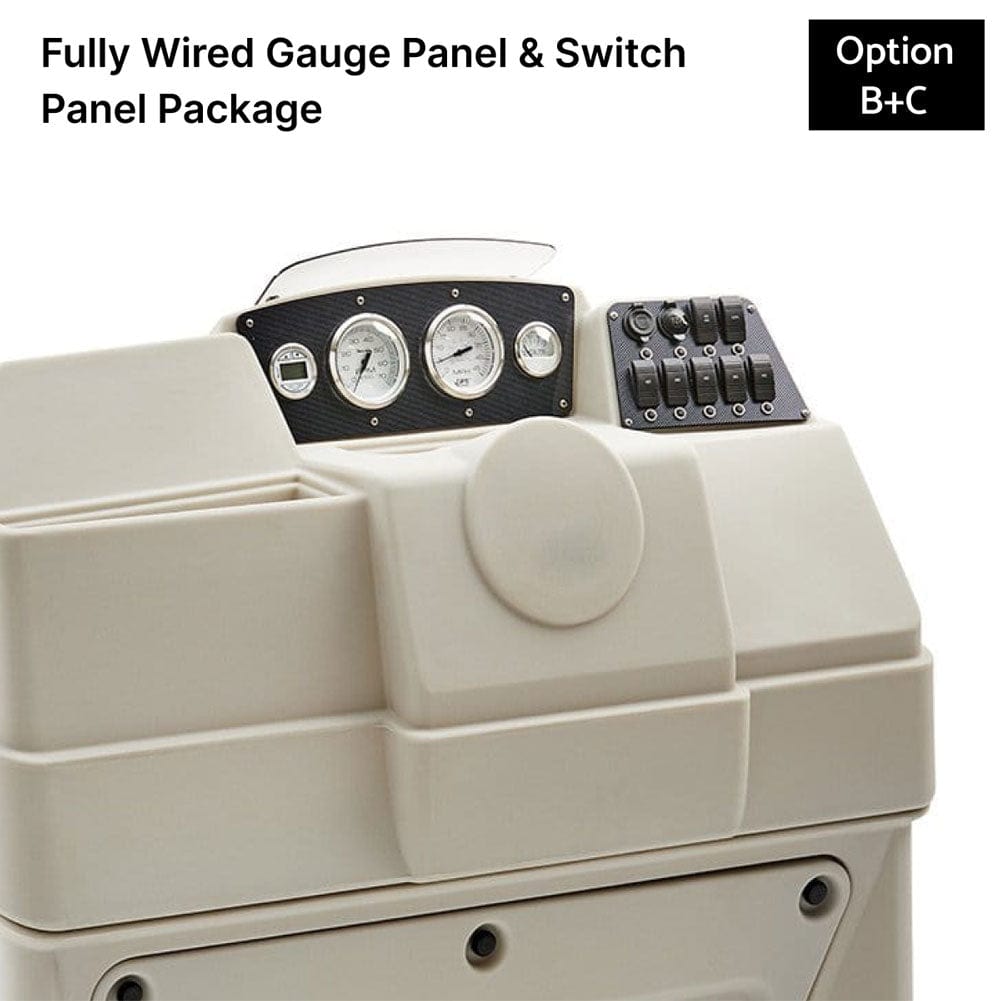

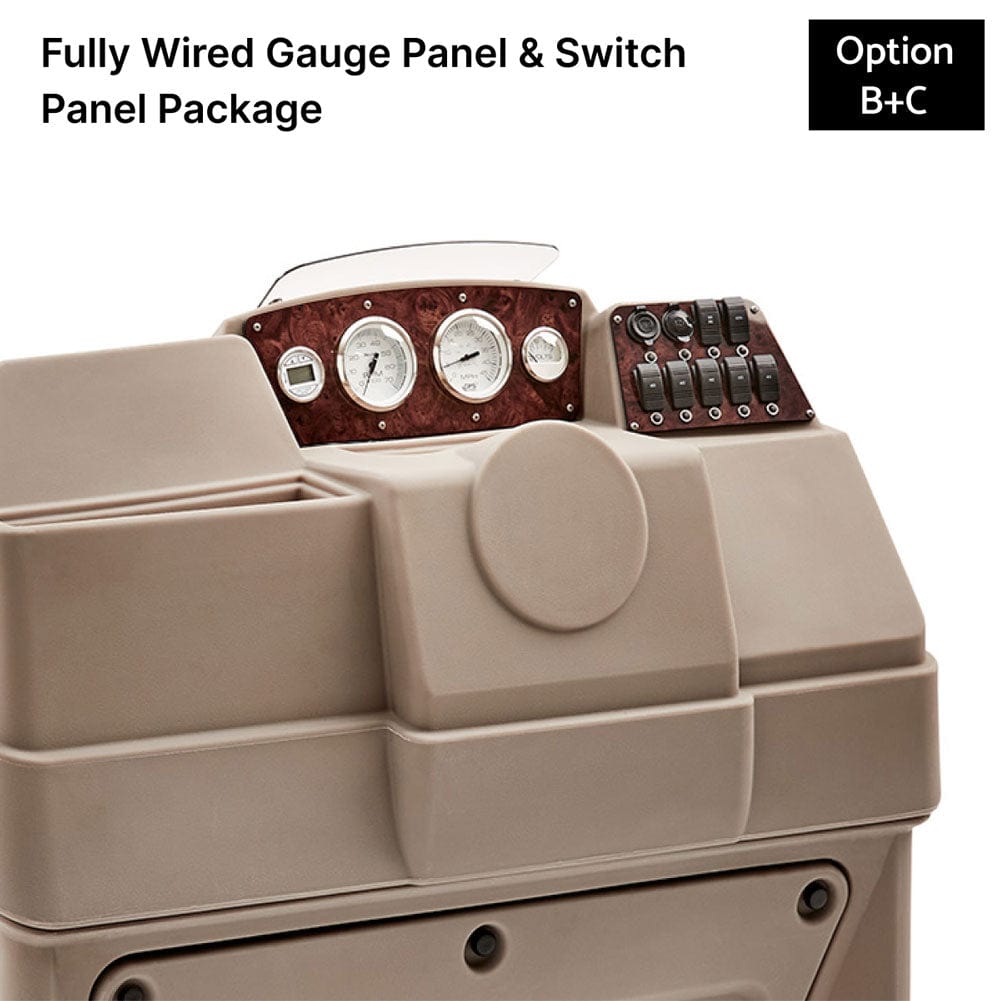

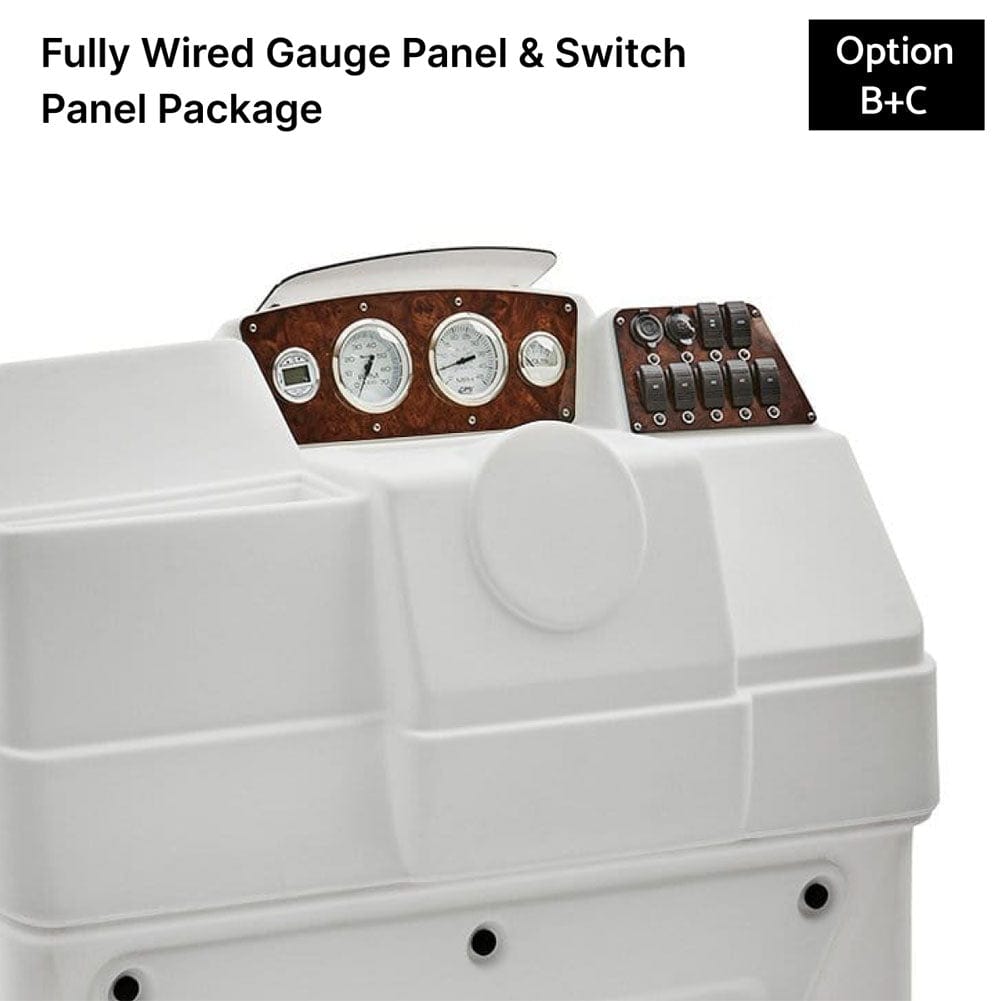

(B + C) Package Includes:

Deluxe Console Base & Windshield
Accent Panels (Carbon Fiber or Burl)
(B) Fully Wired Switch & USB Panel

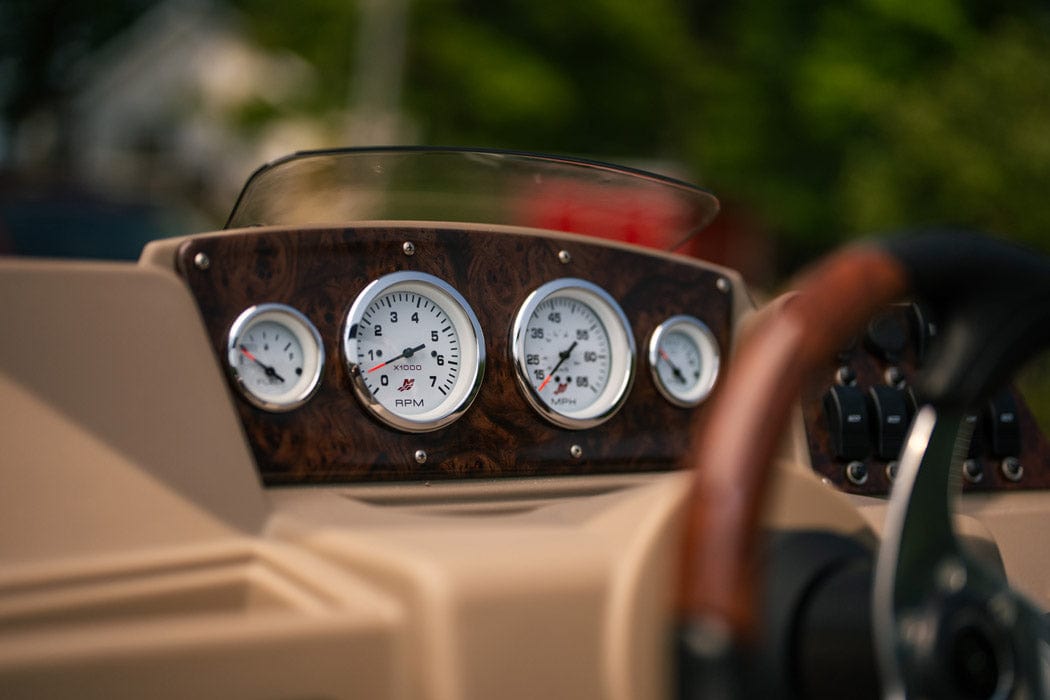

(C) Fully Wired Gauge Panel - Tach | Speedo | Depth Sounder | Volt Meter

(B + C) Package Includes:

Deluxe Console Base & Windshield
Accent Panels (Carbon Fiber or Burl)
(B) Fully Wired Switch & USB Panel
(C) Fully Wired Gauge Panel - Tach | Speedo | Depth Sounder | Volt Meter

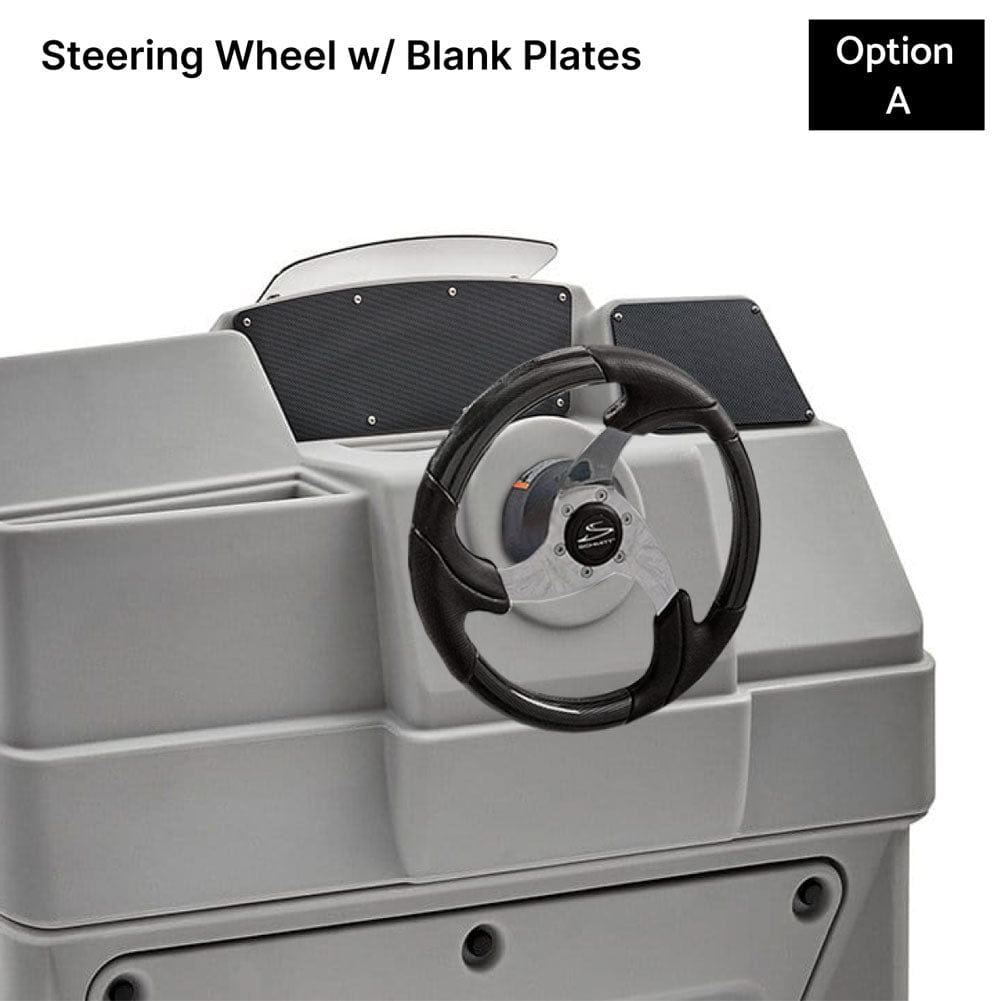

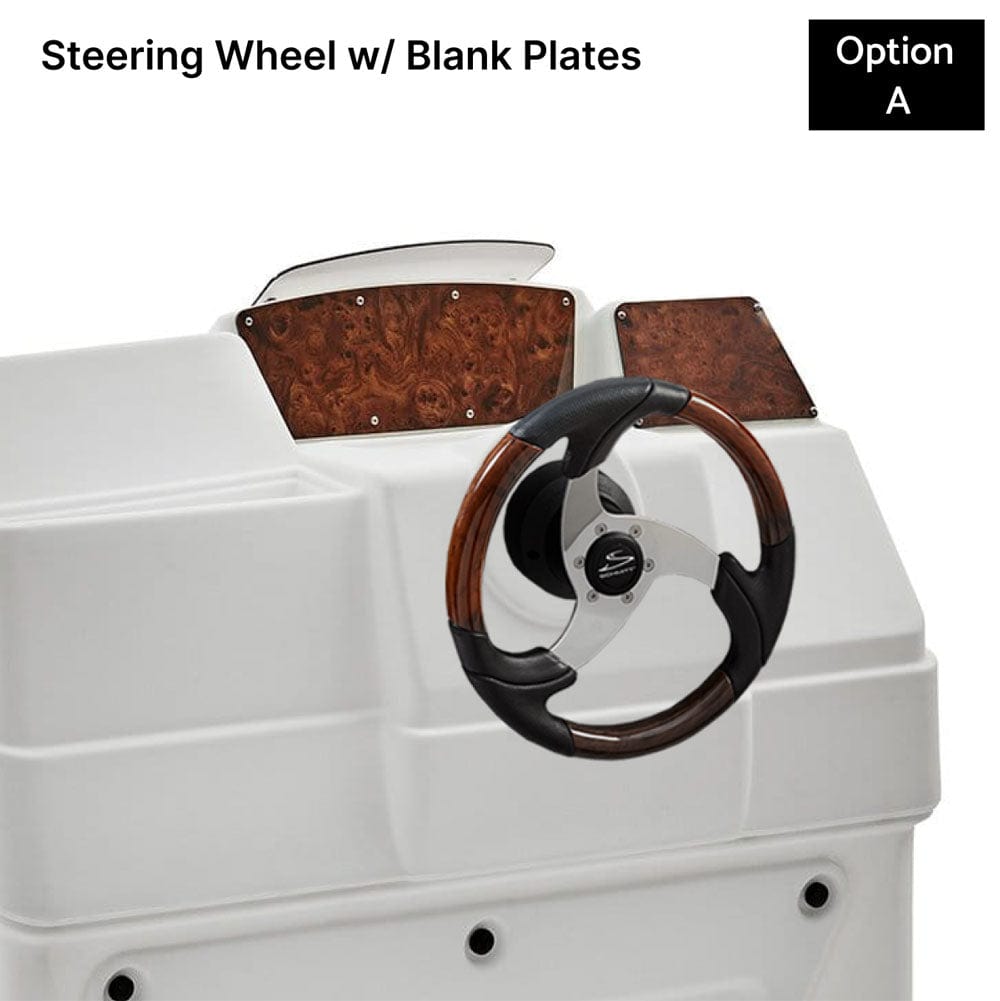

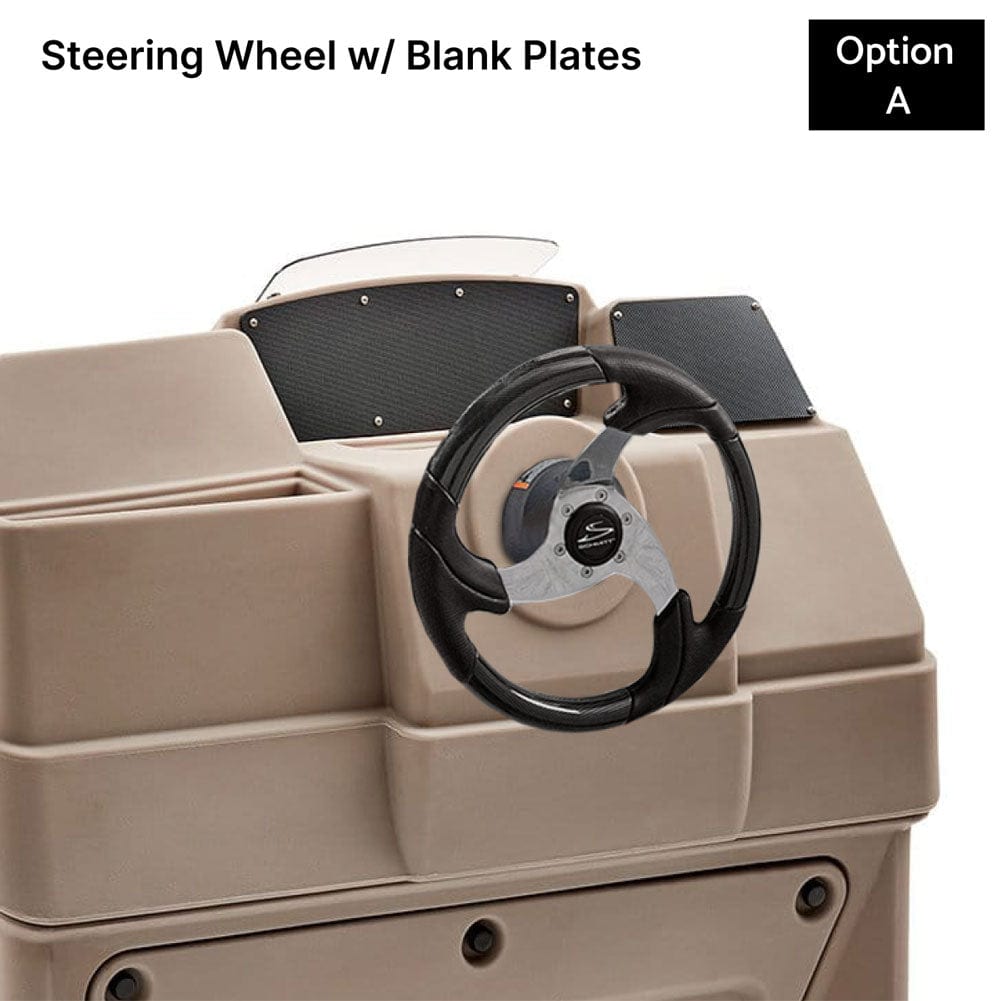

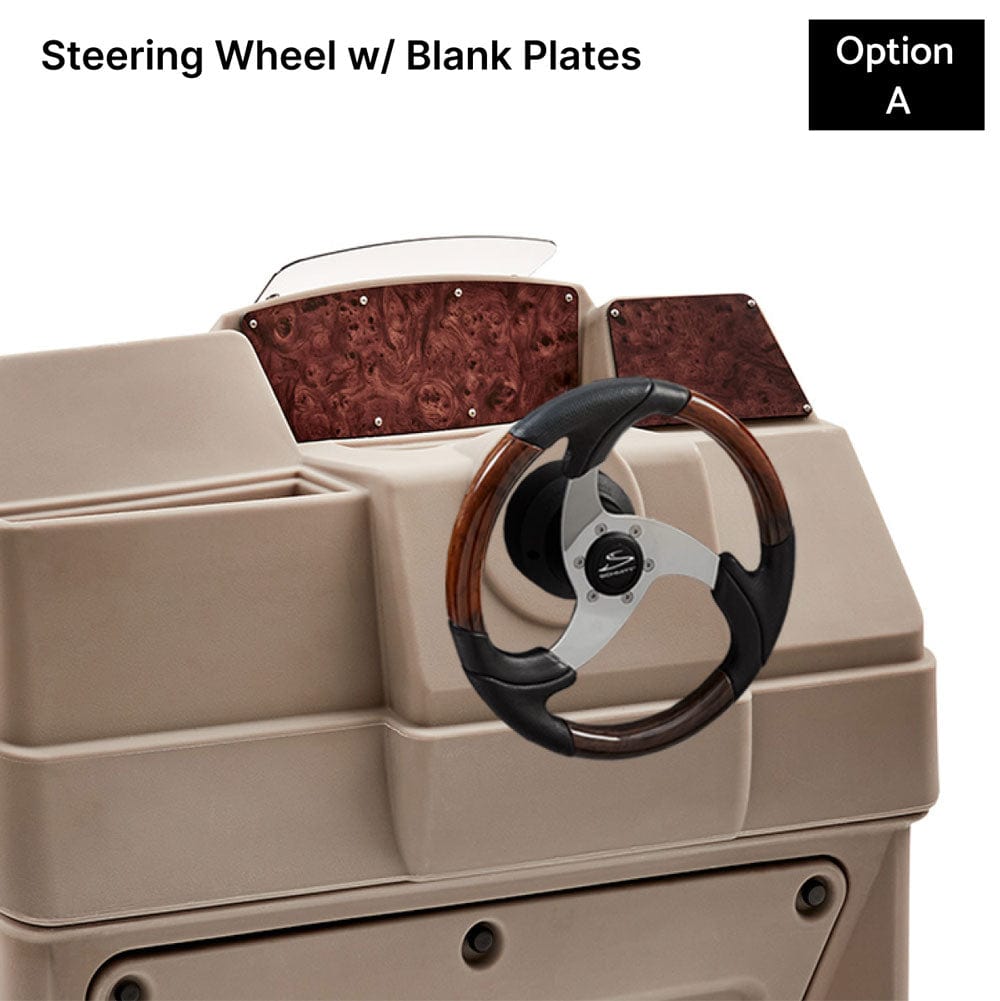

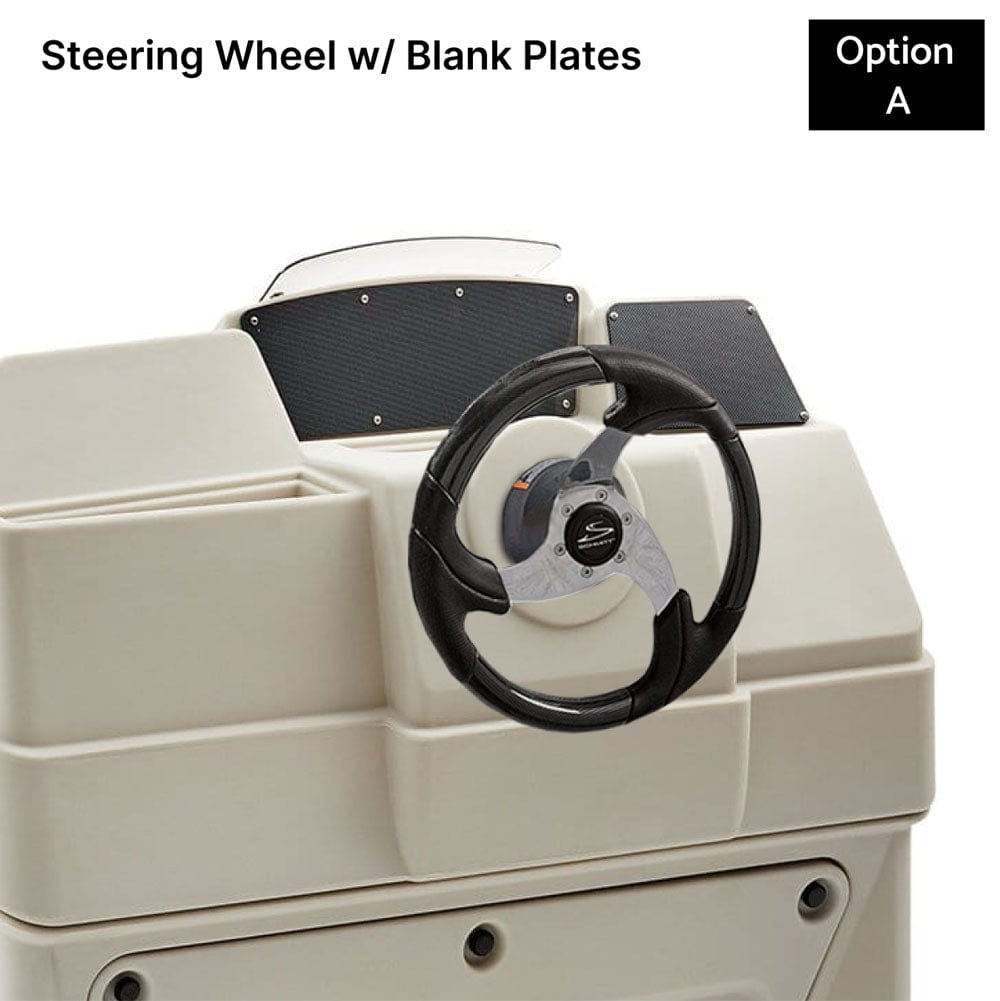

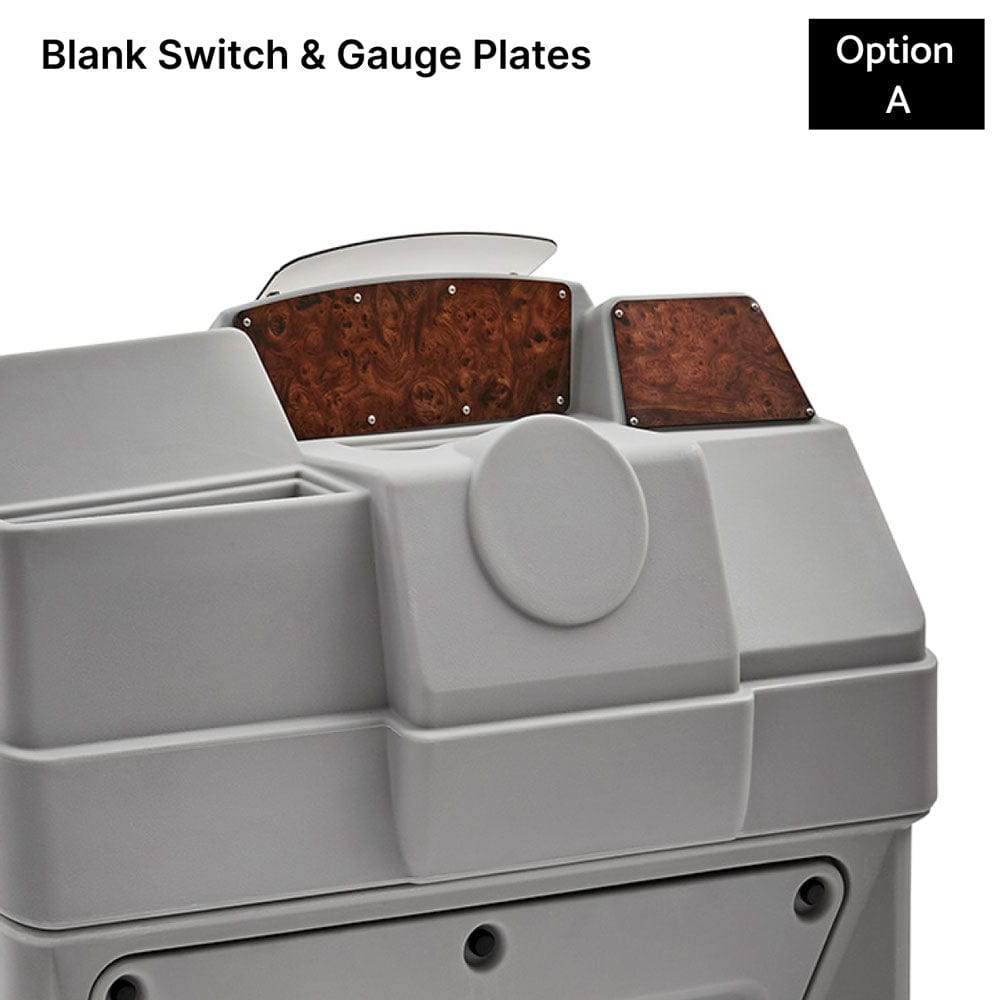

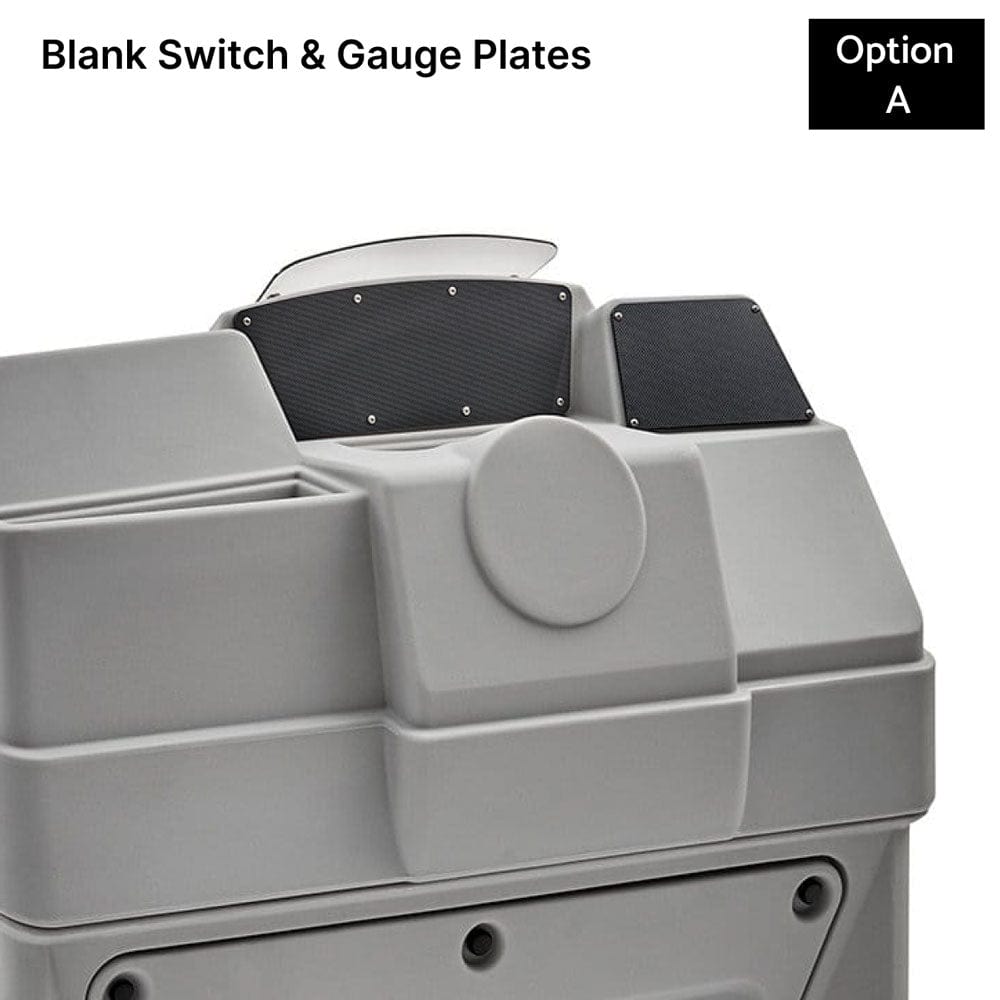

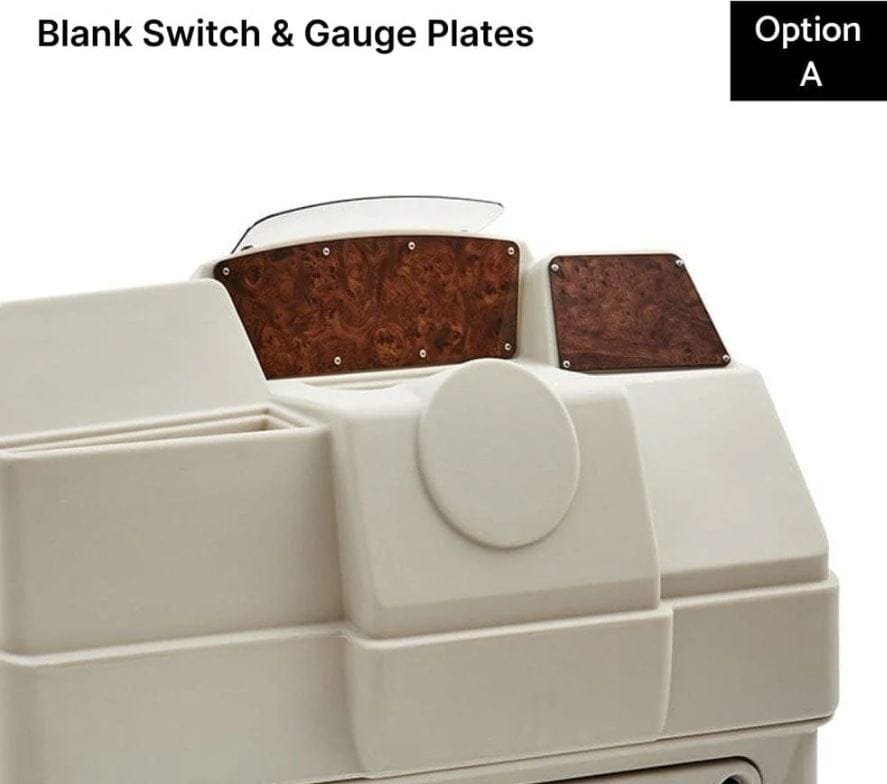

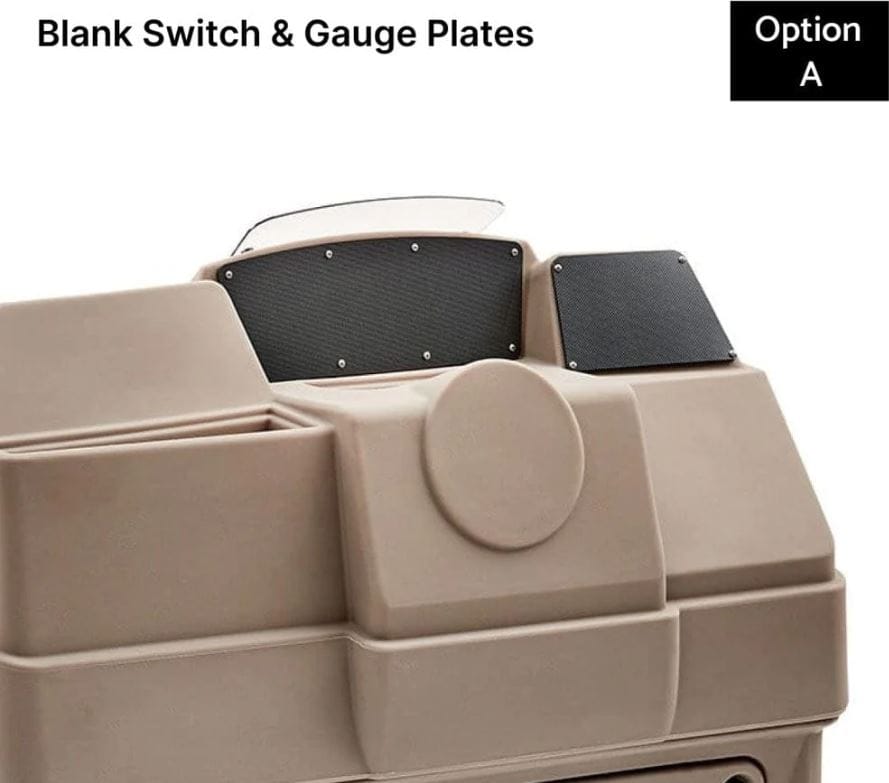

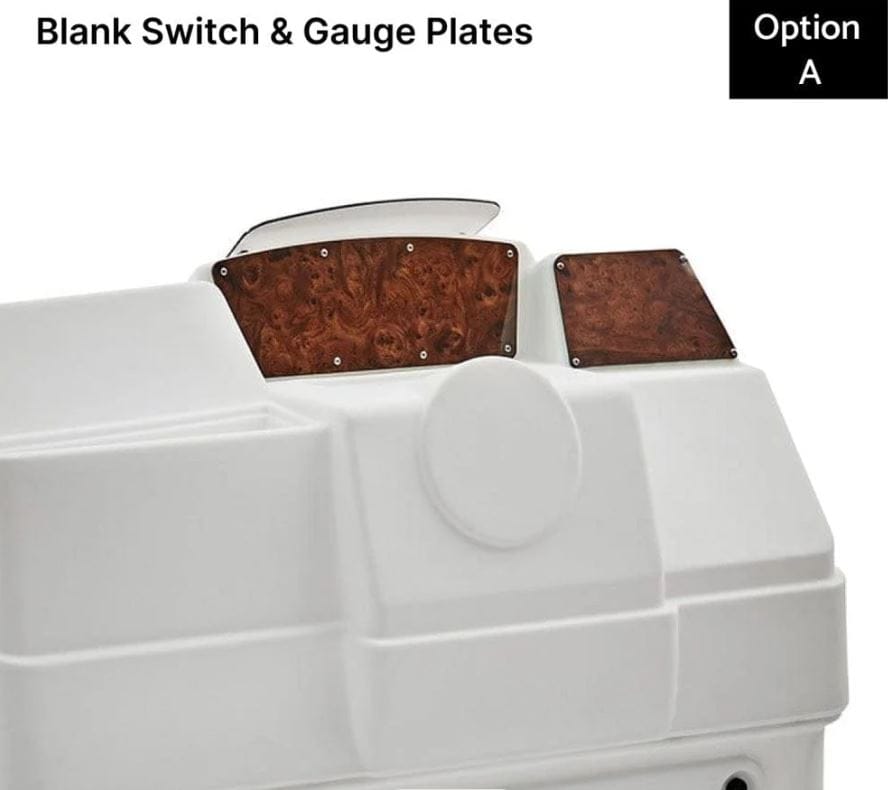

(A) Blank Switch & Gauge Plates

(B) Package Includes:

Deluxe Console Base & Windshield
Accent Panels (Carbon Fiber or Burl)
(B) Fully Wired Switch & USB Panel w/ Blank Gauge Plate

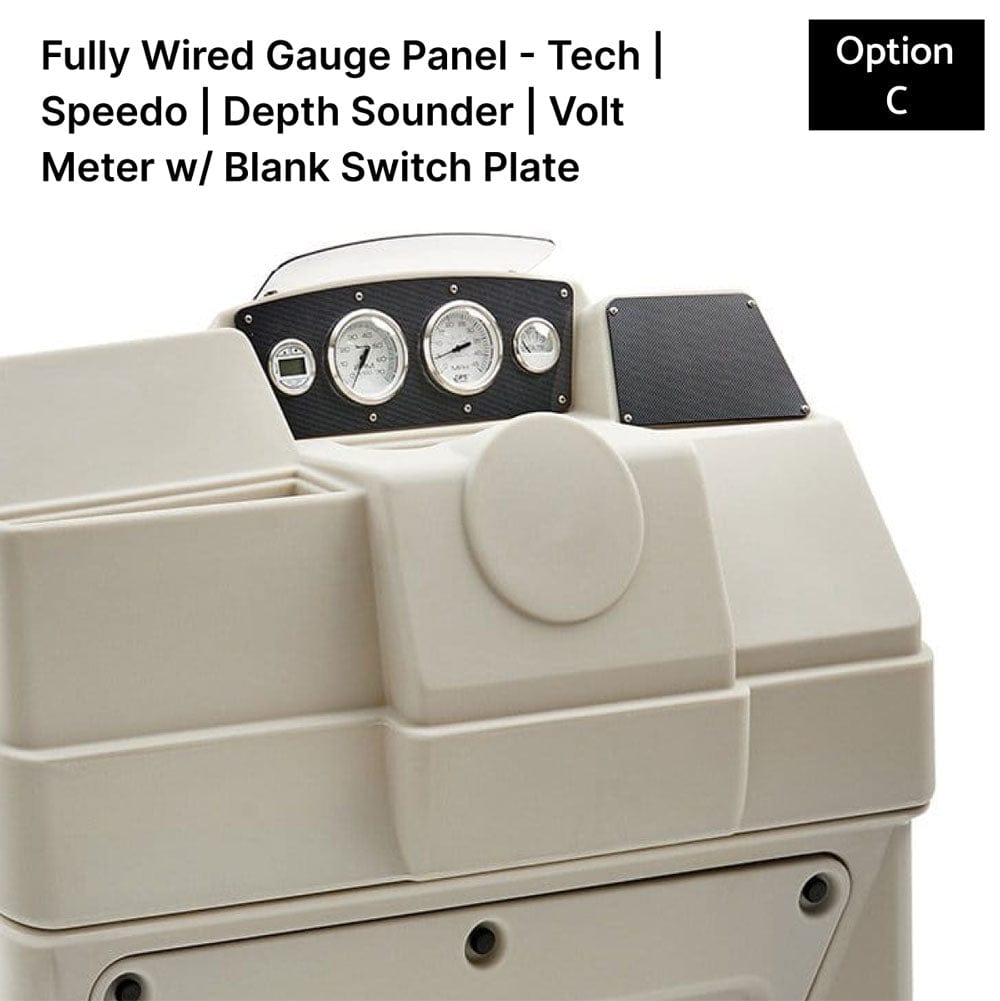

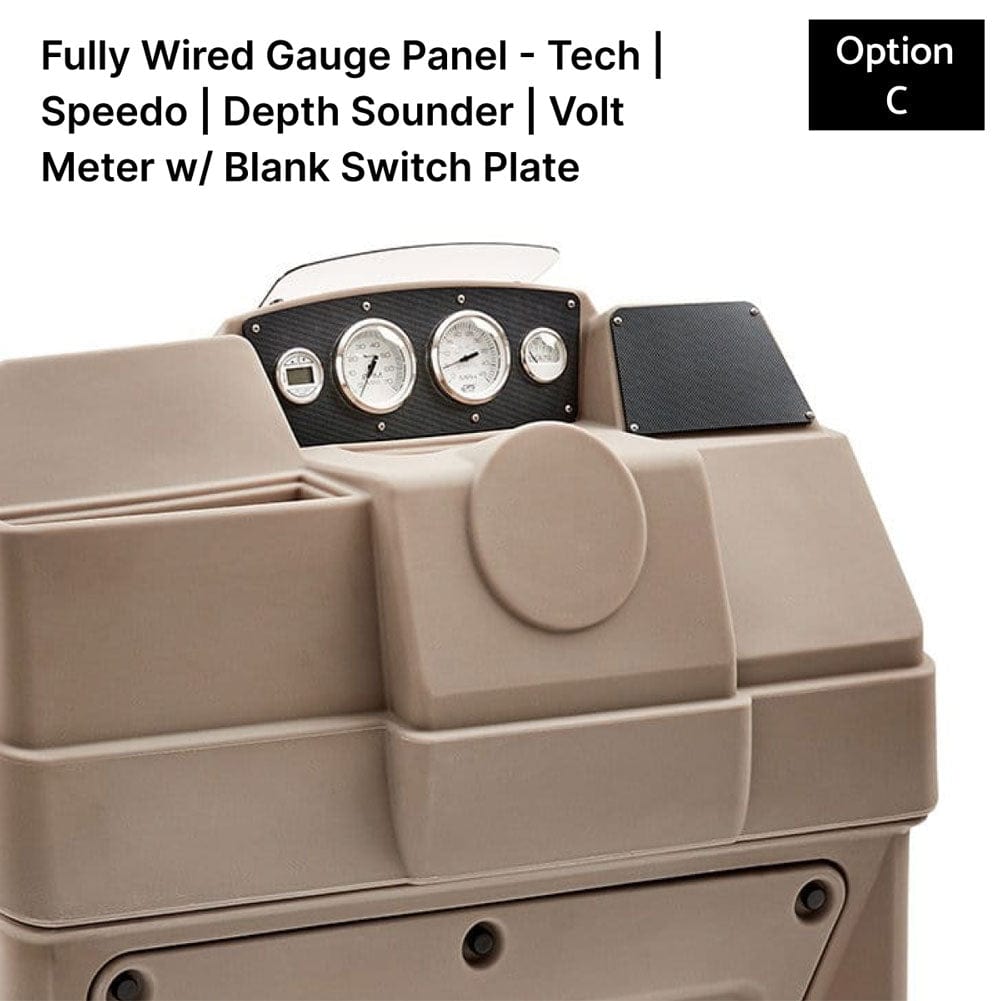

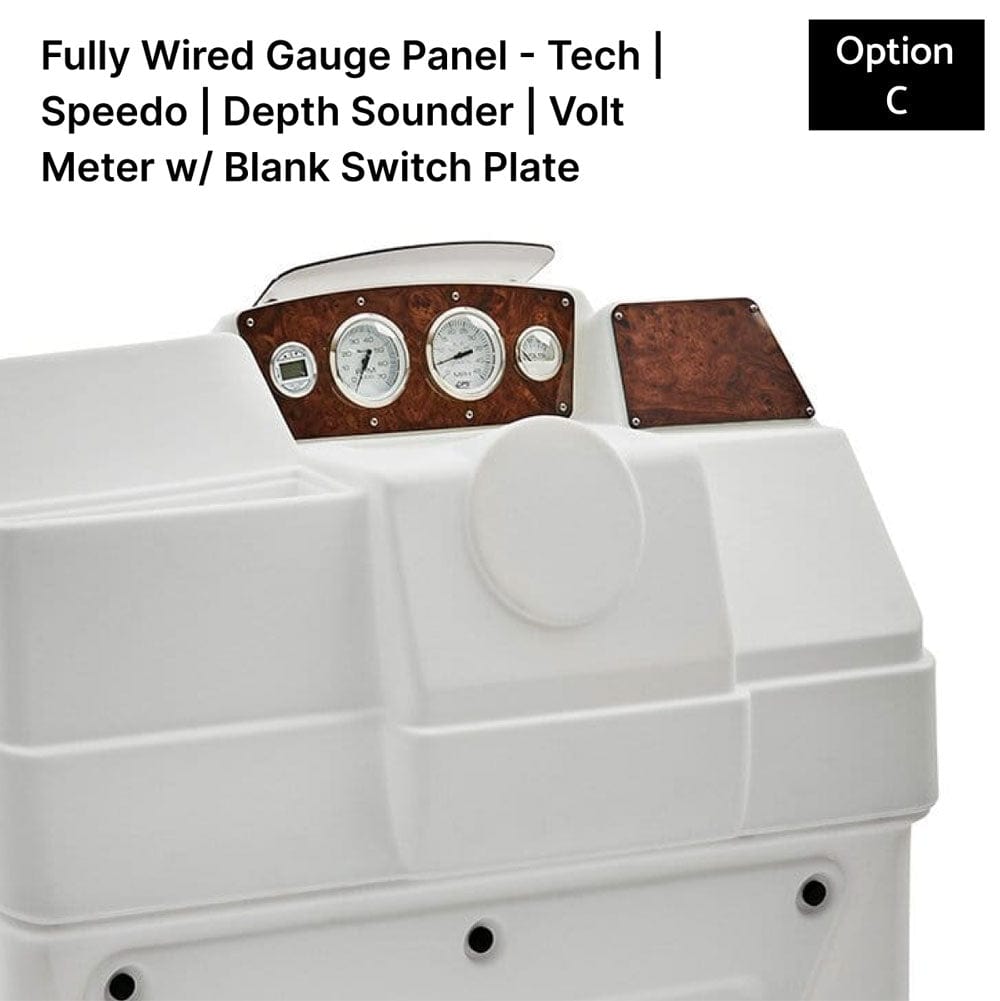

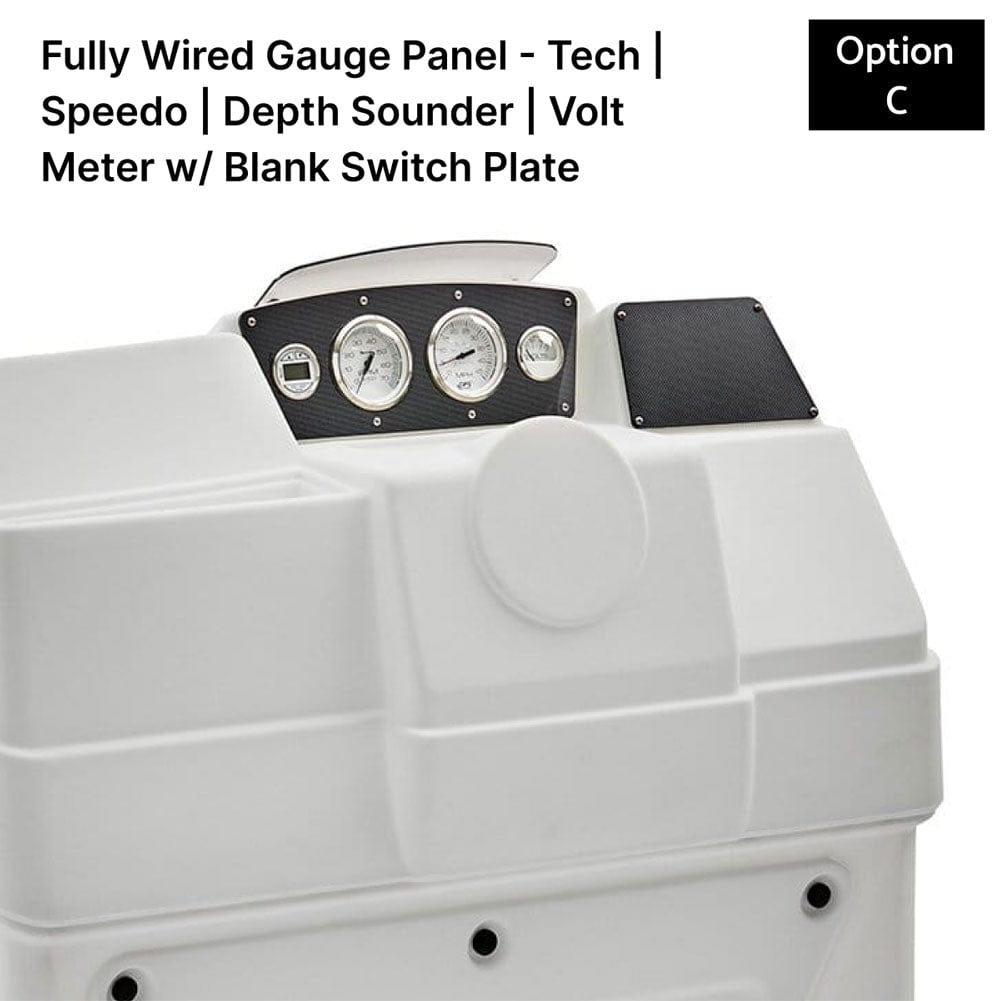

(C) Package Includes:

Deluxe Console Base & Windshield
Accent Panels (Carbon Fiber or Burl)
(C) Fully Wired Gauge Panel - Tach | Speedo | Depth Sounder | Volt Meter w/ Blank Switch Plate

Want to customize your console further? Shop our Pontoon Boat Consoles Parts Collection.

Dimensions:

41" Overall Console Width
38" Overall Console Height
21" Overall Console Depth
Removable access panel under dash allows you to bolt down top after you have installed all your steering and electrical items
2 piece rotationally molded plastic captain stand makes installation easy
If you add the gauge and switch panels, they will not be pre-installed.

Large Pontoon Console Assembly:

Take the 1/4-20 Stud Bolts and insert them in the T-Nut inserts located on the underside of the Large Helm Top. NOTE: Make sure you do not twist the stud bolts more than 2 - 3 full rotations.
Place the top of the top of the console on the base where the indent fits into the slots.
From the inside of the console, use the four (4) washers and four (4) wing nuts given to fasten the Large Helm Top to the Large Helm Base.
Once the Helm Top and the Helm Base are tightened, place the access door on with the three (3) Black Knobs to secure the door to the base.

Gauge Panel Instructions:

Download Assembly PDF

6 Year Warranty

Yes, we said 6 years! We fully stand behind the quality of our Deckmate™ products and want them to stand the test of time and water. Reference our warranty list.

See Warranty
