Luxury Pontoon Console (Deck Designer)

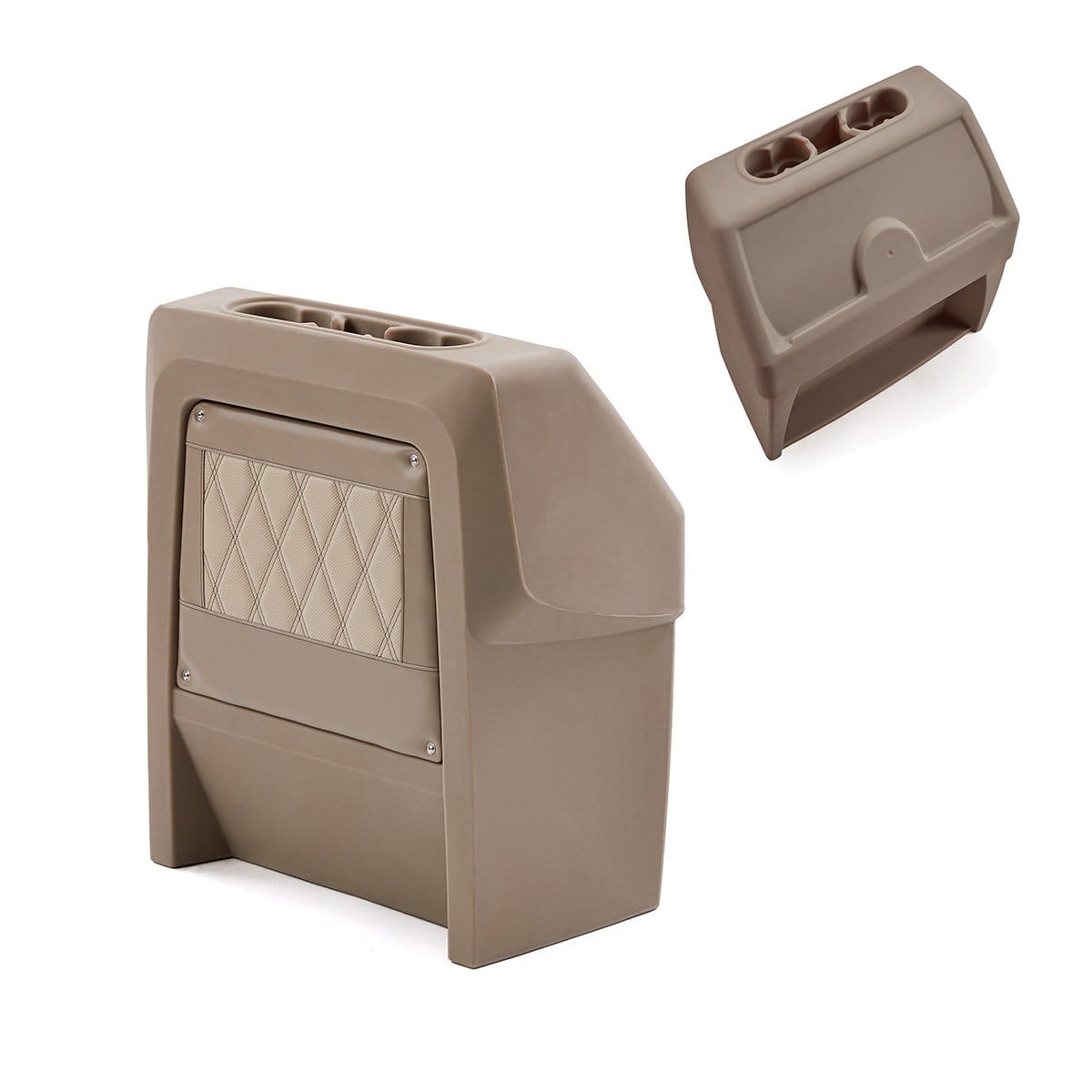

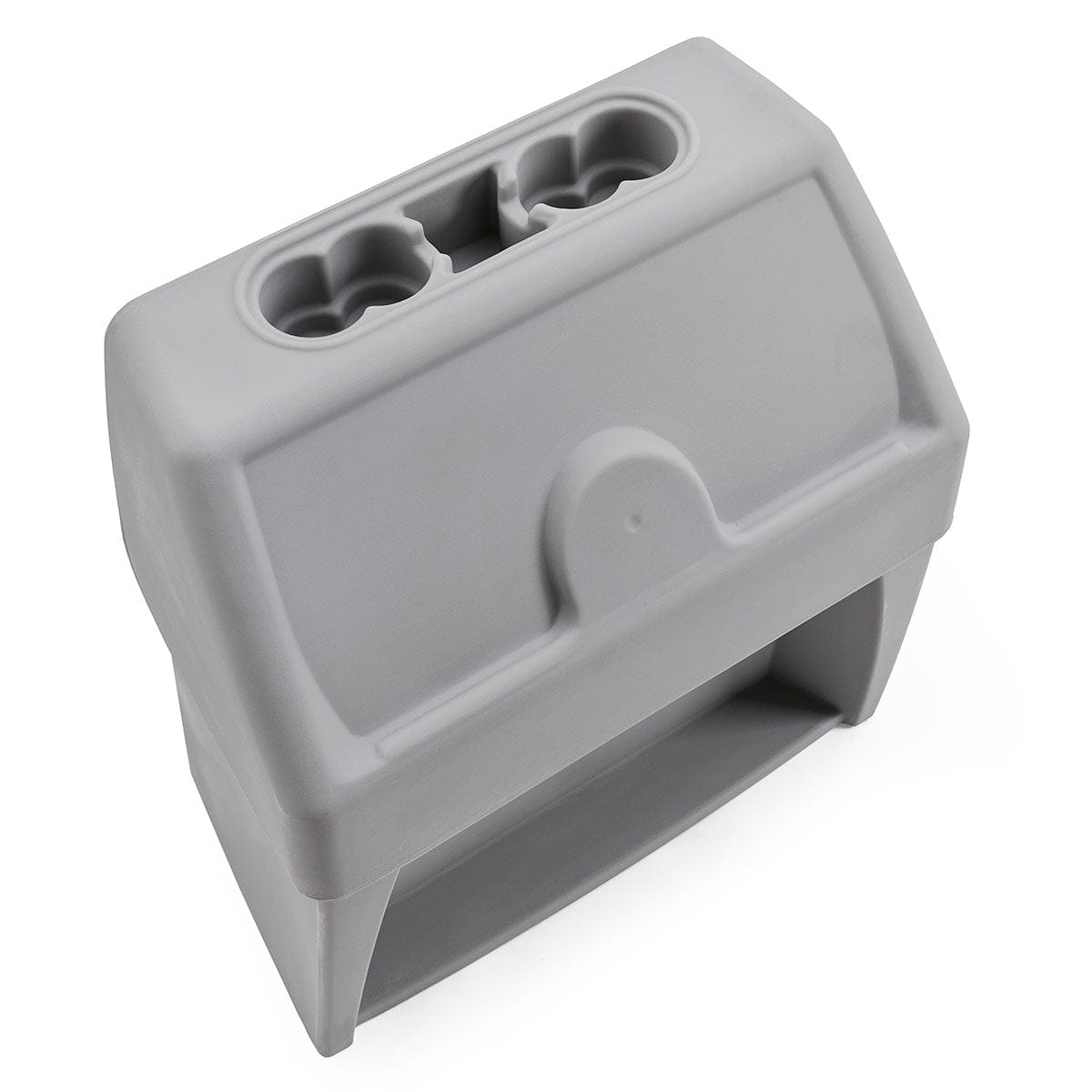

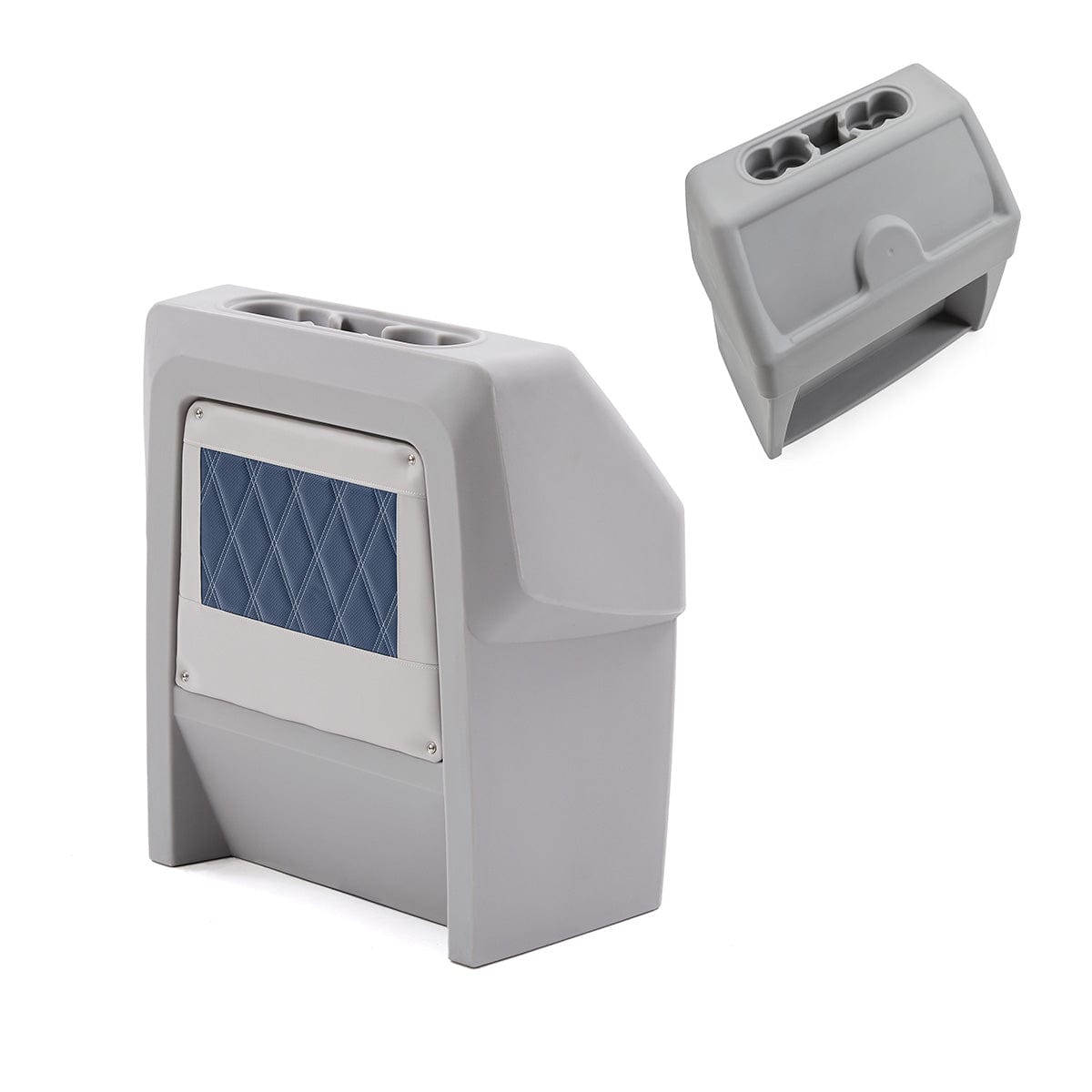

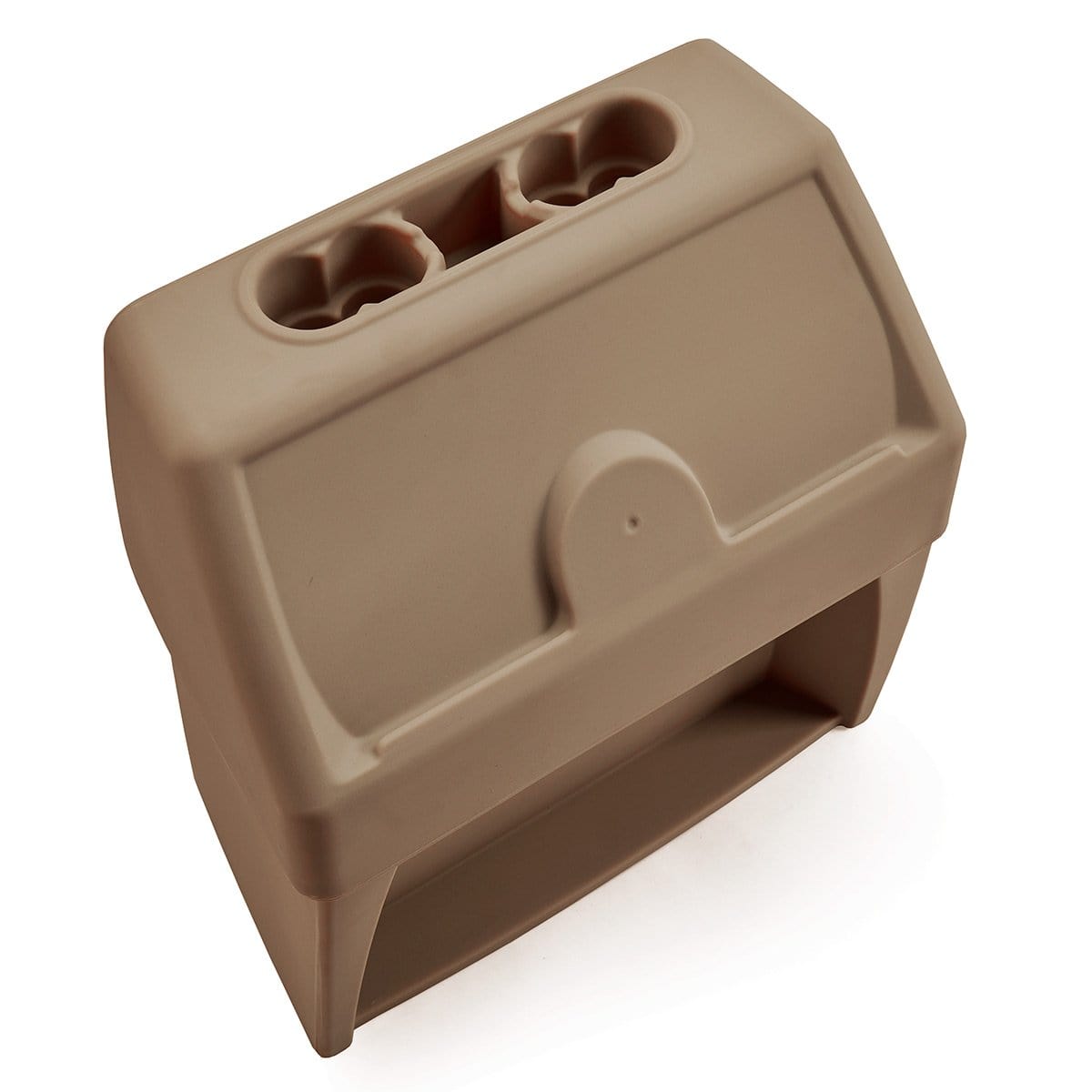

Luxury Pontoon Console Base

Upgrade your pontoon boat console. Match our Luxury DeckMate® seats perfectly.

The console base is made of weather-resistant plastic, and the access panel is covered in our 32oz marine-grade seat vinyl to match your seat color theme.

• No wood! All of our pontoon furniture frames are plastic. We use rotationally molded plastic bases.
• High-grade stainless steel hardware and staples are used on our pontoon consoles, along with t-nuts, which are inserted into the plastic bases to secure each pontoon seat cushion.


Parts List

• Helm base
• Matching Vinyl-wrapped access panel is on front of the helm

Add a fully wired Gauge and Switch Panel  ( not included )

https://www.pontoonstuff.com/products/gauge-panel-and-switch-for-sc1?_pos=1&_sid=cb40d0093&_ss=r

Want to customize your console? Shop our Pontoon Boat Consoles Parts Collection

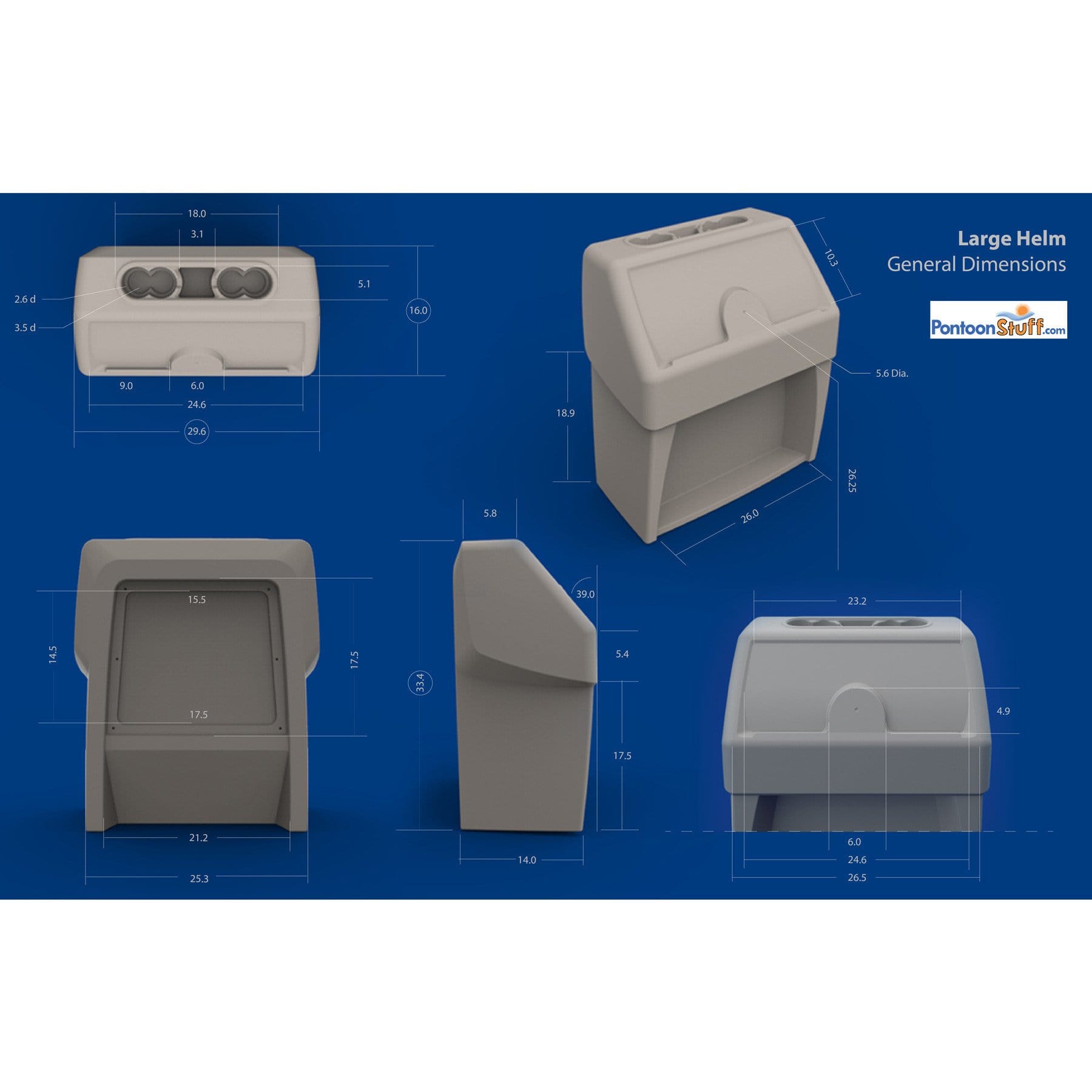

Dimensions

• Overall Console Width: 27"
• Overall Console Depth: 15"
• Overall Console Height: 33"

Total Console Weight: 35lbs

Instructions

1. With the screws included, mount the Pontoon Boat Console to your Pontoon Deck
2. Once the Pontoon Console is attached to the floor of the boat, take the vinyl-wrapped access panel and attach the four (4) screws to the corner of the console opening
3. This will cover up the opening to give you a finished looking Console

Gauge Panel Instructions

Download Assembly PDF
