Premium Deluxe Pontoon Console | 3D Builder Package

Carbon Fiber Package Includes:

• Deluxe Console Base
• Carbon Fiber Accent Panels
• Carbon Fiber Deluxe Comfort Wheel
• 8 Switch Panel with fully wired Switches, USB, and Circuit Breakers
• Gauge Panel with fully wired Tach, GPS Speedo, Depth Sounder, Volt Meter

Burl Wood Package Includes:

• Deluxe Console Base
• Burl Wood Accent Panels
• Burl Wood Deluxe Comfort Wheel
• 8 Switch Panel with fully wired Switches, USB, and Circuit Breakers
• Gauge Panel with fully wired Tach, GPS Speedo, Depth Sounder, Volt Meter

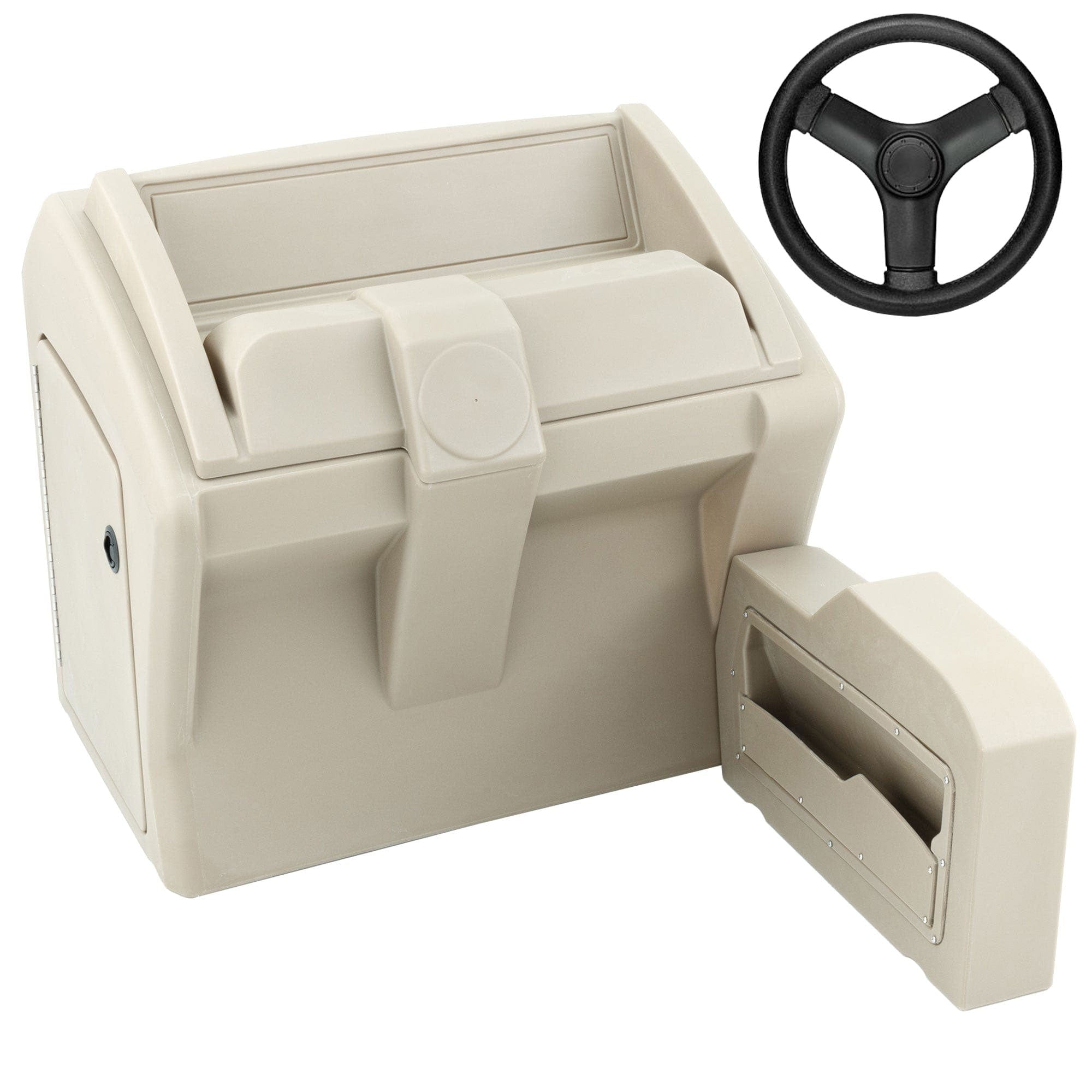

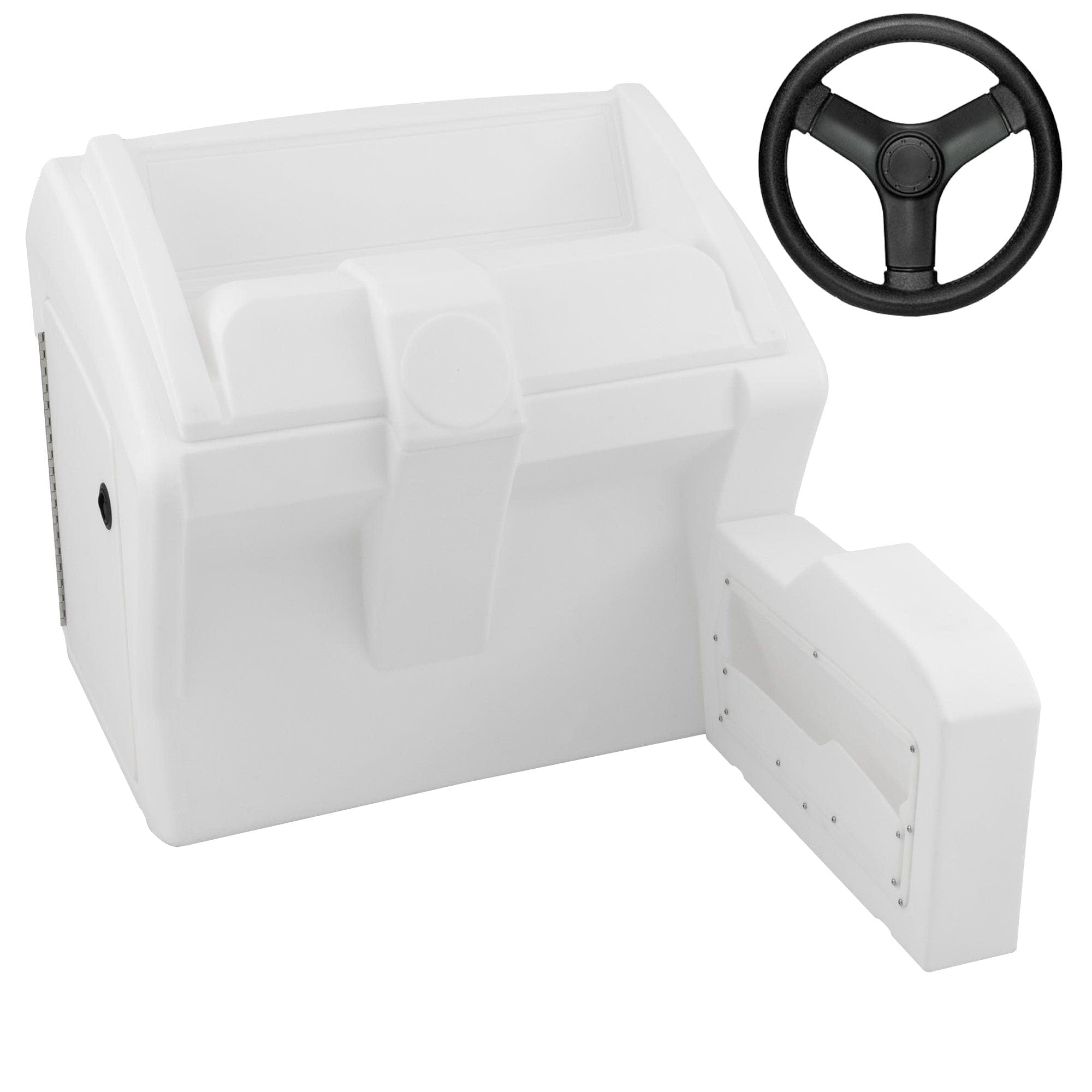

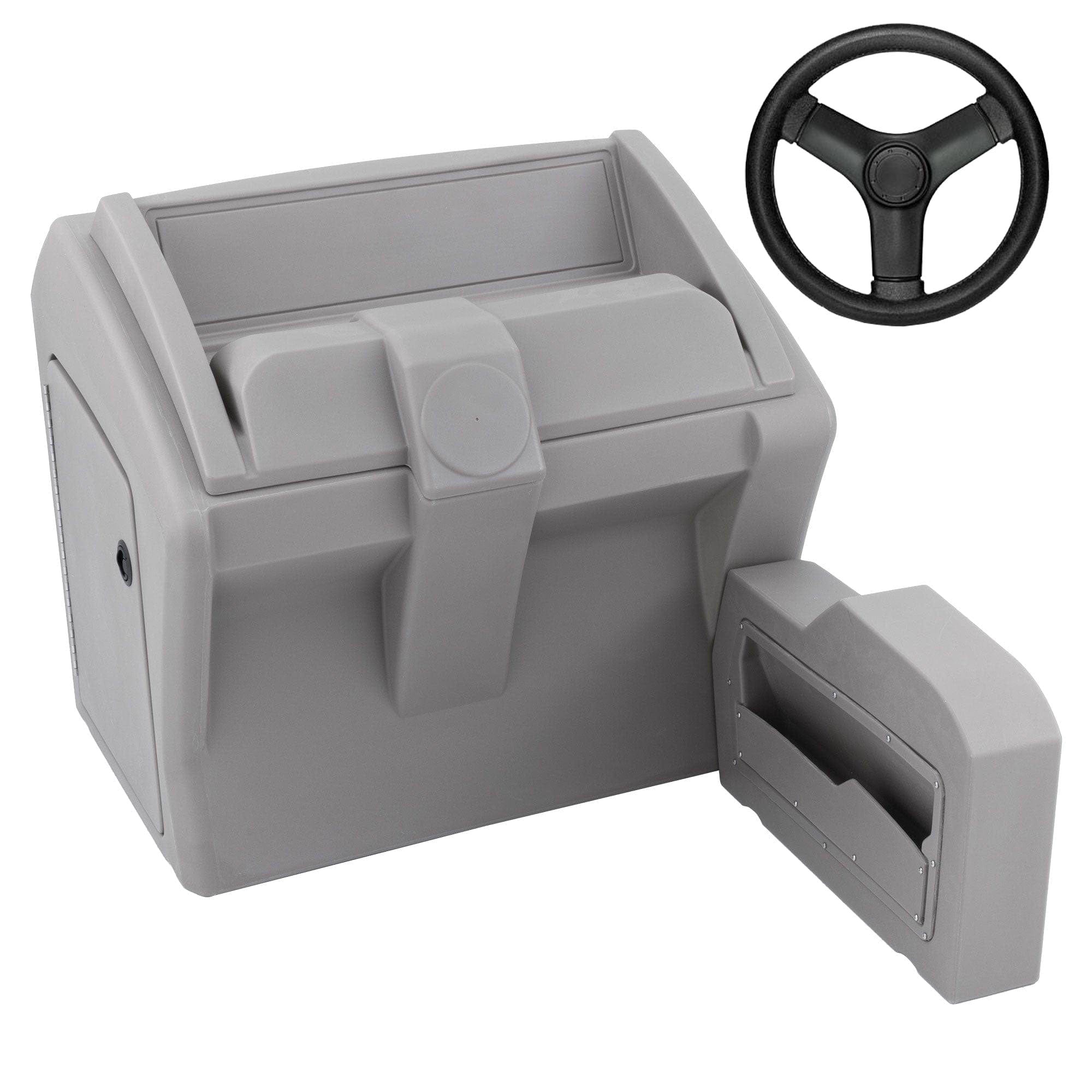

Black Steering Wheel Package Includes:

• Deluxe Console Base
• Black Steering Wheel
• No switch or gauge panels included

Want to customize your console further? Shop our Pontoon Boat Consoles Parts Collection.

Dimensions:

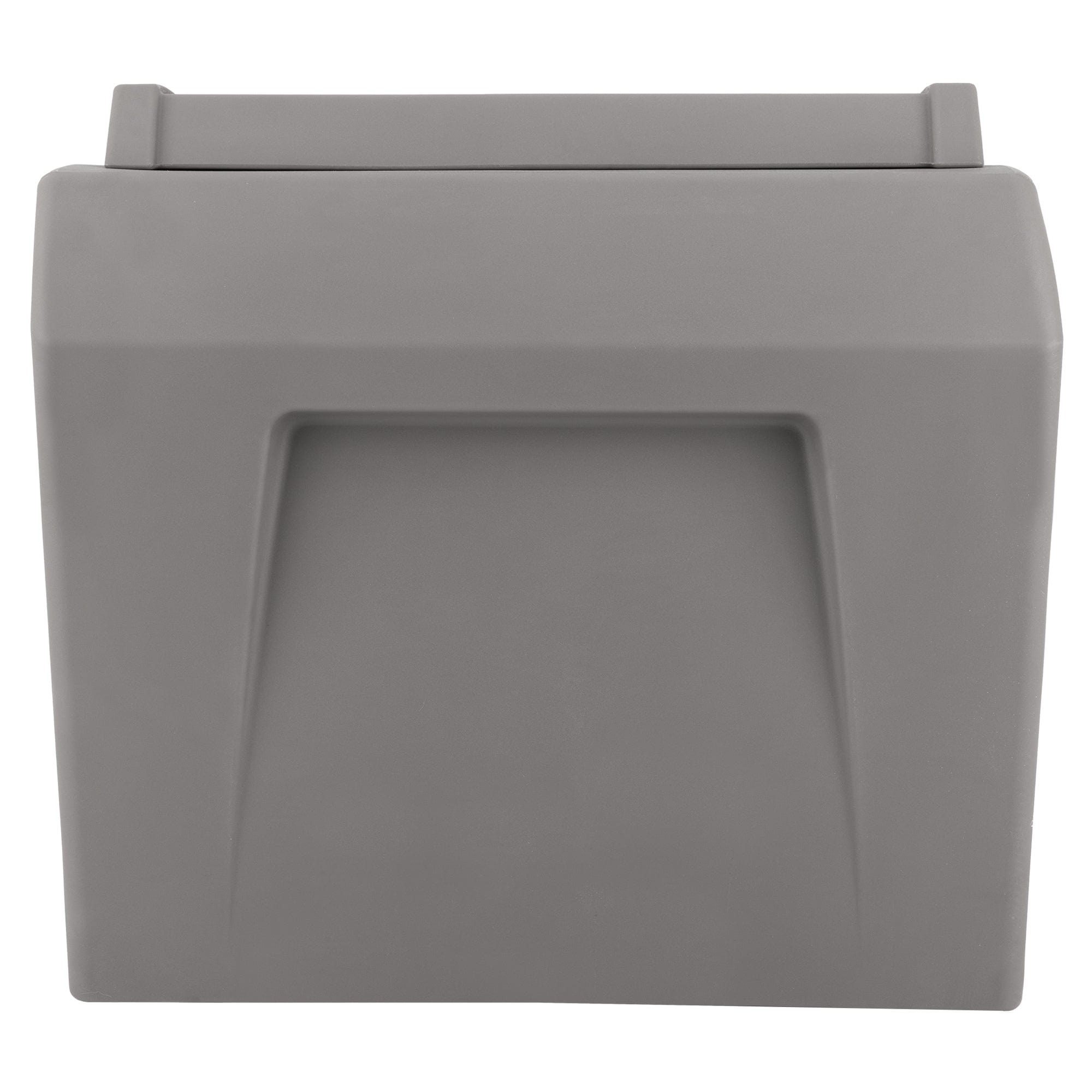

Console

• 36" Overall Width
• 34" Overall Height
• 28" Depth (without side storage )
• 48" total depth with side storage
• Side Door opening:  16" wide by 19" tall
• Steering wheel height: 48" (centered)

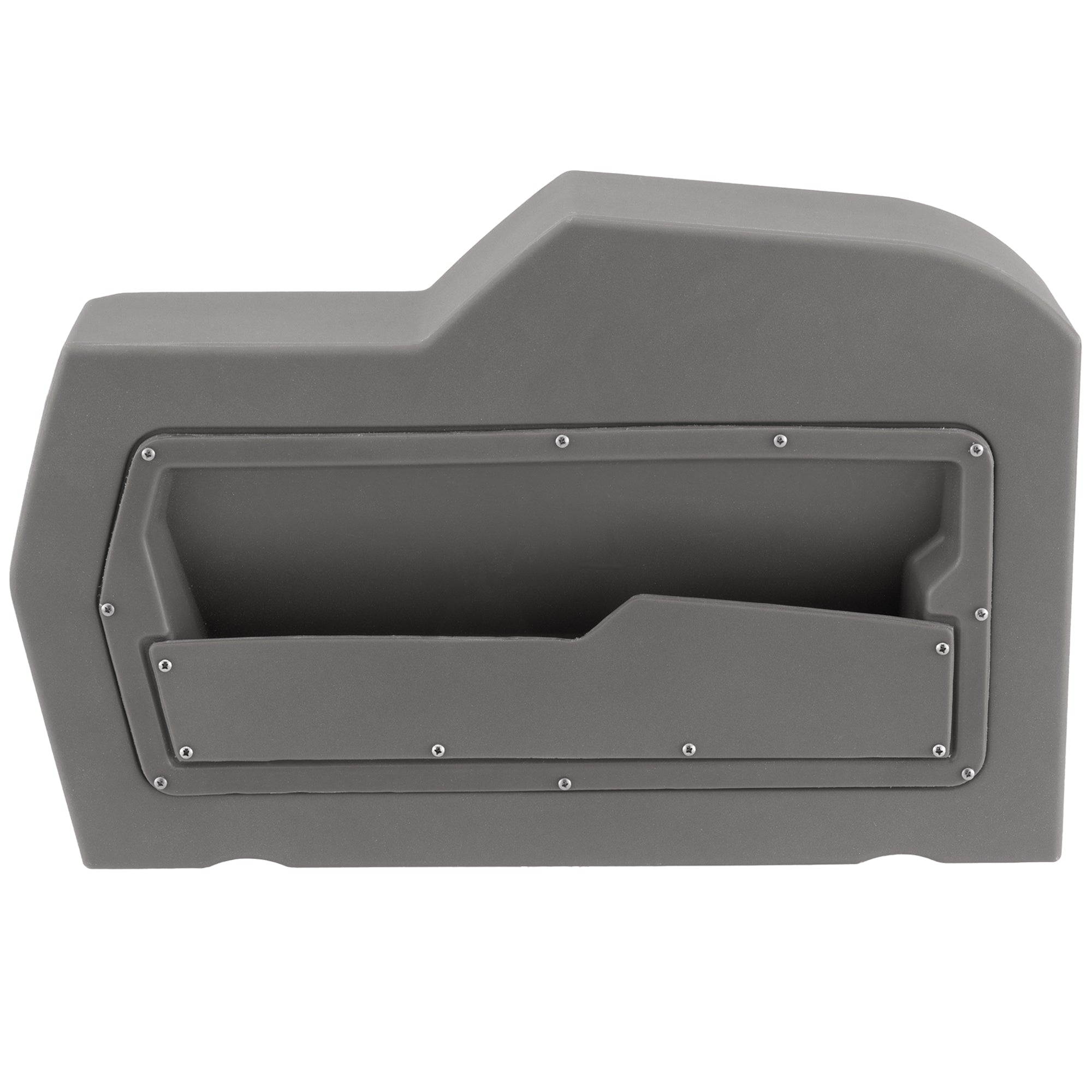

Side storage

• 5" overall width
• 16" overall height
• 25" depth

Instructions

1. Take the 1/4-20 Stud Bolts and insert them in the T-Nut inserts located on the underside of the Large Helm Top. NOTE: Make sure you do not twist the stud bolts more than 2 - 3 full rotations.
2. Place the top of the console on the base where the indent fits into the slots.
3. From the inside of the console, use the four (4) washers and four (4) wing nuts given to fasten the Large Helm Top to the Large Helm Base.
4. Once the Helm Top and the Helm Base are tightened, place the access door on with the three (3) Black Knobs to secure the door to the base.

Gauge Panel Instructions

Download Assembly PDF
