Woven Vinyl Pontoon Flooring Kit
NOTE: This adhesive will not work if you are trying to install vinyl flooring to an aluminum or fiberglass deck. You will require a solvent based glue for this application, water based glue needs to evaporate in order to form a bond and the vinyl with an aluminum/fiberglass deck will not allow the necessary airflow for bonding. You can find solvent based indoor/outdoor glue at any home improvement store.
We will not ship glue if the temperature is under 32 degrees. We will ship once there is a break int he weather and we are able to do so.
Everything To Replace Your Flooring But The Plywood!
Pontoon boat vinyl flooring kits come with the marine grade vinyl flooring you need plus parts and accessories that will make your flooring project easy. PontoonStuff® created the idea of carpet and flooring kits so that you would have the right supplies for your restoration project. We supply you with the same hardware and flooring used on new pontoon boats.
- Need To Buy A Pontoon Decking Kit? Click Here.
What's In The Pontoon Vinyl Flooring Kit
- Syntec Woven Vinyl Flooring

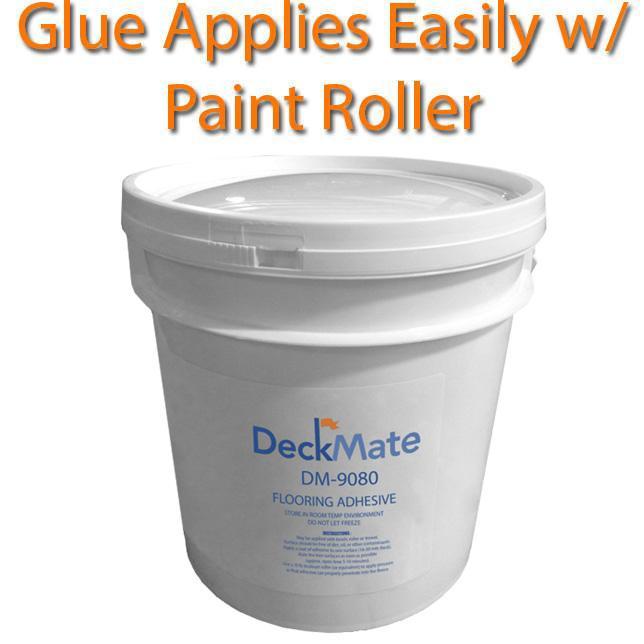

- 2-3 gallons of vinyl glue (16'-25' kits include 2 gallons, 30' kits include 3 gallons).

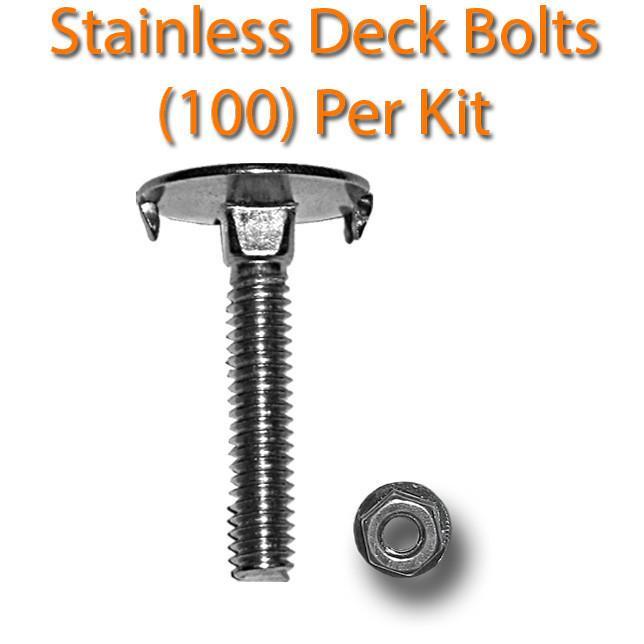

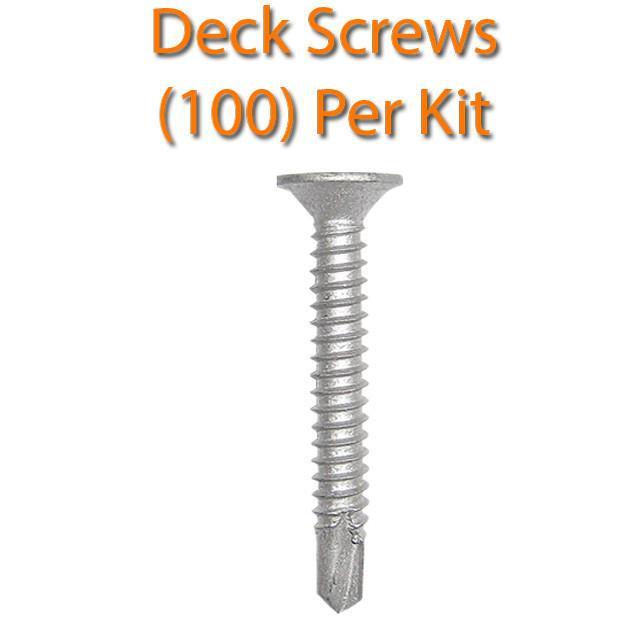

- (100) deck fasteners, choose from self-tapping screws or stainless bolts.
- (32) pontoon fence risers lift your railing off the carpet (no dirt around your rails).

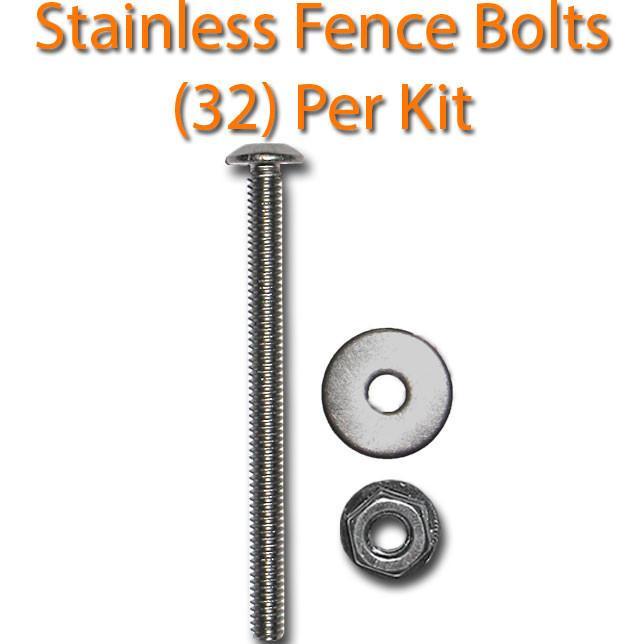

- (32) stainless pontoon fence bolts to fasten your railing back down to your flooring.

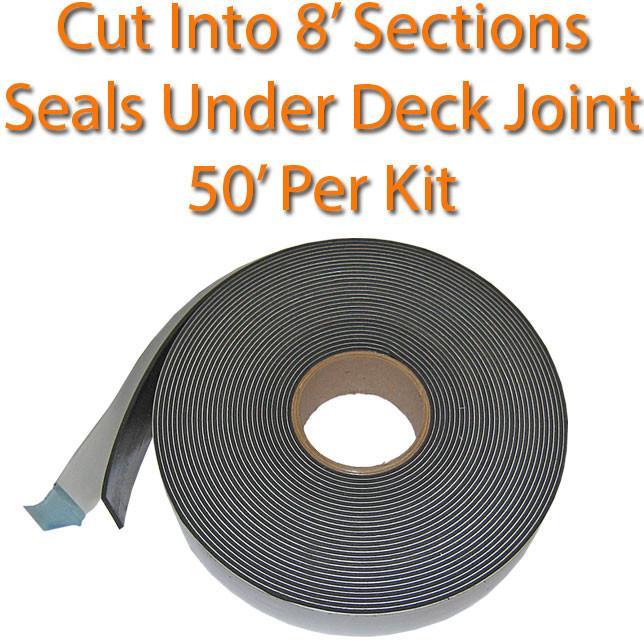

- 50' roll of deck seam tape, lay over each cross member to seal under plywood joints.
- Space your deck screws or bolts 16" apart when securing your decking.
- Apply adhesive to your deck using a medium nap paint roller.
- Use a roller or stiff broom to firmly press your new vinyl flooring down into the glue.
- Install your fence risers under each bolt that secures your railing to the deck.
- Cut the deck seam tape into 8' sections and lay it on top of the aluminum cross members connecting your tubes. The deck seam tape seals the joints where your plywood comes together, preventing water from working its way up under your vinyl flooring.
Pontoon Vinyl Flooring Specs
- Stain-resistant and easy to clean
- 3000 hours of UV stability means your new flooring wont fall apart in the sun.
- Mold, mildew resistant marine grade vinyl.
- 140 mil marine grade vinyl flooring.
Worry-Free Marine Vinyl Warranty
- We will cover any labor and flooring for up to 5 years, and then offer a 10-year warranty on just the Woven Vinyl Flooring.
- Warranty covers any fading, deterioration or cracking.
- Please remember that this style of vinyl flooring is designed to be glued completely to the deck of your boat.
- If you do not use the proper amount of glue the backing will not stick to the deck and will deteriorate quickly.
Care & Maintenance
Nothing is easier to maintain and clean than our vinyl boat flooring. Once installed you'll have a great looking deck without the maintenance required by carpeting. Vinyl flooring will also protect your plywood deck from moisture.
How To Replace Your Pontoon Flooring
- Check out our pontoon forum for complete pontoon restorations and learn how to replace the deck and carpet on your pontoon.
Q: How do I install new vinyl flooring on my pontoon boat?
A: In order to install your pontoon vinyl flooring, you must remove all of the old carpeting and adhesive from the deck of your pontoon. Also, it is important to fill any voids or delaminated areas on your existing deck with wood putty or fiberglass filler. If you do not remove the old carpet and glue or if you do not fill the voids in an existing deck you will feel the imperfections under the flooring and most importantly any left over adhesive may interact with the new glue, preventing it from bonding with the back of the vinyl.
If your deck is clean and the surface area is ready for the new vinyl flooring covering then read on, if you are having difficulty removing your old carpet please see below where we discuss the problems you may run into.
Before applying any glue to your deck, roll your new pontoon vinyl flooring out completely over the deck of your boat so that you can inspect it. Occasionally, vinyl flooring will have imperfections in it which we may miss or it can get damaged in shipping; now is the time to discover any problems. Do not glue your vinyl floor down before you inspect it. Call us immediately if you have any problems so that we can replace the vinyl flooring for you. Once you have the vinyl rolled out and it looks good, fold it in half the length of the deck. For example, if you have a 20' pontoon boat, get in the front of the boat and fold the vinyl over width-wise and do the same in the back, leaving a 4' wide by 20' long section of your deck exposed. Your vinyl flooring will be folded on top of itself on the other side of the deck so that you can apply glue to half of the decking.
By folding the floor covering this way it makes installation much easier, you can apply the glue by standing on the side of the pontoon, without needing to get on your hands and knees. Each gallon of glue will cover a 8' x 12' area, so if you have a 16-24' pontoon boat use one gallon per side, if you have a 25-30' pontoon you will need a total of 3 gallons of glue and will use 1-1/2 gallons per side. Take your first gallon and dump it evenly across the exploded 4' x 20' wide section of the deck. Using a medium nap paint roller spread the adhesive over the deck and make sure that there is full coverage with no empty areas. Be sure to spread glue as far into the center when the flooring is flipped to one side so you don't end up with any areas that are not covered with the glue. Once the glue is applied, lay the vinyl floor out over the entire deck and make sure it is flat and squared up. You will not have much time to work with the vinyl once you lay it on the glue, so be sure it is lined up on the deck properly before you begin applying the glue.
Next you must compress the vinyl flooring onto the lines of glue. The polyester backing will bond to the glue when apply pressure, forming a bond which will hold the vinyl flooring in place once the glue hardens. Use a heavy roller, you can rent a carpet roller or use a heavy pipe to press the carpet down onto the glue. This is the most important step, if you do not press the flooring down hard enough the glue and backing will not bond together, causing it to come up or creating lines and bubbles in your new pontoon flooring.
Q: How do I remove the old carpet? What if it doesn't come off easily or only comes off in small chunks?
A: If your pontoon boat is a 2000 model year or newer, you may experience difficulty when removing the carpet. Newer pontoon boats use a heavier carpeting and a stronger glue than was used in the 70's, 80's and early 90's. Boat builders applied special marine adhesives that provide excellent adhesion and heavier backed carpeting than you see on the older model pontoons. Also, since these boats are newer the carpet and glue have not deteriorated to the point where it is easy to remove them. On most older pontoon boats the carpet will come off fairly easily with some scraping, cutting and tearing. If you find that your pontoon carpet is only coming off in small chunks and that you cannot seem to remove the old adhesive and fibers you can try renting a floor sander or simply replace the decking.
To remove the decking without taking up the carpet, if you choose to replace the flooring, here is how you do it. First, find the seams where the plywood decking meet up, take a razor knife and cut across the floor separating the carpet on each sheet of plywood. If the plywood deck is bolted down, cut the heads off the bolts under the deck and rip the decking off. If the deck is screwed down, use a hole saw and locate the screw heads, cut around each head and tear the decking off. Then use a sawzaw to remove the screws and plywood plugs that are left over. You may find that the cost of the plywood is worth it compared to the time and energy you will spend trying to remove carpet that won't come off.
QUESTIONS & ANSWERSAsk a Question
Can you seal your decking with water sealant before gluing new vinyl down?
We do not recommend using any sealant on your decking as our water based glue will not bond once sealed.
Is it ok to cut a hole in the woven vinyl flooring for the wiring? It won’t fray or unravel will it?
Yes you can cut a hole in the woven pontoon flooring. I would recommend taping the area first to ensure it will not fray.
My boat is 25' long, but the actual deck area is 20'. Am I correct in that I want the 20' kit for this application? Do the vinyl kits that do not include the plywood ship via FedEx freight or just a standard shipping service?
If your actual Deck Is 20' in length then you would want to get the 20' Woven Vinyl Flooring kit for your application. If the kit you're purchasing does not include plywood it will ship normal FedEx residential delivery.
